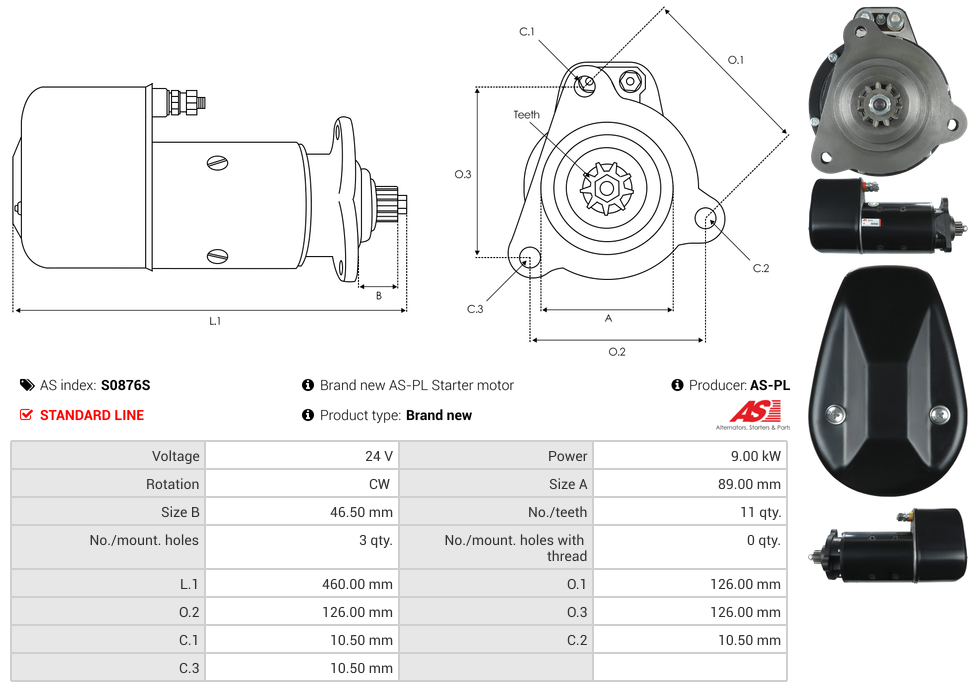

Specifications
| Kilowatt | 9 kW |
| Length (L.1) | 460 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 46.5 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Engine | 01.1994- |
Reference Information
CST10753AS PRSF521 UD16941S 20401357OE MAV127530 20401357BN BOS0001510009 254954 45-3108 1510006 STB1519 S0876S STR1780 LRS1944 CST10753GS 0001510009 MAV127530A 1510009 551.218.113 LRS01944 6010753 6010753.1 0001510006 STRF521Video/Publications
0001510006 0001510009 20401357BN 20401357OE 254954 45-3108 551.218.113 6010753.0 6010753.1 BOS0001510009 CST10753AS CST10753GS LRS01944 LRS1944 MAV127530 MAV127530A PRSF521 STB1519 STRF521 UD16941SAdd Your Number
