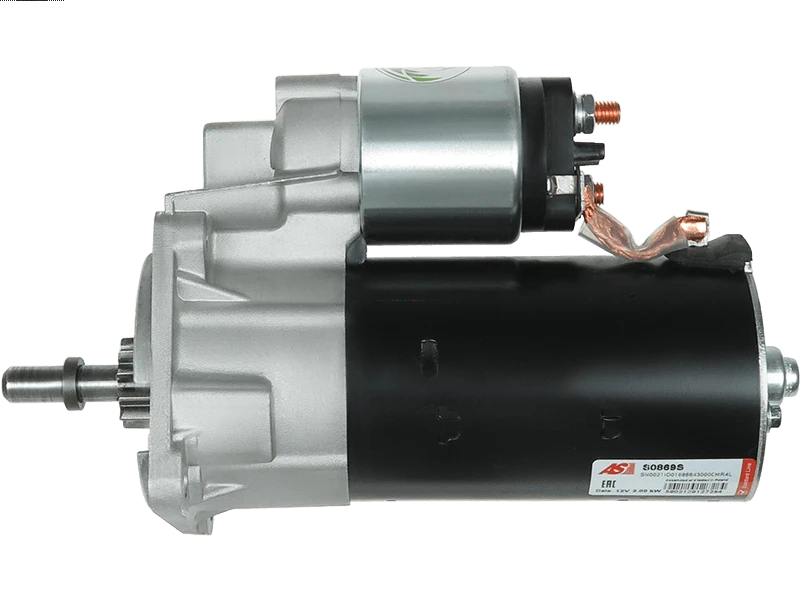

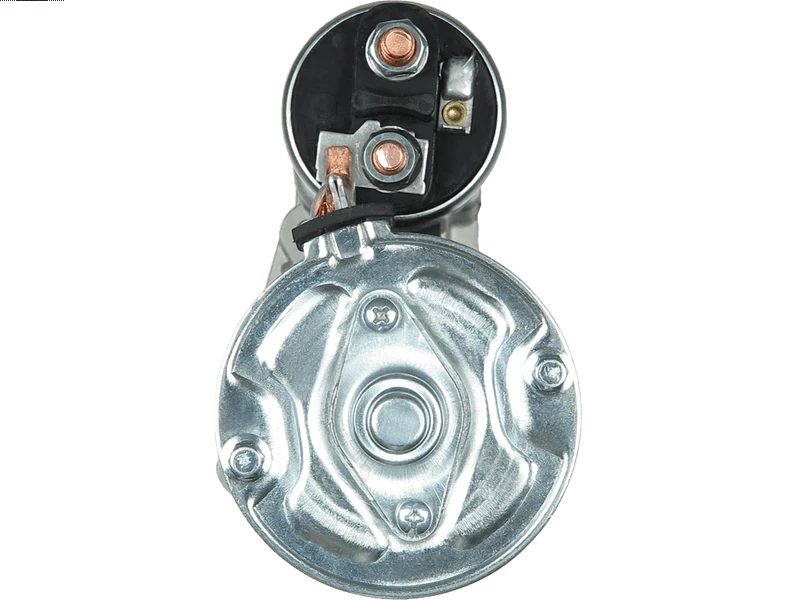

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 314.88 including GST
NZ$ 273.81 excluding GST
or four payments of $78.72
with
Learn More
each
S0869S
No stock in NZ currently
No stock in NZ currently
Information
0001109049Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 255 mm |
| Mount Hole Center - Center (O.1) | 74 mm |
| Mount Hole Center - Center (O.2) | 74 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FARYMANN | Engine 0.7 |
Reference Information
| 0001109049 | BOSCH |
| 0001317024 | BOSCH |
| 120-10127 | ROBERT'S |
| 520.501.113 | PSH |
| 520.501.113.018 | PSH |
| 520.501.113.312 | PSH |
| BOS0001109049 | WOODAUTO |
| S133.307 | PSH |
| S144.291 | PSH |
| STR1508 | ELECTROLOG |
| UD16901S | AS-PL |
| UD47732S | AS-PL |
| UNIT BOM 120-153A | WAI / TRANSPO |
Video/Publications
