S0861S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 887.86 including GST

NZ$ 772.05 excluding GST
each
S0861S
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

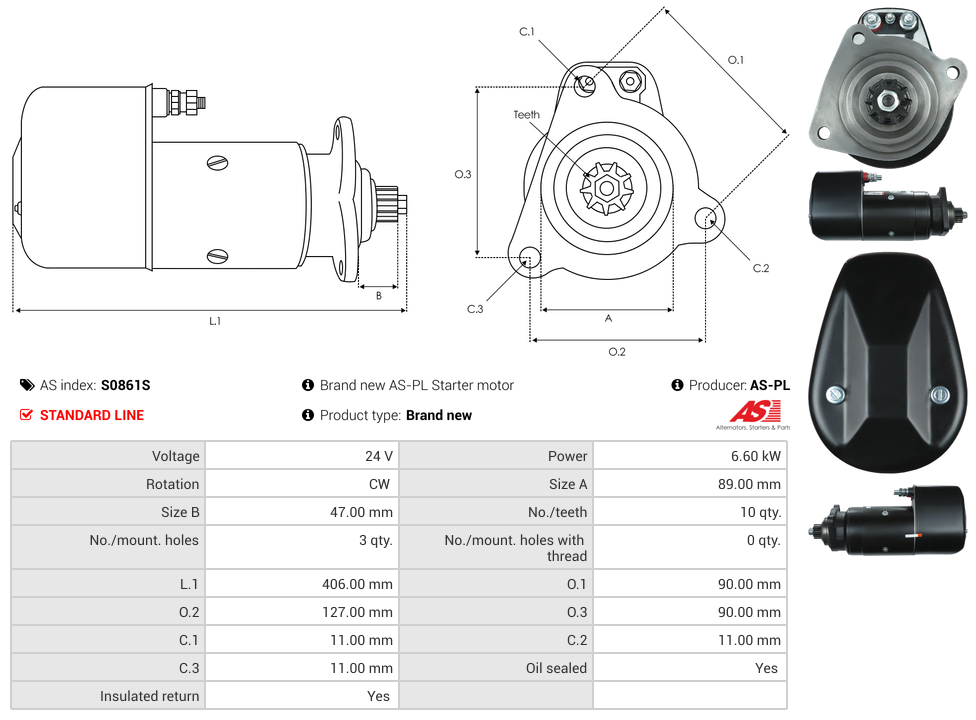

Insulated EarthYes
Kilowatt6.6 kW
Length (L.1)406 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
Oil SealedYes
Pinion at Rest (B)47 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeBOSCH
Voltage24 V
Make Model Type Year
BAUDOUIN Engine [DF12] 01.1969-12.1981
BOM 1411019 260-47285 771.203.103 UNIT 11.139.086 MS UD16634S 0001411019 72736103 255199D MS475 STR50546 475 STB1557 0001417018 AZK5438 120-6286 1417018 STR79516 19024060 IS9077
0001411019 0001417018 11.139.086 19024060 255199D 260-47285 72736103 771.203.103 AZK5438 IS9077 MS 475 MS475 STB1557 STR50546 UD16634S UNIT BOM 120-6286
