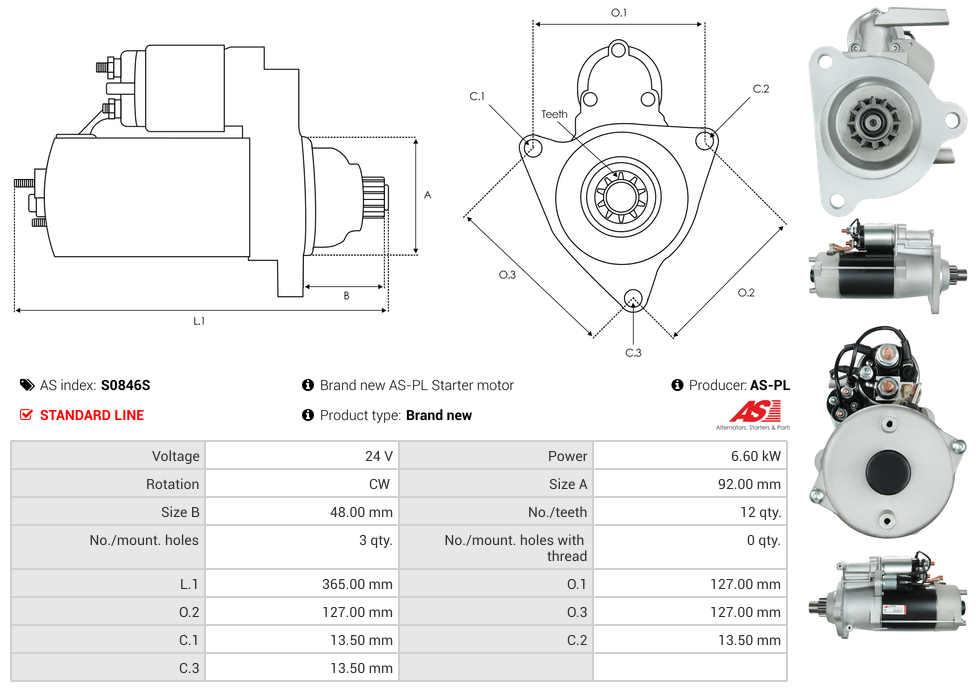

Specifications
Kilowatt | 6.6 kW |
Length (L.1) | 365 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 127 mm |
Mount Hole Diameter (C.1) | 13.5 mm |
Mount Hole Diameter (C.2) | 13.5 mm |
Mount Hole Diameter (C.3) | 13.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 12 qty |
Pinion at Rest (B) | 48 mm |
Rotation | CW |
Spigot Diameter (A) | 92 mm |
Unit Type | BOSCH |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
MAN | Various Models |
Reference Information
6010847 331916 20401748BN STR1871 MAV128470A 00010GA0VE 1330003 STR50611 UD16922S 00000010GA0VE 0001330003 S0846S 51262017170 CST10847AS 51262017172 551.538.123Video/Publications
00010GA0VE 0001330003 51262017172 551.538.123 S0846S STR50611 UD16922SAdd Your Number
