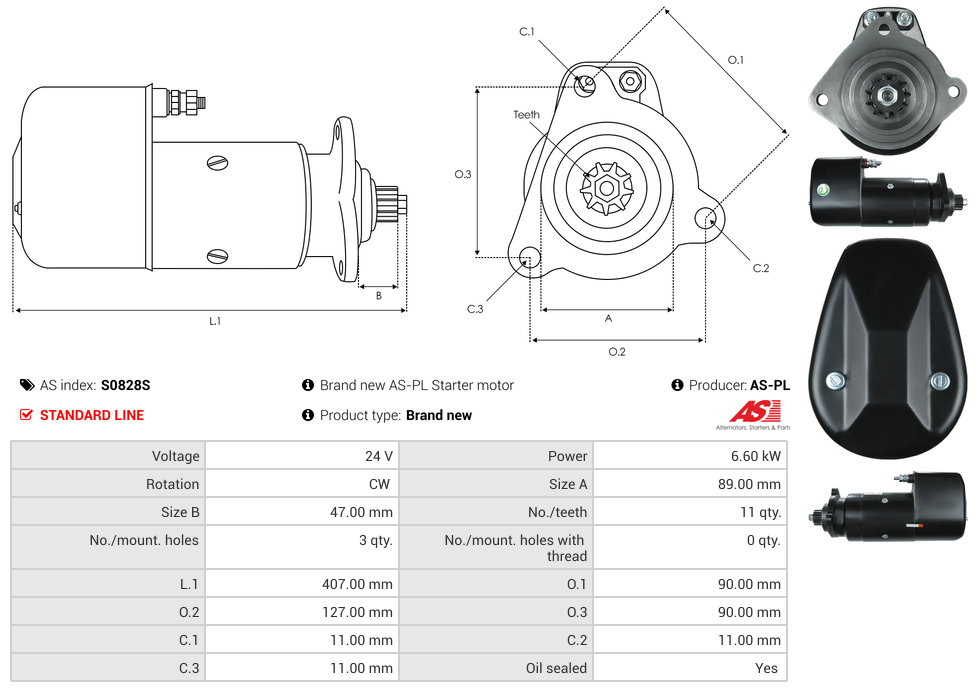

Specifications
Kilowatt | 6.6 kW |
Length (L.1) | 407 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Oil Sealed | Yes |
Pinion at Rest (B) | 47 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | BOSCH |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
VOLVO | Various Models |
Reference Information
STB2123 UD16649S 1417093 0001417093Video/Publications
0001417093 STB2123 UD16649SAdd Your Number
