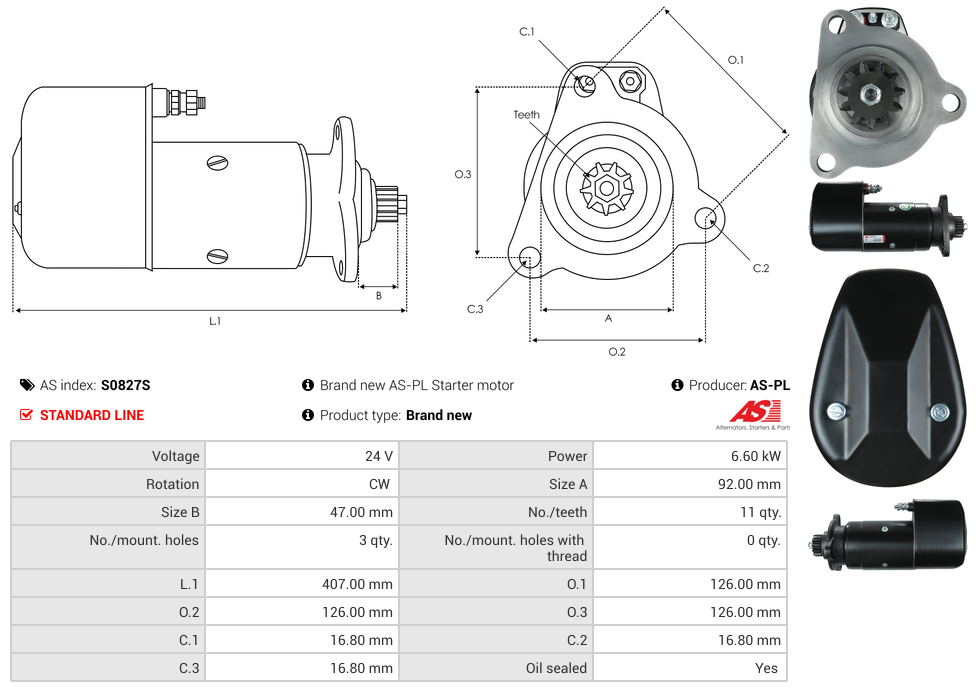

Specifications
| Kilowatt | 6.6 kW |
| Length (L.1) | 407 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 16.8 mm |
| Mount Hole Diameter (C.2) | 16.8 mm |
| Mount Hole Diameter (C.3) | 16.8 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | Various Models |
Reference Information
0001417091 STB2122 1417091 UD16648SVideo/Publications
0001417091 STB2122 UD16648SAdd Your Number
