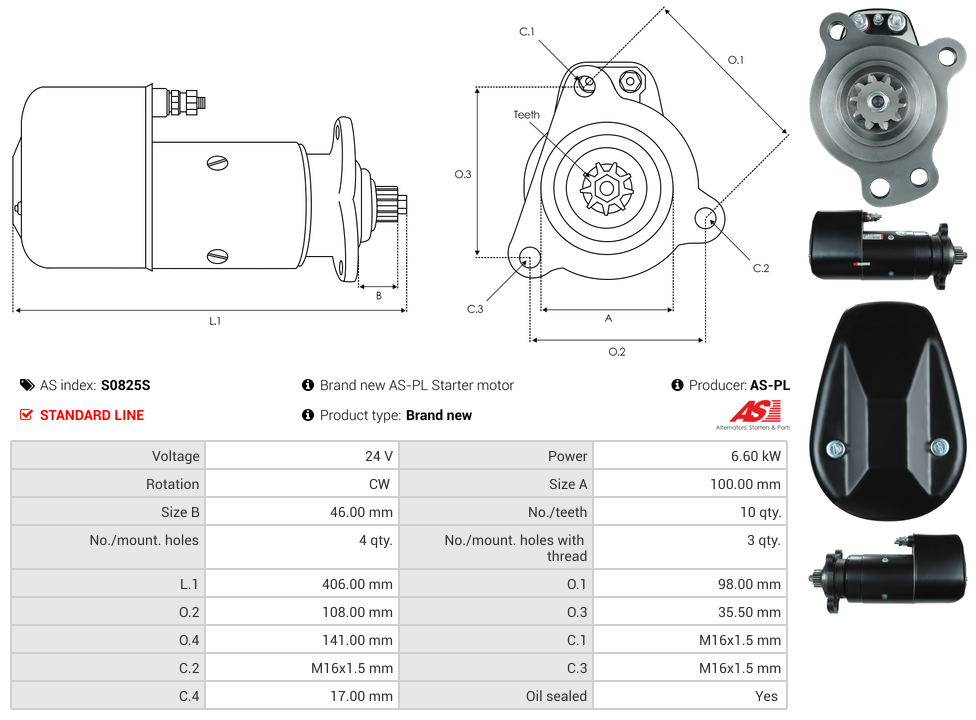

Specifications
Kilowatt | 6.6 kW |
Length (L.1) | 406 mm |
Mount Hole Center - Center (O.1) | 98 mm |
Mount Hole Center - Center (O.2) | 108 mm |
Mount Hole Center - Center (O.3) | 35.5 mm |
Mount Hole Center - Center (O.4) | 141 mm |
Mount Hole Diameter (C.1) | M16x1.5 mm |
Mount Hole Diameter (C.2) | M16x1.5 mm |
Mount Hole Diameter (C.3) | M16x1.5 mm |
Mount Hole Diameter (C.4) | 17 mm |
No./Mount holes | 4 qty |
No./Mount holes with thread | 3 qty |
No./Teeth | 10 qty |
Oil Sealed | Yes |
Pinion at Rest (B) | 46 mm |
Rotation | CW |
Spigot Diameter (A) | 100 mm |
Unit Type | BOSCH |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
VOLVO | Various Models |
Reference Information
STR2338 0001417090 UD16647S 1417090Video/Publications
0001417090 STR2338 UD16647SAdd Your Number
