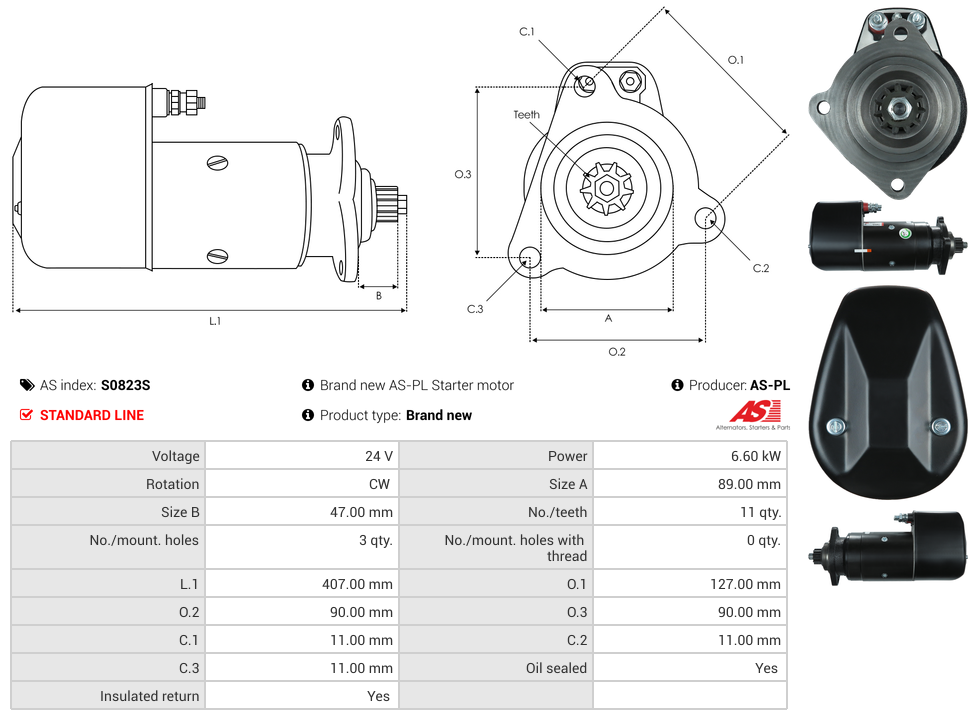

Specifications
Insulated Earth | Yes |
Kilowatt | 6.6 kW |
Length (L.1) | 407 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 90 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Oil Sealed | Yes |
Pinion at Rest (B) | 47 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | BOSCH |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
DEUTZ | Various Models |
Reference Information
BOM 920-1330 UNIT 255562 1180704 STB1837 UD16644S 1417072 561.210.113 0001417072Video/Publications
0001417072 1180704 255562 561.210.113 STB1837 UD16644S UNIT BOM 920-1330Add Your Number
