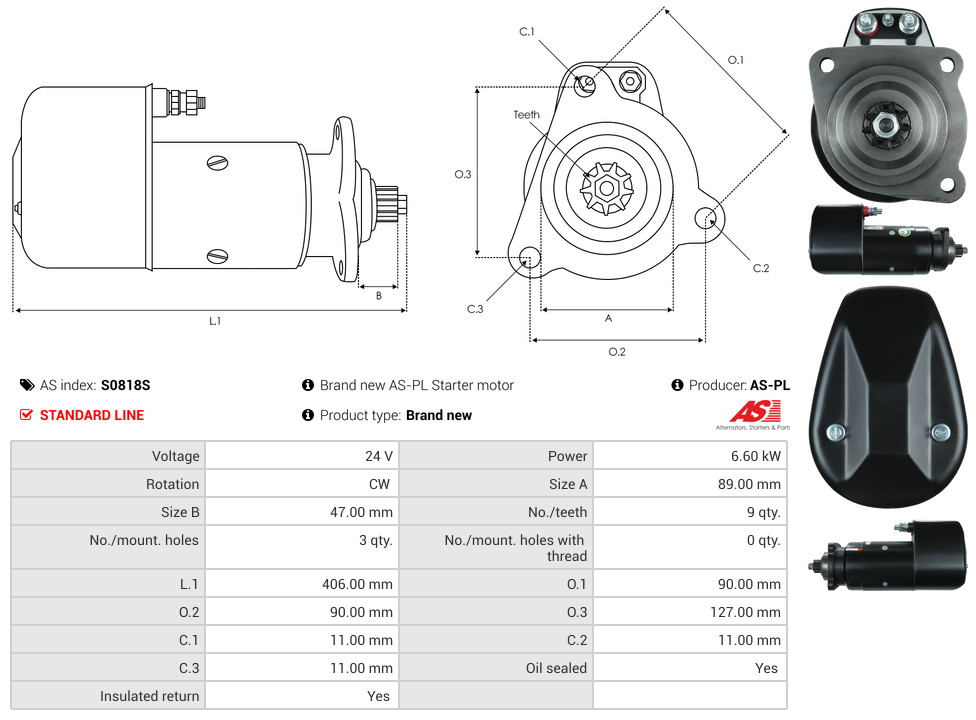

Specifications
| Insulated Earth | Yes |
| Kilowatt | 6.6 kW |
| Length (L.1) | 406 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MWM | Engine 10.8 | [D234] | 03.1983- |
| MWM | Engine 10.8 | [TD234] | 04.1988- |
Reference Information
STR79561 11.139.134 1178721 6010806 AZK5481 72736134 BOS0001417058 STR1659 STB4758 STRS735 561.205.093 0001417058 120-40128 BOM UNIT MS 920-1326 STR50629 UD16639S 20401608BN 1417058 256126M MS506 506 CST10806AS 260-47207 19024082 IS9121Video/Publications
0001417058 01178721 11.139.134 120-40128 19024082 20401608BN 256126M 260-47207 561.205.093 6010806.0 72736134 AZK5481 BOS0001417058 CST10806AS IS9121 MS 506 MS506 STB4758 STR50629 STRS735 UD16639S UNIT BOM 920-1326Add Your Number
