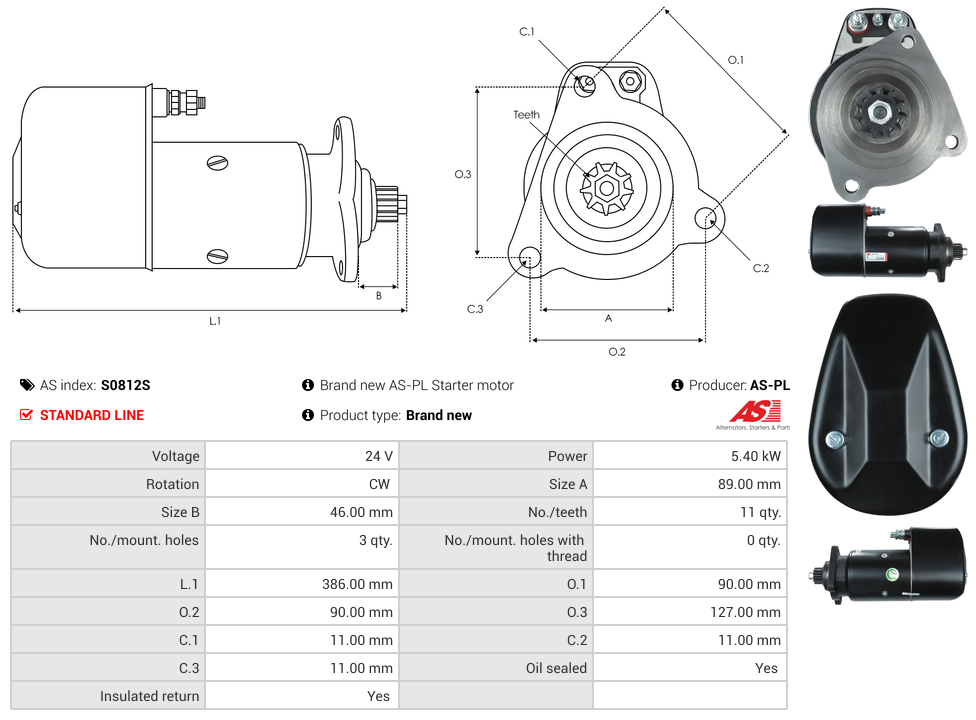

Specifications
Insulated Earth | Yes |
Kilowatt | 5.4 kW |
Length (L.1) | 386 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 90 mm |
Mount Hole Center - Center (O.3) | 127 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Oil Sealed | Yes |
Pinion at Rest (B) | 46 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | BOSCH |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
LIEBHERR | Engine | [D904T] | 01.1984-12.1990 |
LIEBHERR | Engine | [D926TI] | 01.1993-12.1994 |
Reference Information
CST10876 6290044 BOM 661.204.113 UNIT STR1654 260-46298 120-823 120-40181 STB4669 0001416069 1416069 UD16626S STRJ355 91-15-7071 6010876 20401678 255979Video/Publications
0001416069 120-40181 255979 260-46298 6290044 661.204.113 91-15-7071 STB4669 STRJ355 UD16626S UNIT BOM 120-823Add Your Number
