S0801S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0801S
Price: 826.21 NZD
Availability: InStock

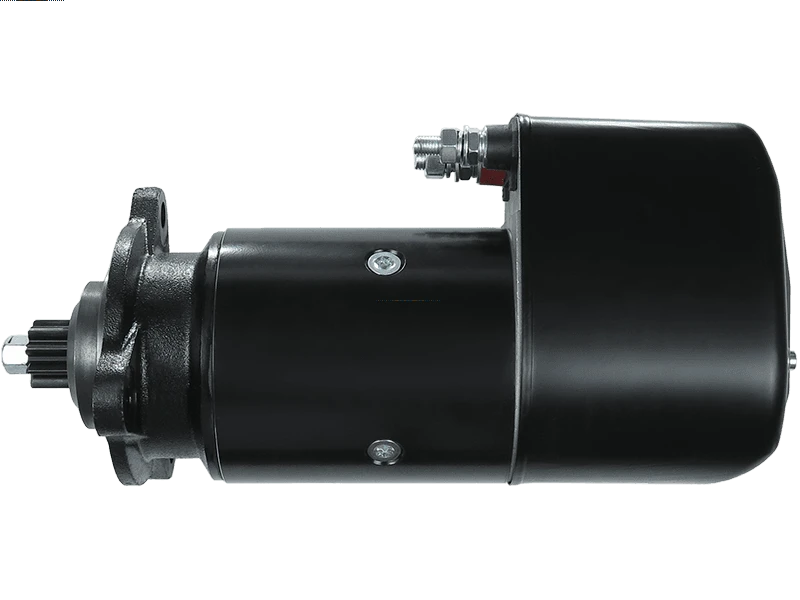

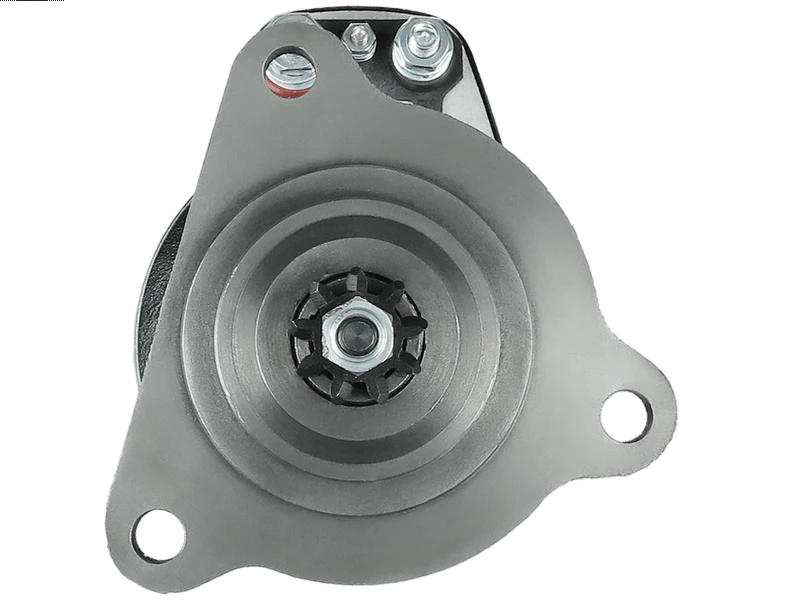

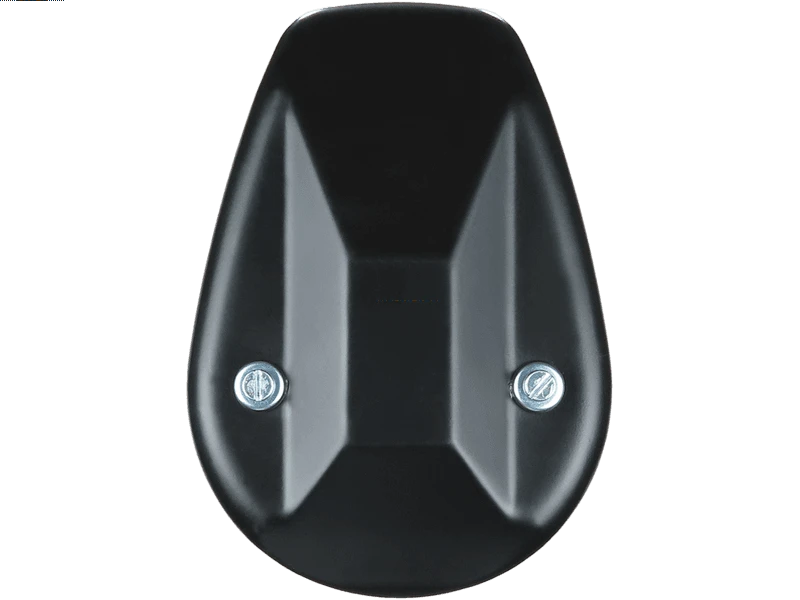

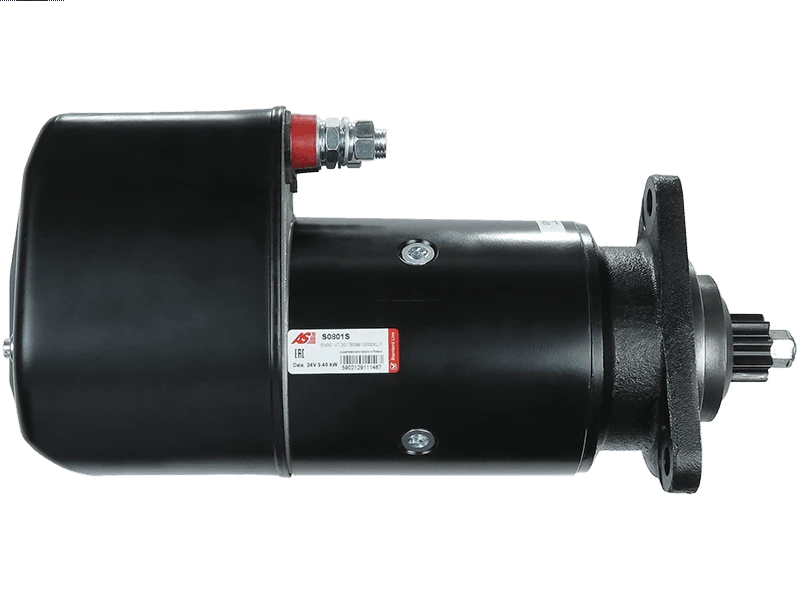

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 826.21 including GST

NZ$ 718.44 excluding GST

UOM:

each

Product Code:

S0801S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

Insulated Earth	Yes
Kilowatt	5.4 kW
Length (L.1)	387 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Center - Center (O.2)	126 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Oil Sealed	Yes
Pinion at Rest (B)	47.5 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	BOSCH
Voltage	24 V

Make	Model	Type	Year
MAN	11.220 6.9	[D0826LUH12	01.1998-12.2000
MAN	13.220 6.9	[D0826LUH12]	01.1998-12.2001
MAN	14.220 6.9	[D0826LUH12]	01.1998-12.2001
MAN	EL 202 6.9	[D0826LUH]	01.1993-12.1997
MAN	EL 202 F 6.9	[D0826LUH]	01.1996-12.1997
MAN	EL 220 6.9	[D0836LUH12]	01.1995-12.2001
MAN	EL 222 6.9	[D0826LUH12]	01.1995-12.2001
MAN	EL 262 6.9	[D0826LUH13]	01.1996-12.2001
MAN	EM 13.222 6.9	[D0826LUH12]	01.1997-12.2001
MAN	ND 222 6.9	[D0826LUH12]	01.1997-12.2001
MAN	NG 262 6.9	[D0826LUH13]	01.1997-12.1998
MAN	NG 272 6.9	[D0826LUH]	01.1990-12.1995
MAN	NL 202 6.9	[D0826LUH]	01.1994-12.1997
MAN	NL 222 6.9	[D0826LUH12]	01.1995-12.2001
MAN	NL 223 F 6.9	[D0826LUH12]	01.1996-12.2001
MAN	NL 262 6.9	[D0826LUH13]	01.1996-12.2001
MAN	NM 222 F 6.9	[D0826LUH12]	01.1997-12.2001

51262017127 51262017108 6010728 6010728.3 72736093 20401827EL 45-2469 41516801 260-46246 IS9114 1416074 STR79553 458337 UNITBOM120-6386 51262019117 CST10728ES 20401827BN 19024109 MS465 CST10728AS 220290 STRS966 AZK5476 551.201.093 STB1178 UD16627S 101178 51262017151 8437 LRS1932 LRS01932 11.139.127 0001416074 1516681R

0001416074 101178 11.139.127 1516681R 19024109 20401827BN 20401827EL 260-46246 45-2469 458337 51262017151 551.201.093 6010728.0 6010728.3 72736093 8437 AZK5476 CST10728AS CST10728ES IS9114 LRS01932 LRS1932 MS465 STB1178 STRS966 UD16627S UNITBOM120-6386 220290
