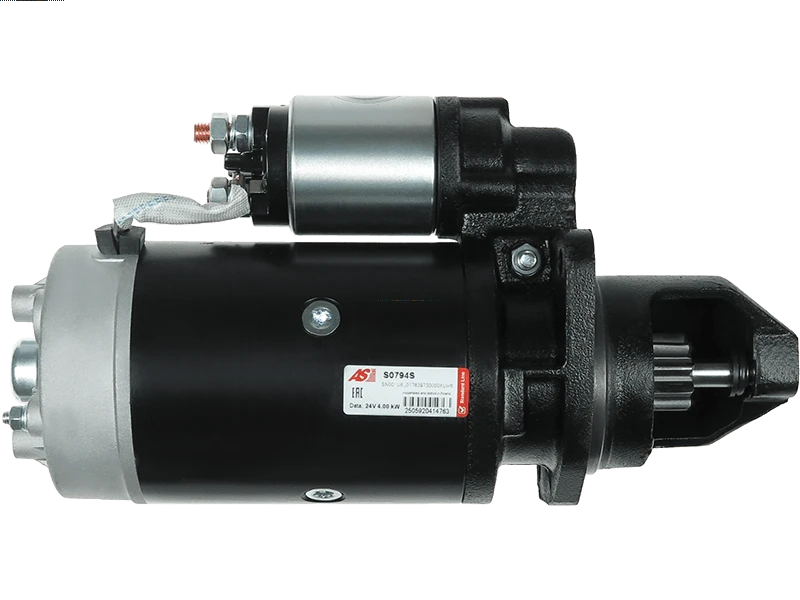

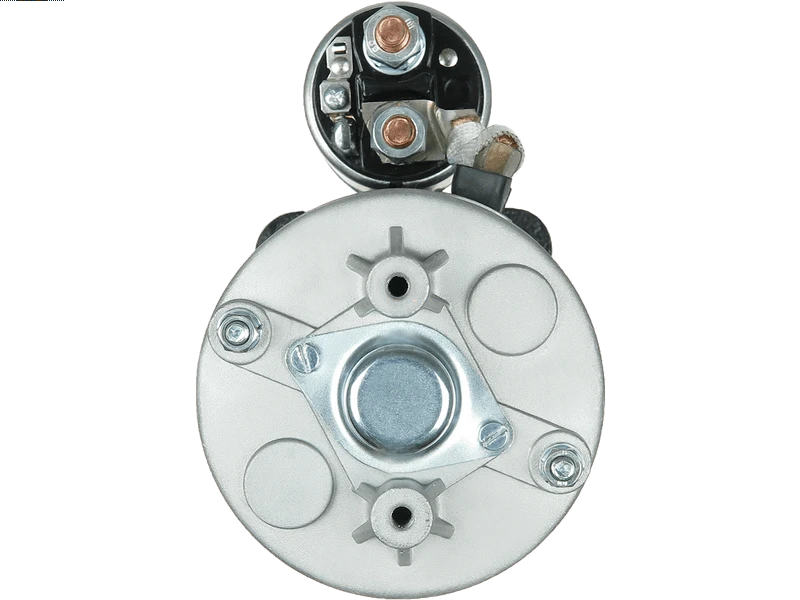

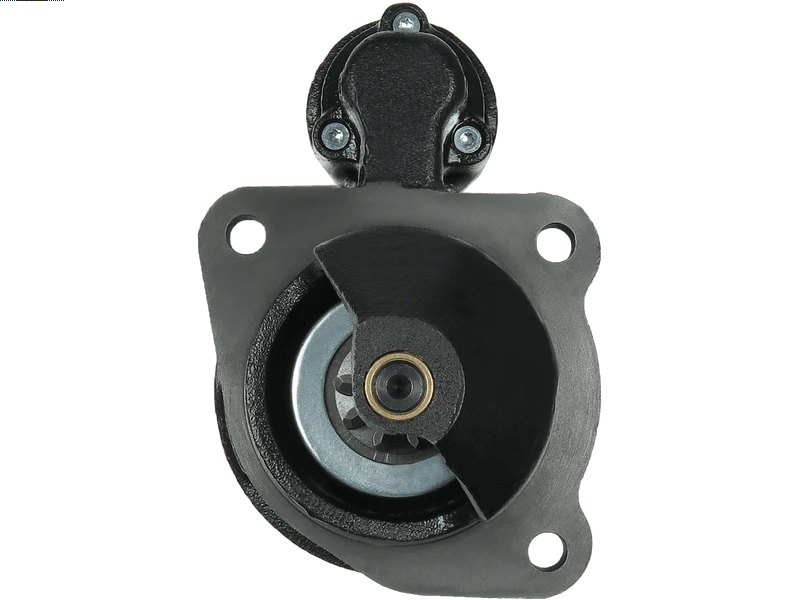

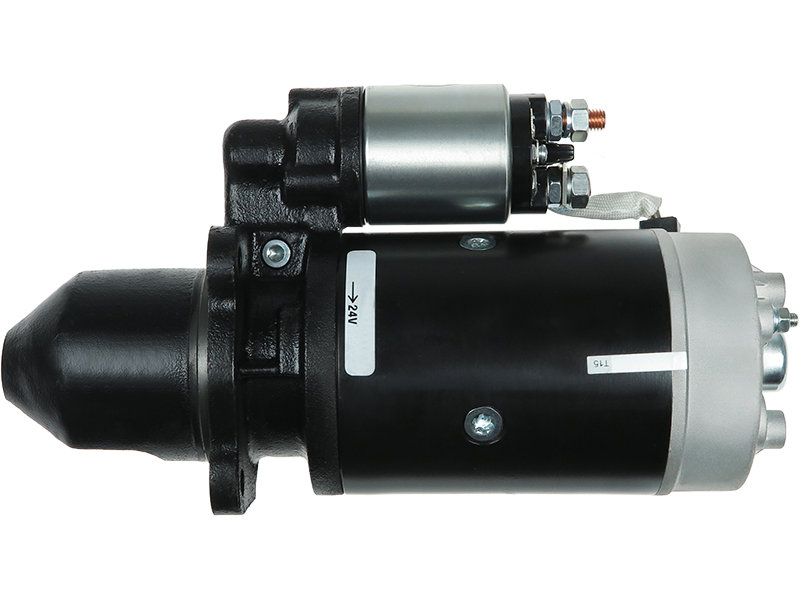

Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 341 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 65N 4.6 | [OM-CO3/41] | 01.1972-12.1976 |
| FIAT | 70FNM 4.6 | [OM-CO3/41] | 01.1973- |
| FIAT | 70N 4.6 | [OM-CO3/41] | 01.1972-12.1976 |
| FIAT | 75N 4.6 | [OM-CO3/41] | 01.1972-12.1976 |
Reference Information
MS177 8962534 220231 18032N 4706720 000986011340 77065560 000986011341 254008 IS0364 0001360027 7713056 45-0202 4737757 986011341 42498140 986011340 10450 STRJ686 581.005.093 AZJ3593 77097430 1368021 63214333 6010735 860133Z 0001368021 MS 77563430 260-67210 CGB-68021 STRL093 1360027 S24BH0087A2 LRS00840 11.130.364 63216733010 STR79009 20401537BN 254008M MT43HA 63216702 8961386 110520 MAV3390 UD16599S CST10735AS 331796 177 0001360007 33352 STR22049 77130560 LRS840 MAV2050 63216733 STR10313 8862534 4755113 1360007 STB2520 63214308 7709743 7706556Video/Publications
0001360007 0001360027 0001368021 0986011340 0986011341 11.130.364 110520 18032N 20401537BN 254008 254008M 260-67210 33352 45-0202 581.005.093 6010735.0 63214308 63214333 63216702 63216733 63216733010 860133Z AZJ3593 CGB-68021 CST10735AS IS0364 LRS00840 LRS840 MAV2050 MAV3390 MS 177 MS177 STB2520 STR22049 STRJ686 STRL093 UD16599S 220231Add Your Number
