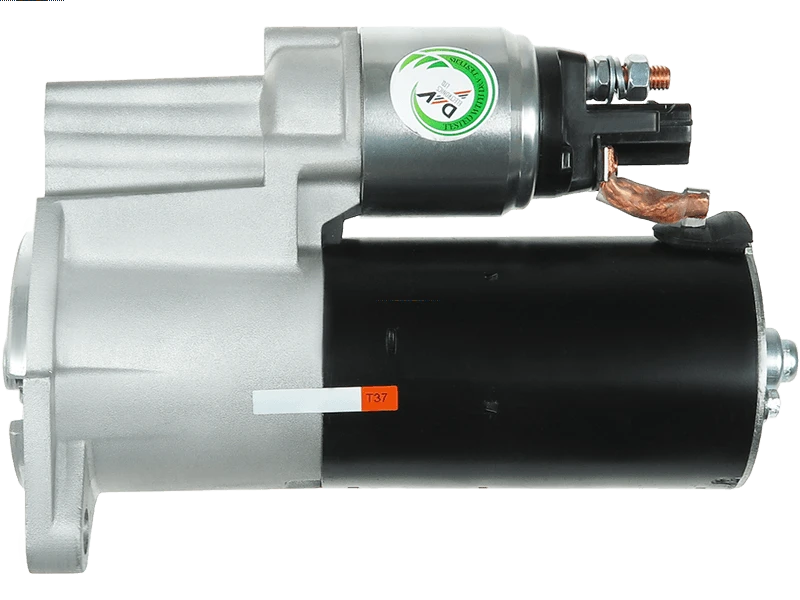

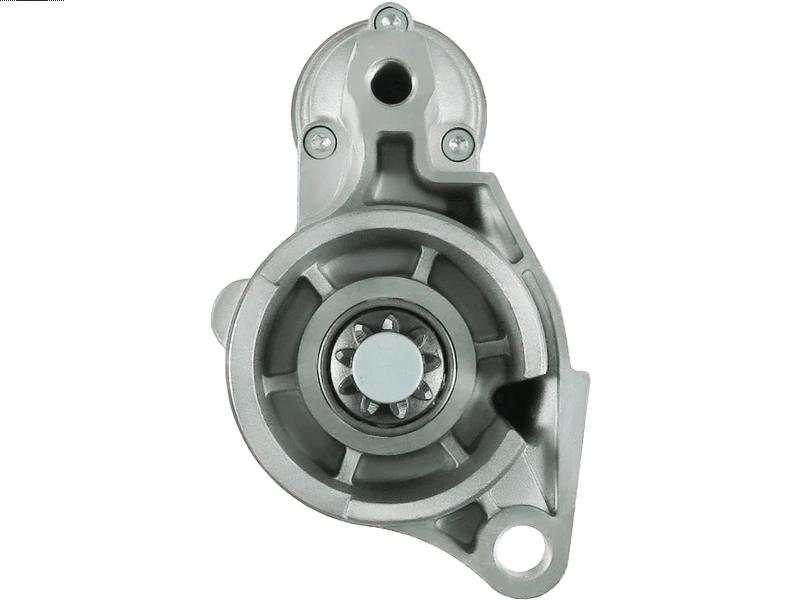

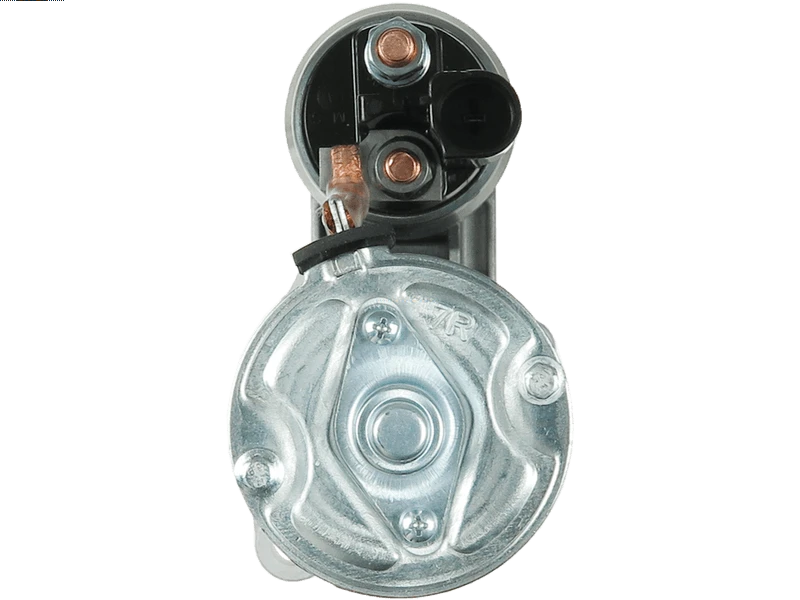

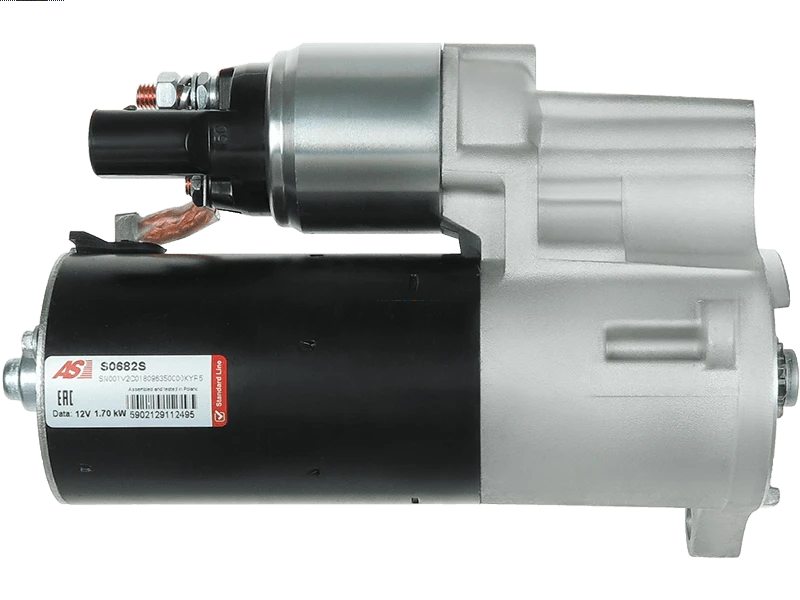

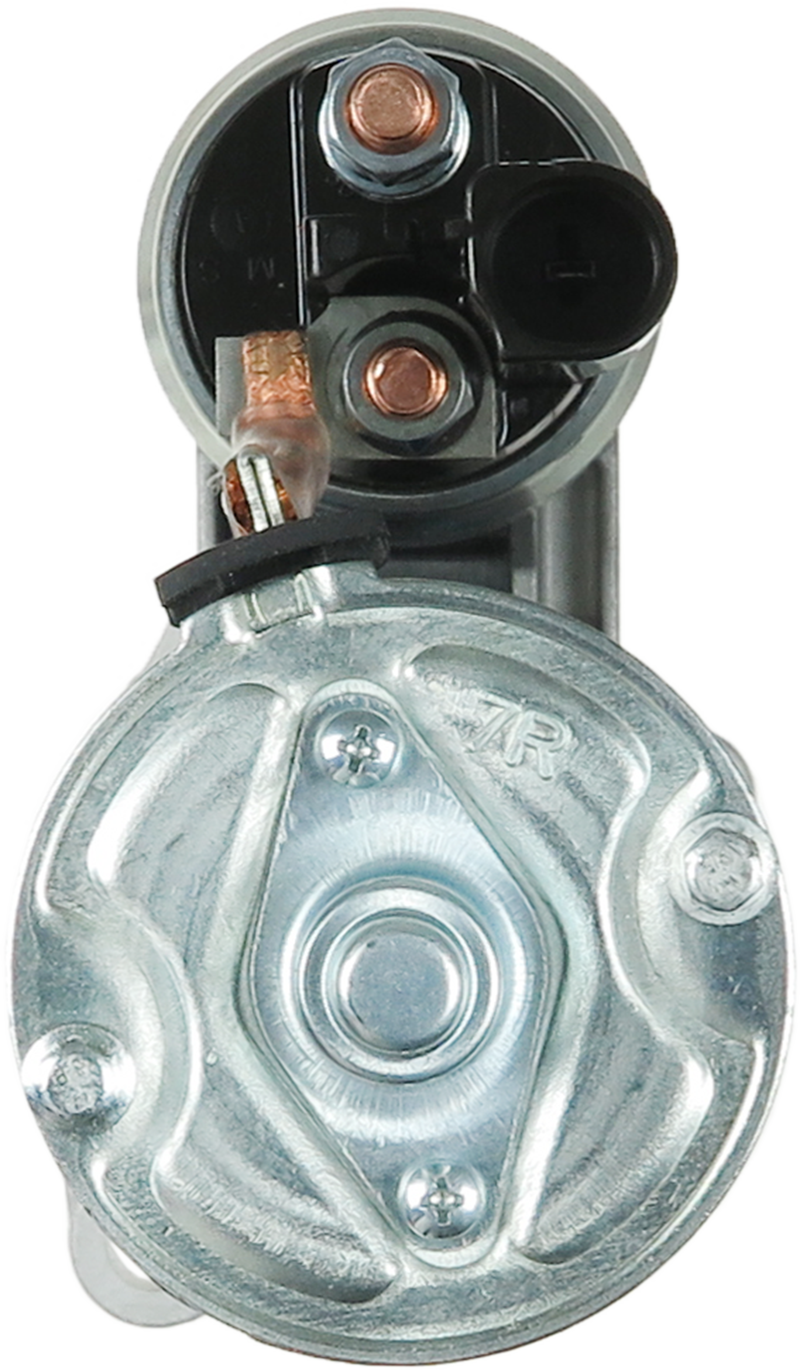

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 259.18 including GST
NZ$ 225.37 excluding GST
or four payments of $64.80
with
Learn More
each
S0682S
1
Information
0001123024Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 118 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Q7 3.6 FSI | [BHK] | 01.2006- |
| PORSCHE | Cayenne 3.6 | [M55.02] | 06.2010- |
| PORSCHE | Cayenne 3.6 | [MCE.YA] | 06.2010- |
| VW | Touareg 3.6 FSi V6 | [BHK] | 01.2005-12.2010 |
| VW | Touareg 3.6 FSi V6 | [BHL] | 01.2005-12.2010 |
Reference Information
| 0001123024 | BOSCH |
| 0001123025 | BOSCH |
| 012911023G | VW |
| 012911023GX | VW |
| 012911023H | VW |
| 012911023HX | VW |
| 071ST21 | STARTCAR |
| 0986024110 | BOSCH |
| 105497 | FARCOM |
| 11024110 | EUROTEC |
| 12071 | EAI |
| 19002N | WAI / TRANSPO |
| 19002R | WAI / TRANSPO |
| 25-4131 | ELSTOCK |
| 25-4131CT | AINDE |
| 300.599.092.010 | PSH |
| 311259092 | DRI |
| 3116987 | HENKEL PARTS |
| 3116989 | HENKEL PARTS |
| 3138 | CEVAM |
| 331405 | LOGISTIK |
| 42000025 | HERTH+BUSS |
| 460407 | VALEO |
| 88214552 | POWERMAX |
| 91-15-7269 | WILSON |
| 95560410710 | PORSCHE |
| 95560410711 | PORSCHE |
| 955604107BX | PORSCHE |
| 95660410711 | PORSCHE |
| A24110 | ATL AUTOTECHNIK |
| ANM12306 | ANDEL |
| DRS0086 | DELCO |
| LRS02459 | LUCAS |
| LRS2459 | LUCAS |
| S100386 | BTS TURBO |
| S105159 | BTS TURBO |
| S132.399 | PSH |
| ST01646 | TMI |
| STB2430 | KRAUF |
| STR1966 | ELECTROLOG |
| STR50788 | WOODAUTO |
| STRE374 | 3EFFE |
| STX210365 | STARDAX |
| UD16907S | AS-PL |
| VW9081 | SNRA |
| WOOSTR50788 | WOODAUTO |
