Specifications

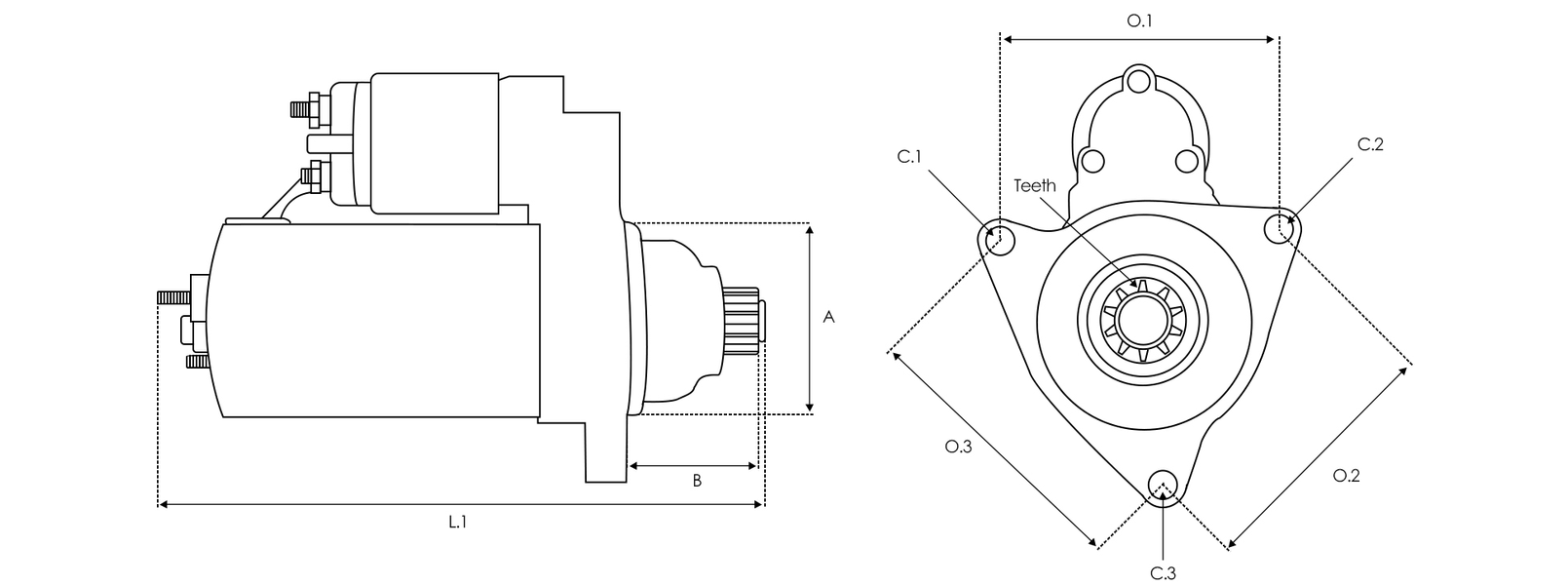

| Kilowatt | 8.4 kW |
| Length (L.1) | 366 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 16.5 mm |
| Mount Hole Diameter (C.2) | 16.5 mm |
| Mount Hole Diameter (C.3) | 16.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 48 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MTU | Engine |
Reference Information
11090256 BOM STR1403 120-34001 20401297OE X52417200001 UNIT 910819 107445 19083700 260-34201 DRS0819 STB3451 STR50708 UD805231(BOSCH)S 1340501 BOS0001340501 120-6572 0001340501 551.532.113 254926 6010792.1 CST10792GSVideo/Publications
0001340501 107445 11090256 120-34001 19083700 20401297OE 254926 260-34201 551.532.113 6010792.1 910819 BOS0001340501 CST10792GS DRS0819 STB3451 STR50708 UD805231(BOSCH)S UNIT BOM 120-6572 X52417200001Add Your Number
