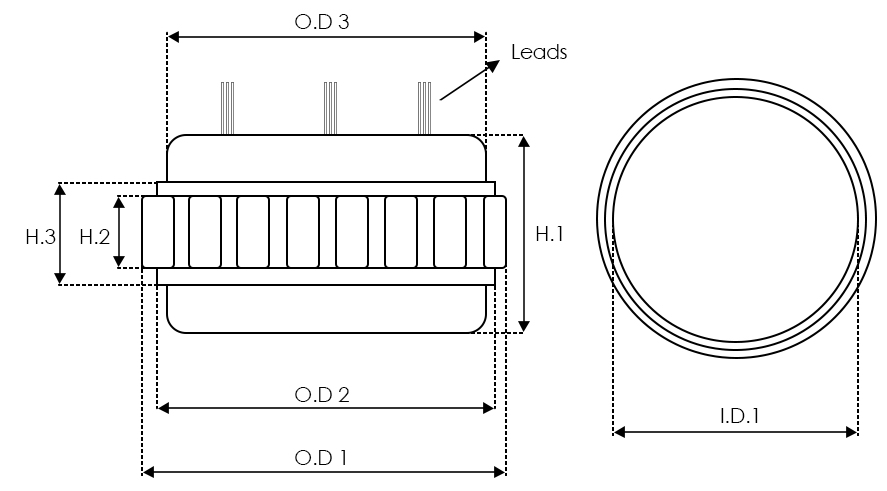

Specifications
| Amp | 80 A |
| Height (H.1) | 56 mm |
| Height (H.2) | 28.5 mm |
| Inside Diameter (I.D.1) | 104 mm |
| Lam. Stack Height (H.3) | 29.1 mm |
| No./Leads | 4 qty |
| Outside Diameter (O.D.1) | 142 mm |
| Outside Diameter (O.D.2) | 135.7 mm |
| Outside Diameter of Windings (O.D.3) | 128 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Reference Information
27-9117 1986AE1102 135840 136037 1112243 1125045165 1125045197 1125045152 CQ1120001 1125045167 WST87731 STA1091 CSR10621AS 9121456090 93160281 AFB6037 19025398 SSR10621 1936221 S/601 6033GD3066 UD803867(BOSCH)ASVideo/Publications
135840 0120468053 120468053 6033G3037B 9120456028 93160281 6033GB3033 6033GB3034 120468065 1125045165 9120456032 6033G3038B 0120468065 9120456039 1125045167 9120456038 F010LD0204 9120456031 6033GB3027 6033GB3022 6033GB3021 120468107 6033G3043B 120468116 120468113 120468114 6033GB3091 136037 1125045197 0120468154 A0010 6033G3039B 0120468159 0120468037 0120469118 6033GB3019 9121456090 6033GD3066 120468117 120468118 A0007 120468124 A0008 0120468162 0120468161 0120468160 9120456011 9120456010 A0002 9120456015 6033GB3006 AFB6037 6033GB3087 120468129 0120468093 120468137 120469105 120468138 120468135 120468136 120469104 0120468130 F006LD0801 120468131 0120468094 F006LD0800 120468130 120468094 0120468131 0120468138 0120468137 0120469105 120468093 0120468136 0120469104 6033G3045B 0120468135 0120468129 120468139 120469116 A0307 120468149 120469117 A0029 120468146 120469115 120468144 0120468140 120468142 120468140 0120468144 0120468142 0120468149 0120469117 0120469116 0120469115 A0025 0120468146 0120468139 B120500755 1936221 UD803867(BOSCH)AS 120469118 120468159 120468037 120468154 9120456043 1125045152 0120468116 0120468114 0120468113 WST87731 0120468107 9120456040 9120456042 9120456041 19025100 6033GB3054 6033GB3040 6033G3040B 120468162 120468160 120468161 0120468124 0120468118 0120468117 6033G3B022 6033GB3048 6033GB3045Add Your Number
