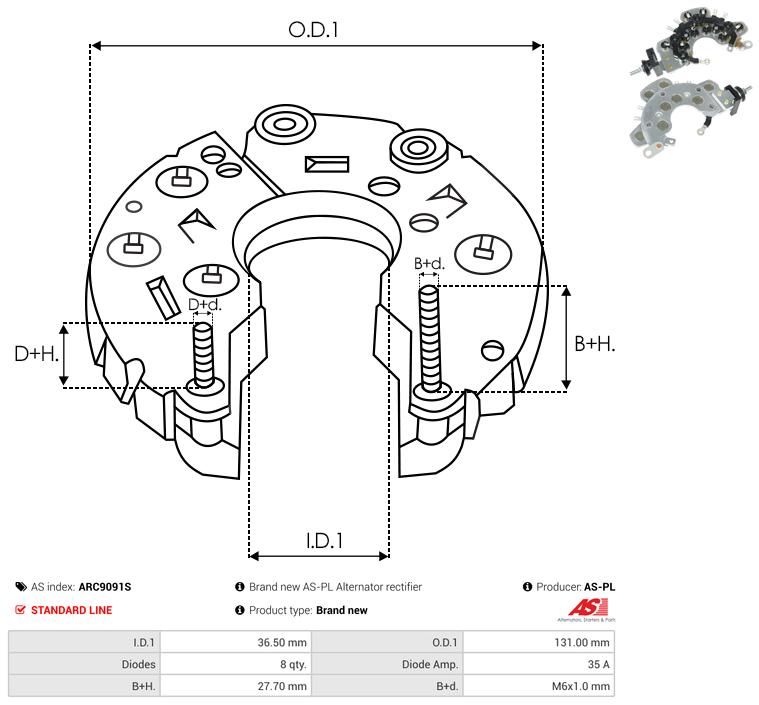

Specifications
B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
B+ Thread Length (B+H) | 27.7 mm |
Diode Amp Rating | 35 A |
Diodes (Main) | 8 qty |
Inside Diameter (I.D.1) | 36.5 mm |
Outside Diameter (O.D.1) | 131 mm |
Reg/Rec Combo | No |
Unit Type | SAWAFUJI |
With Attached Bracket | No |
Reference Information
UD18770ARCVideo/Publications
27060EW030 UD18770ARCAdd Your Number
