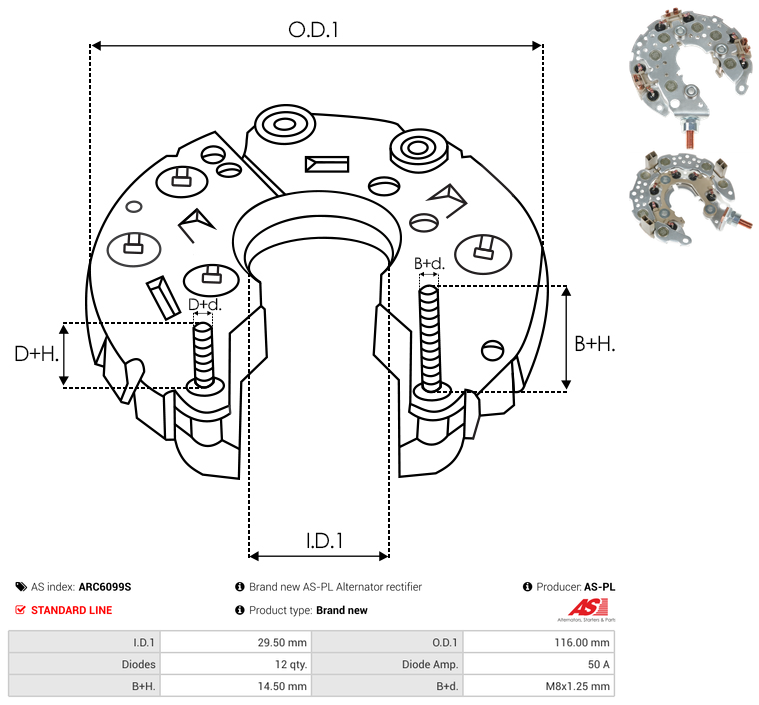

Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 14.5 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 12 qty |
| Inside Diameter (I.D.1) | 29.5 mm |
| Outside Diameter (O.D.1) | 116 mm |
| Reg/Rec Combo | No |
| Unit Type | DENSO |
| With Attached Bracket | No |
Reference Information
RCT6098 335563 RN-72 UD45380ARCVideo/Publications
A6428S A6131S 1042108850 335563 1042113330 D2BT10300AA 1042118850 RN-72 UD45380ARC A6435SAdd Your Number
