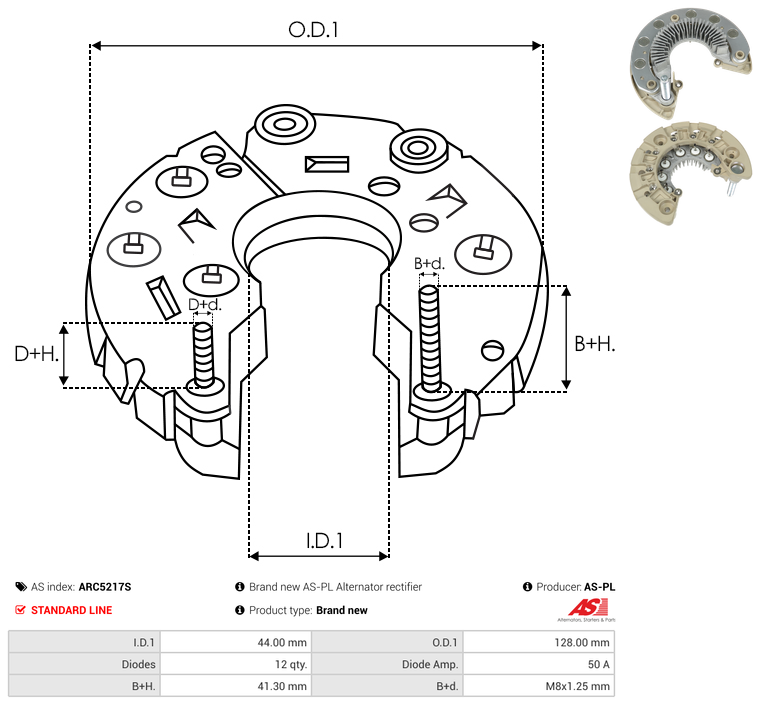

Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 41.3 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 12 qty |
| Inside Diameter (I.D.1) | 44 mm |
| Outside Diameter (O.D.1) | 128 mm |
| Reg/Rec Combo | No |
| Unit Type | MITSUBISHI |
| With Attached Bracket | No |
Reference Information
UD18797ARCVideo/Publications
A003TX0381 A3TX0381 UD18797ARCAdd Your Number
