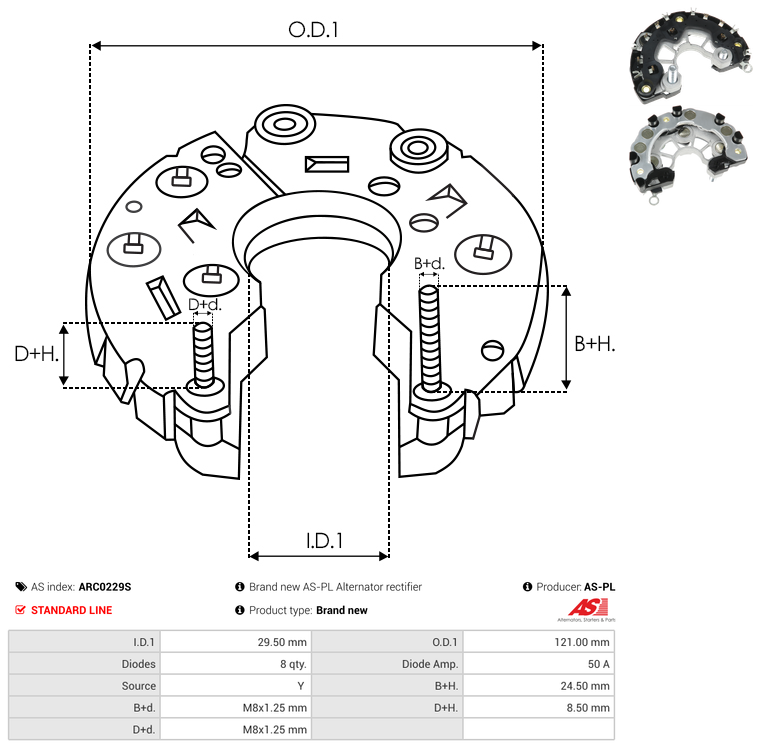

Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 24.5 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 8 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
| D+ Thread Height (D+H) | 8.5 mm |
| Inside Diameter (I.D.1) | 29.5 mm |
| Outside Diameter (O.D.1) | 121 mm |
| Reg/Rec Combo | No |
| Source | Y |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
139915 RB-118H UD18766ARC 81116760 RCT1158 F00M113200 RTF39892 1116760 AEB3274 215937 053.000.436.010 IBR1200 9198888Video/Publications
RB-118H 124225041 124225001 124225023 124225022 0124225018 F00M113200 124225005 124225027 124225004 124225026 124225025 124225002 124225024 0124225041 124225009 A0360 0124225022 0124225001 0124225023 215937 IBR1200 139915 UD18766ARC 124225030 0124225002 0124225024 81116760 0124225025 0124225004 0124225026 0124225005 0124225027 0124225009 RTF39892 0124225030 124225018 1116760 AEB3274 053.000.436.010 9198888Add Your Number
