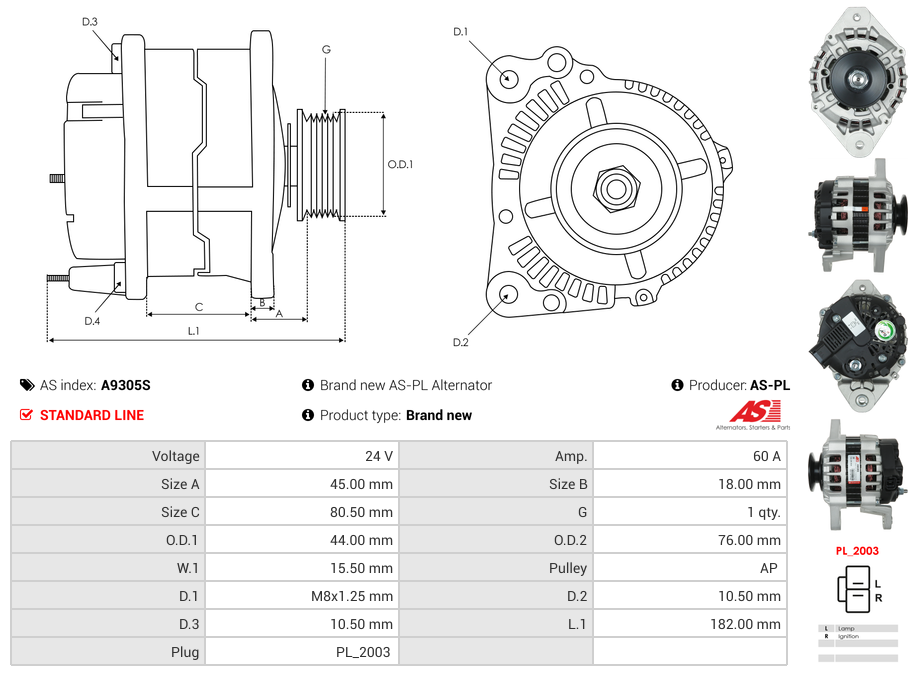

Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 18 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Grooves | 1 qty |
| Groove Width (W.1) | 15.5 mm |
| Length (L.1) | 182 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80.5 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 44 mm |
| Outside Diameter (O.D.2) | 76 mm |
| Plug Code | PL_2003 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | SOLID |
| Unit Type | VALEO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HITACHI | EX60G | ||
| HITACHI | EX70G | ||
| YANMAR | Various Models |
Reference Information
ALV6028 UD17176A E0002608843 220-10342 2616028 986.501.060 ALT01206 129E20-77200 555210RIV 600136Video/Publications
129E20-77200 220-10342 2616028 555210RIV 600136 986.501.060 ALV6028 E0002608843 UD17176AAdd Your Number
