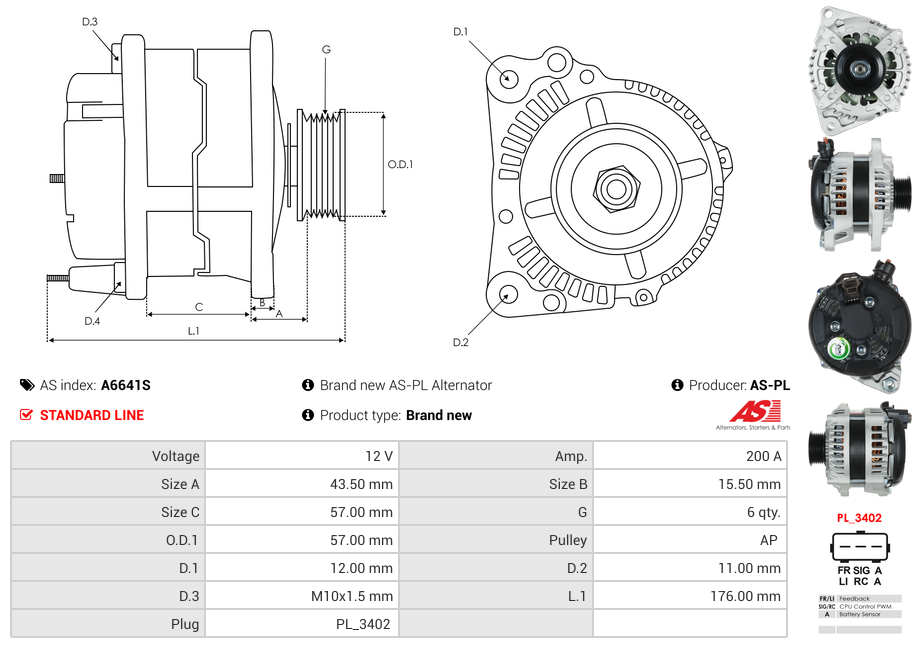

Specifications
Amp | 200 A |
Diameter (D.1) | 12 mm |
Diameter (D.2) | 11 mm |
Diameter (D.3) | M10x1.5 mm |
Grooves | 6 qty |
Length (L.1) | 176 mm |
Measurement (A) | 43.5 mm |
Outside Diameter (O.D.1) | 57 mm |
Pivot Foot Length (B) | 15.5 mm |
Pivot Inside Length (C) | 57 mm |
Plug Code | PL_3402 |
Pulley Type | SOLID |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
FORD | F-150 5.0 | 01.2015-12.2019 |
Reference Information
HL3T-10300-EA 104211-0240 FL3T-10300-KA 104211-0241 A-80783 UD18587A A6641S 290-10524 90-29-5905 HL3Z-10346-E FL3Z-10346-HVideo/Publications
104211-0240 104211-0241 290-10524 90-29-5905 A-80783 FL3T-10300-KA FL3Z-10346-H HL3T-10300-EA HL3Z-10346-E UD18587AAdd Your Number
