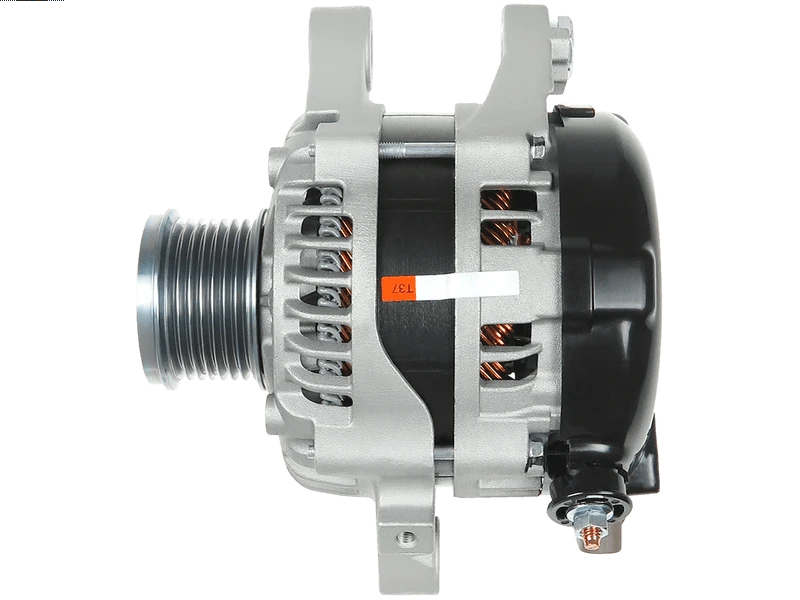

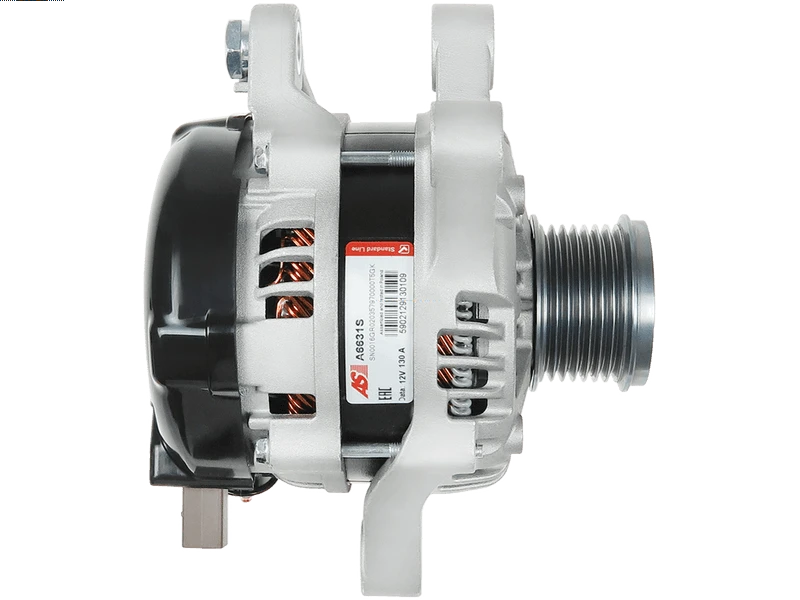

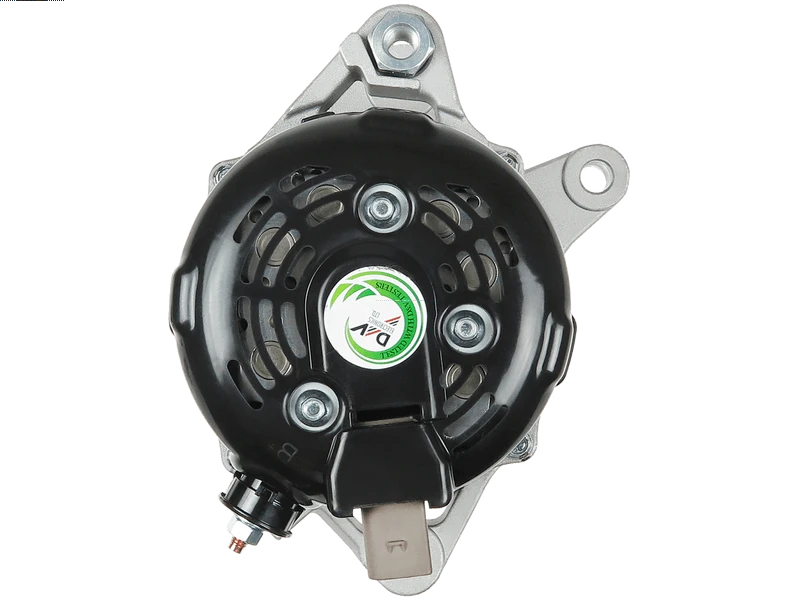

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 575.70 including GST
NZ$ 500.61 excluding GST
or four payments of $143.93
with
Learn More
UOM:
each
Product Code:
A6631S
Quantity In Stock Nationally
1 in stock nationally
Information
104211-3800Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 11 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 163 mm |
| Mount Inside Length or Pad Mount C-C (C) | 43 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 52.50 mm |
| Pulley to Mount Distance (A) | 37.50 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Hiace 2.7 | [2TRFE] | 01.2014- |
| TOYOTA | HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH223_, TRH223R) | 2TR-FE | 12.2013- |
| TOYOTA | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.7 4WD (TRH226, TRH228B) | 2TR-FE | 01.2015-05.2019 |
| TOYOTA | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH2__, TRH223B, TRH201, TRH221) | 2TR-FE | 01.2015- |
Reference Information
| 104211-3800 | DENSO |
| 27060-75510 | TOYOTA |
| ALN2144 | KRAUF |
| ALT60004 | ELECTROLOG |
| UD14844A | AS-PL |
