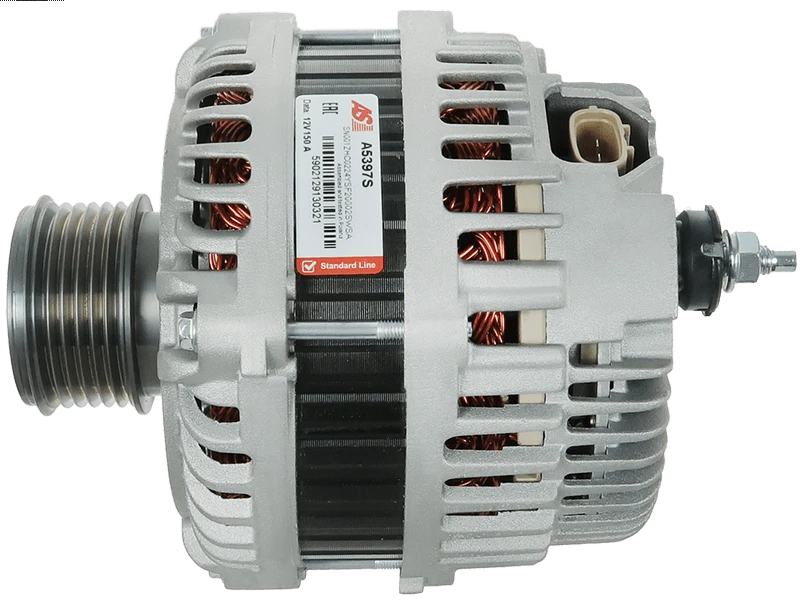

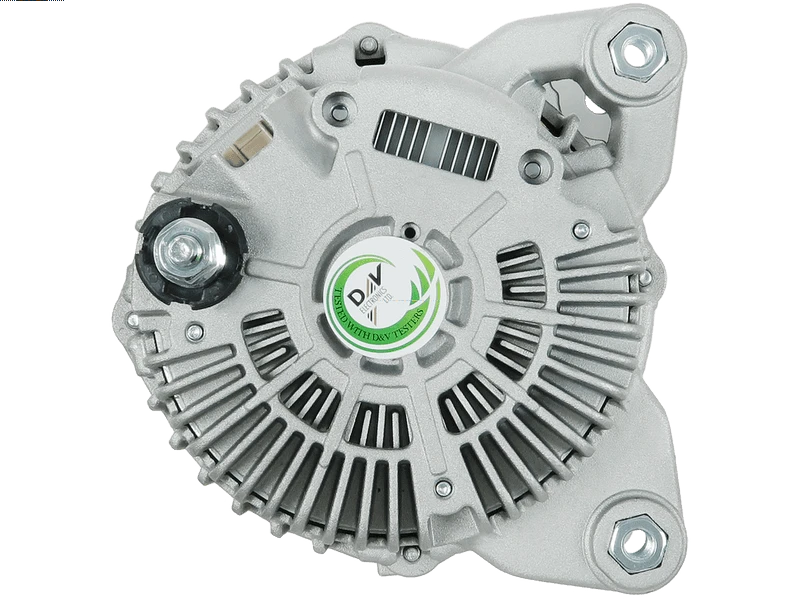

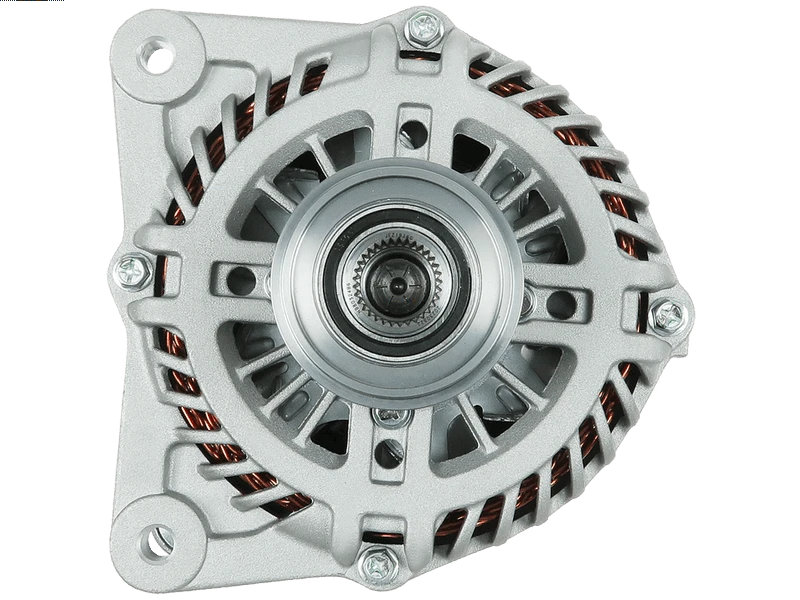

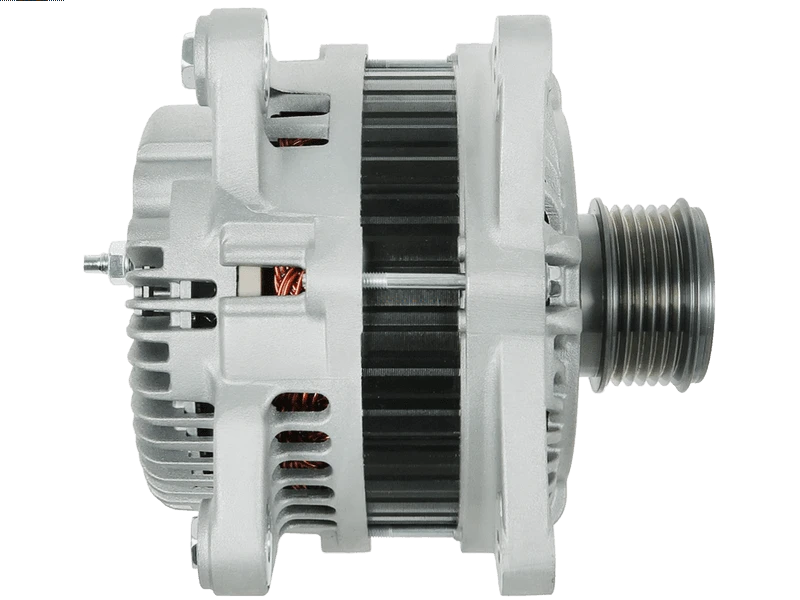

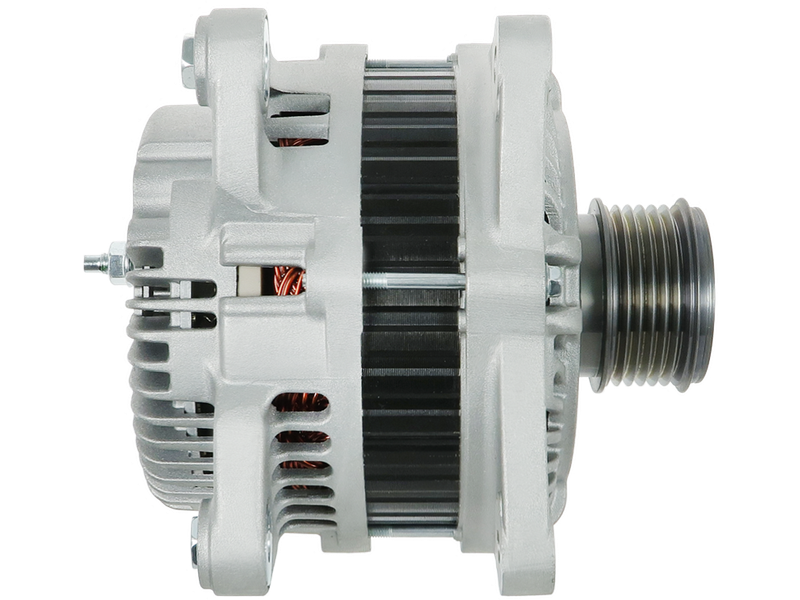

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 553.17 including GST
NZ$ 481.02 excluding GST
or four payments of $138.29
with
Learn More
UOM:
each
Product Code:
A5397S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A3TJ4081ZESpecifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 197 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_3308 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 55 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Juke 1.5 dCi | [K9K..] | 01.2013- |
| NISSAN | JUKE (F15) 1.5 dCi | K9K410 | 06.2010-12.2019 |
| NISSAN | JUKE (F15) 1.5 dCi | K9K636 | 06.2010-12.2019 |
| NISSAN | JUKE (F15) 1.5 dCi | K9K646 | 06.2010-12.2019 |
| NISSAN | JUKE (F15) 1.5 dCi | K9K896 | 06.2010-12.2019 |
| NISSAN | JUKE Van (F15) dCi | K9K636 | 06.2010-12.2019 |
| NISSAN | Note 1.5 dCi | [K9K..] | 01.2013- |
| NISSAN | NOTE (E12) 1.5 dCi | K9K608 | 06.2013-12.2016 |
| NISSAN | NOTE (E12) 1.5 dCi | K9K892 | 06.2013-12.2016 |
| NISSAN | NV200 1.5 | [K9K..] | 01.2009- |
| NISSAN | NV200 1.5 | [K9K..] | 01.2011- |
| NISSAN | NV200 1.5 dCi | [K9K..] | 01.2013- |
| NISSAN | NV200 / EVALIA Bus 1.5 dCi 110 (M20, M20M) | K9K636 | 04.2011- |
| NISSAN | NV200 / EVALIA Bus 1.5 dCi 110 (M20, M20M) | K9K646 | 04.2011- |
| NISSAN | NV200 / EVALIA Bus 1.5 dCi 90 (M20, M20M) | K9K892 | 04.2011- |
| NISSAN | NV200 Van 1.5 dCi 110 (M20, M20N, M20M) | K9K636 | 04.2011- |
| NISSAN | NV200 Van 1.5 dCi 110 (M20, M20N, M20M) | K9K646 | 04.2011- |
| NISSAN | NV200 Van 1.5 dCi 85 (M20, M20N, M20M) | K9K400 | 02.2010- |
| NISSAN | NV200 Van 1.5 dCi 85 (M20, M20N, M20M) | K9K608 | 02.2010- |
| NISSAN | NV200 Van 1.5 dCi 85 (M20, M20N, M20M) | K9K628 | 02.2010- |
| NISSAN | NV200 Van 1.5 dCi 90 (M20, M20N, M20M) | K9K892 | 04.2011- |
Reference Information
| 165.913.150.130 | WAI |
| 20137204BN | REAL |
| 2035402.0 | SANDO |
| 21192N | WAI |
| 21192-OS | WAI |
| 23100-3VD1A | NISSAN |
| 23100-3VDIA | NISSAN |
| 28-7549 | ELSTOCK |
| 40014 | CEVAM |
| 447005 | LOGISTIK |
| 554496RI | KUHNER |
| 57706 | EAI |
| 89216053 | POWERMAX |
| A003TJ4081 | MITSUBISHI |
| A003TJ4081ZE | MITSUBISHI |
| A130.599 | WAI |
| A3TJ4081 | MITSUBISHI |
| A3TJ4081ZE | MITSUBISHI |
| A5397S | AS-PL |
| AEG1272 | AUTOELECTRO |
| ALM4108 | KRAUF |
| ALT31386 | WOODAUTO |
| ALT5503 | ELECTROLOG |
| CAL35402AS | CASCO |
| CGB-87549 | AINDE |
| DA2683 | DELCO |
| DRA1573 | DELCO |
| J5111156 | HERTH+BUSS |
| LRA03939 | LUCAS |
| LRA3939 | LUCAS |
| STX110206 | STARDAX |
| STX110206R | STARDAX |
| UD18469A | AS-PL |
