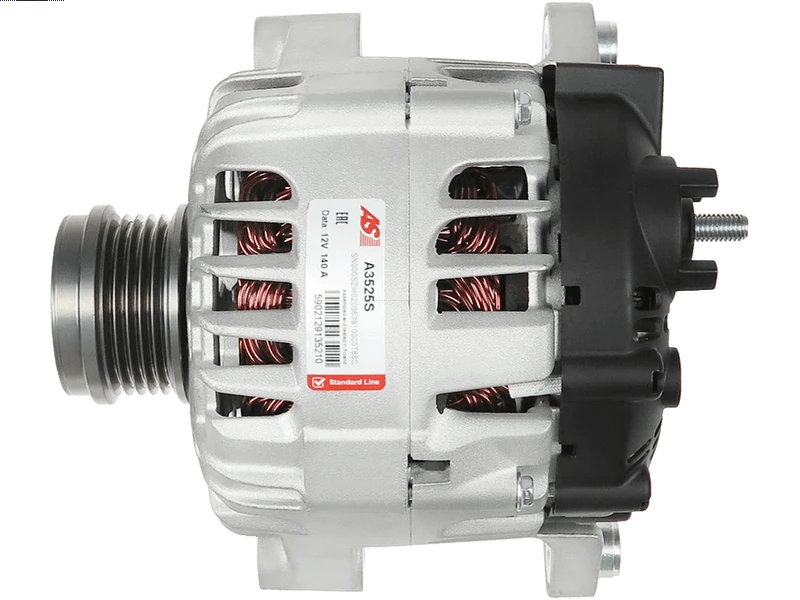

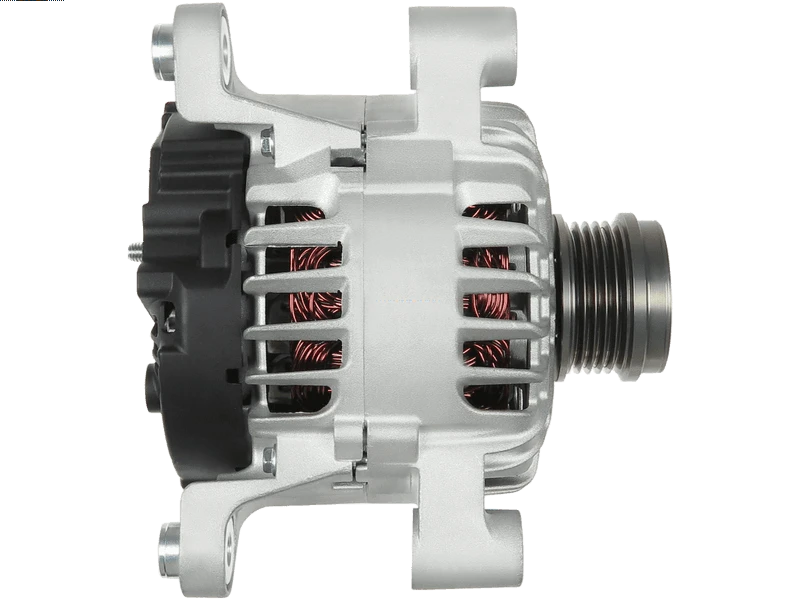

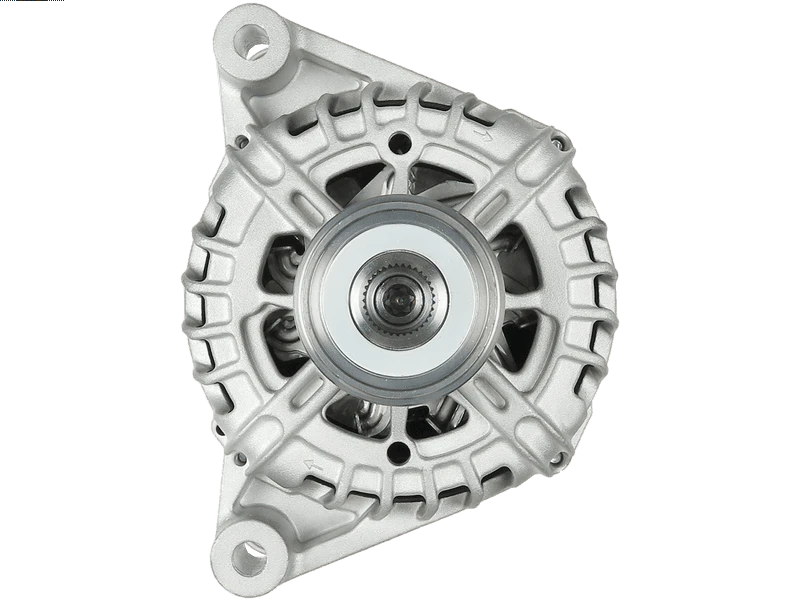

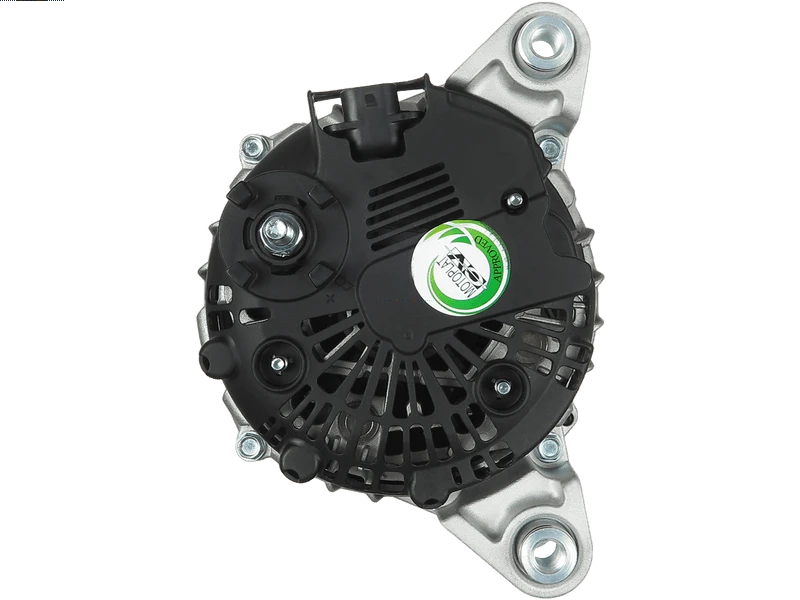

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 625.54 including GST
NZ$ 543.95 excluding GST
or four payments of $156.39
with
Learn More
each
A3525S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
TG12C184Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 58 mm |
| OEM Product | No |
| Plug Code | PL_2201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 53.50 mm |
| Pulley to Mount Distance (A) | 54 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Corsa 1.2 | [A12XEL] | 01.2010-08.2014 |
| OPEL | Corsa 1.2 | [A12XEL] | 12.2009-08.2014 |
| OPEL | Corsa 1.2 | [A12XER] | 06.2010-08.2014 |
| OPEL | Corsa 1.2 | [A12XER] | 12.2009-08.2014 |
| OPEL | Corsa 1.2 LPG | [A12XER] | 06.2011-08.2014 |
| OPEL | Corsa 1.4 | [A14XEL] | 09.2009-08.2014 |
| OPEL | Corsa 1.4 | [A14XER] | 12.2009-08.2014 |
| OPEL | Insignia 1.4 | [A14NET] | 04.2011-03.2017 |
| OPEL | Insignia 1.4 | [B14NET] | 04.2011-03.2017 |
| OPEL | Insignia 1.4 LPG | [A14NET] | 07.2012-03.2017 |
| OPEL | Insignia 1.4 LPG | [B14NET] | 07.2012-03.2017 |
| OPEL | Insignia 1.4 LPG Sports Tourer | [A14NET] | 07.2012-06.2013 |
| OPEL | Insignia 1.4 LPG Sports Tourer | [B14NET] | 07.2012-06.2013 |
| OPEL | Insignia 1.4 Sports Tourer | [A14NET] | 09.2011-06.2013 |
| OPEL | Insignia 1.4 Sports Tourer | [B14NET] | 09.2011-06.2013 |
| OPEL | Meriva 1.4 | [A14NEL] | 06.2010-03.2017 |
| OPEL | Meriva 1.4 | [A14NET] | 06.2010-03.2017 |
| OPEL | Meriva 1.4 | [A14XER] | 06.2010-03.2017 |
| OPEL | Meriva 1.4 | [B14NEL] | 06.2010-03.2017 |
| OPEL | Meriva 1.4 | [B14NET] | 06.2010-03.2017 |
| OPEL | Meriva 1.4 | [B14XER] | 06.2010-03.2017 |
| OPEL | Meriva 1.4 LPG | [A14NEL] | 06.2011-03.2017 |
| OPEL | Meriva 1.4 LPG | [B14NEL] | 06.2011-03.2017 |
| OPEL | Zafira Tourer 1.6 CDTi | [B16DTH] | 02.2013- |
Reference Information
| 1202243 | OPEL |
| 1202313 | OPEL |
| 1202319 | OPEL |
| 1204438 | OPEL |
| 1204440 | OPEL |
| 13512747 | GM |
| 135.591.140 | PSH |
| 135.591.140.460 | PSH |
| 13581893 | OPEL |
| 13588296 | OPEL |
| 19YY1715 | OPEL |
| 2015581.1 | SANDO |
| 2015581.2 | SANDO |
| 20179185OE | REAL |
| 20179185RC | REAL |
| 209406 | ERA |
| 2281941402 | DRI |
| 28-6727 | ELSTOCK |
| 4224 | CEVAM |
| 455235 | VALEO |
| 55151131 | MEAT & DORIA |
| 554295RIV | KUHNER |
| 57614 | EAI |
| 95520020 | OPEL |
| 95523602 | OPEL |
| 95524962 | OPEL |
| A12VA0647A2 | SIDAT |
| A130.477 | PSH |
| A147.582 | PSH |
| AEK3617 | AUTOELECTRO |
| AH1451 | OPEL |
| AHD | GM |
| ALTE222 | 3EFFE |
| ALV8296 | KRAUF |
| CAL15581GS | CASCO |
| CAL15581RS | CASCO |
| CGB-86727 | AINDE |
| DA2441 | DELCO |
| DRA1331 | DELCO |
| LRA03617 | LUCAS |
| LRA3617 | LUCAS |
| TG12C137 | VALEO |
| TG12C184 | VALEO |
| UD103957A | AS-PL |
| UD90355A | AS-PL |
| VALTG12C184 | WOODAUTO |
Video/Publications
A3525SRelated Items
