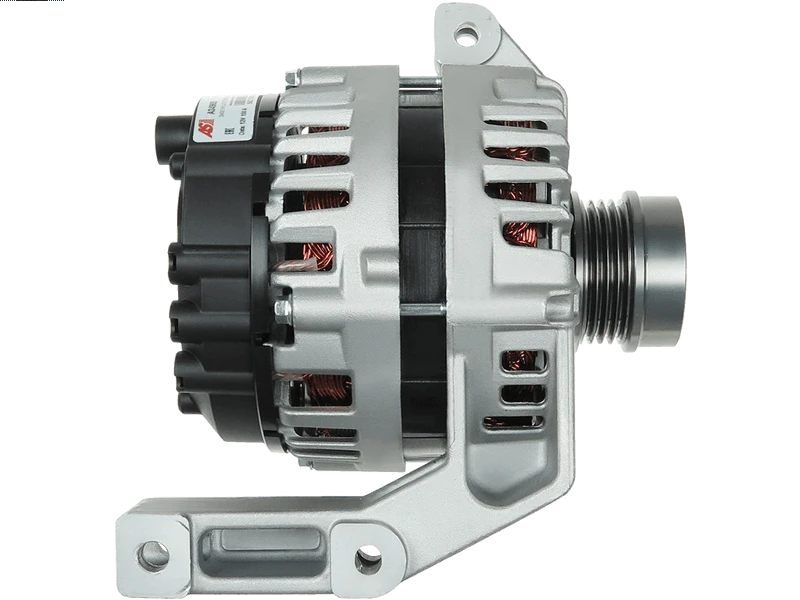

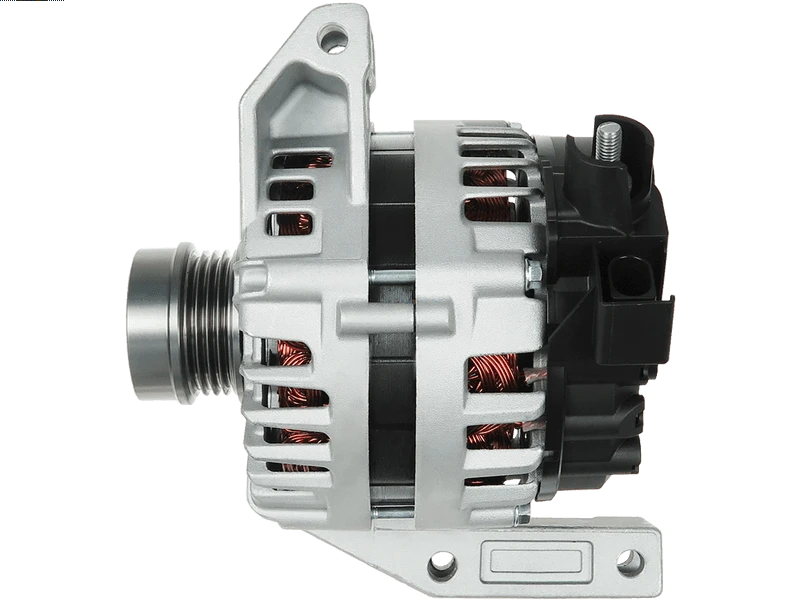

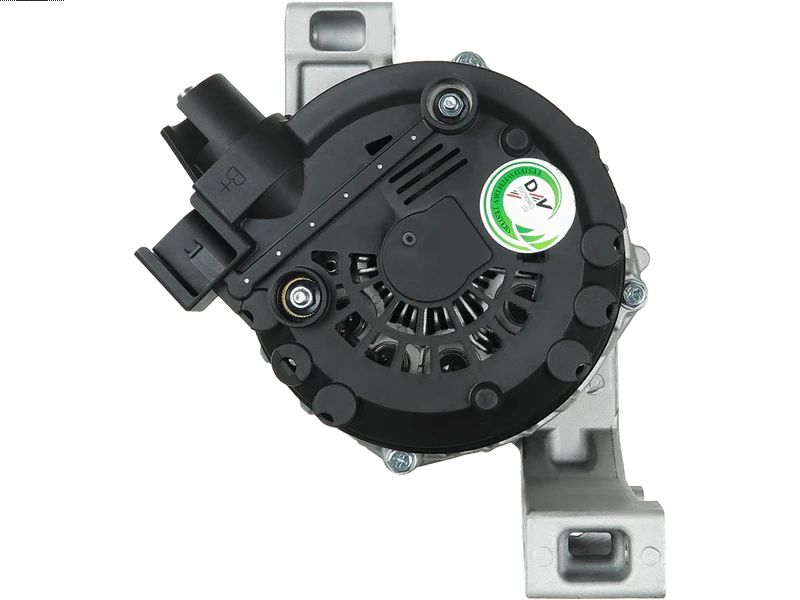

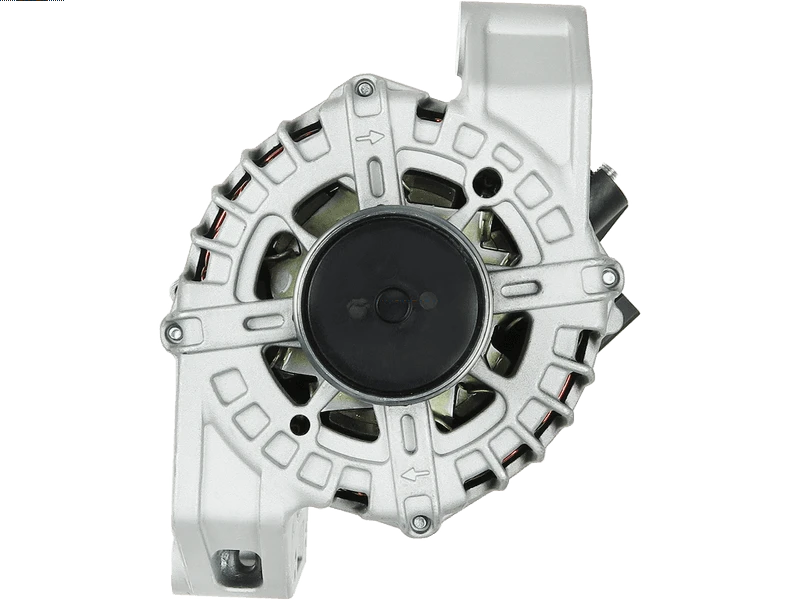

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 612.88 including GST
NZ$ 532.94 excluding GST
or four payments of $153.22
with
Learn More
each
A3496S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
FG15S091Associated Numbers
47-578
Specifications
| Amp | 150 A |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 9.50 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 69 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 41 mm |
| Pad mount thickness (E.2) | 41 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 76 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 2.0 Ti | [MGDA] | 01.2011-12.2015 |
| FORD | Focus 2.0 Ti | [XQDA] | 01.2011-12.2015 |
Reference Information
| 11747N | WAI / TRANSPO |
| 12090887 | EUROTEC |
| 1743881 | FORD |
| 1777583 | FORD |
| 2015A11.0 | SANDO |
| 2017911ABN | REAL |
| 209318 | ERA |
| 2410219 | FORD |
| 2415004 | FORD |
| 28-7661 | ELSTOCK |
| 40416 | CEVAM |
| 554597RI | KUHNER |
| 57627 | EAI |
| 595.920.150 | PSH |
| 595.920.150.004 | PSH |
| 595.920.150.008 | PSH |
| 595.920.150.009 | PSH |
| 90-22-5650 | WILSON |
| A134.117 | PSH |
| A145.918 | PSH |
| A150.003 | PSH |
| A-9559 | DIXIE |
| ALT00726 | ELECTROLOG |
| ALT2355CP | ROLLCO |
| ALTJ490 | 3EFFE |
| ALV6030 | KRAUF |
| BV6N-10300-EA | FORD |
| BV6T10300EA | FORD |
| BV6T-10300-EA | FORD |
| BV6T-10300-EB | FORD |
| BV6T10300EC | FORD |
| BV6Z10346F | FORD |
| CAL15A11AS | CASCO |
| DA2812 | DELCO |
| DRA1702 | DELCO |
| FG15S065SV | VALEO |
| FG15S091 | VALEO |
| FGN15S091 | VALEO |
| LRA04052 | LUCAS |
| LRA4052 | LUCAS |
| RMBV6T-10300-EB | FORD |
| UD17163A | AS-PL |
Video/Publications
