Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 737.08 including GST
NZ$ 640.94 excluding GST
or four payments of $184.27
with
Learn More
each
A3194S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

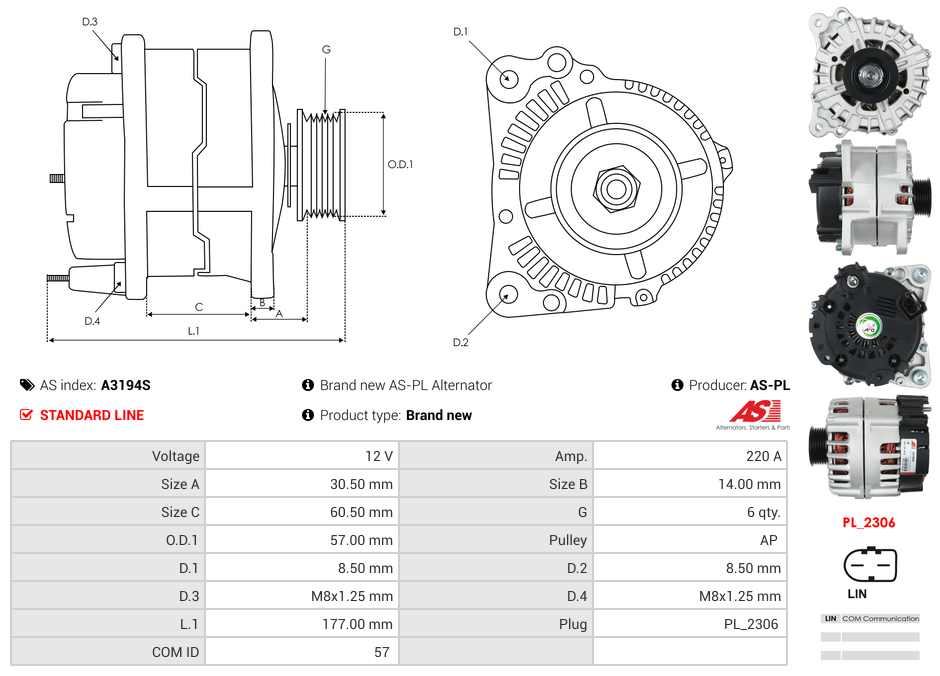

FG23S031Specifications
| Amp | 220 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 177 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 30.50 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Touareg 3.0 V6 TDi | [CASA] | 01.2010-03.2018 |
| VW | Touareg 3.0 V6 TDi | [CASD] | 01.2010-03.2018 |
| VW | Touareg 3.0 V6 TDi | [CJMA] | 01.2010-03.2018 |
| VW | Touareg 3.0 V6 TDi | [CNRB] | 01.2010-03.2018 |
| VW | Touareg 3.0 V6 TDi | [CRCD] | 01.2010-03.2018 |
| VW | Touareg 3.0 V6 TDi | [CVWA] | 01.2010-03.2018 |
| VW | Touareg 3.0 V6 TSi Hybrid | [CGEA] | 04.2010-03.2018 |
| VW | Touareg 3.0 V6 TSi Hybrid | [CGFA] | 04.2010-03.2018 |
Reference Information
| 059903023J | VW |
| 059903023JX | VW |
| 11709N | WAI / TRANSPO |
| 2015436.1 | SANDO |
| 20179634OE | REAL |
| 209205 | ERA |
| 2608240 | VALEO |
| 28-5934 | ELSTOCK |
| 305.589.220 | PSH |
| 305.589.220.004 | PSH |
| 305.589.220.346 | PSH |
| 305.589.220.460 | PSH |
| 40474 | CEVAM |
| 439716 | VALEO |
| 440306 | VALEO |
| 55151210 | MEAT & DORIA |
| 553443RI | KUHNER |
| 553443RIV | KUHNER |
| 57386 | EAI |
| 59903023J | VW |
| 59903023JX | VW |
| 90-22-5694 | WILSON |
| A12VA0858AS | SIDAT |
| A132.279 | PSH |
| A148.073 | PSH |
| A3194S | AS-PL |
| A-9597 | DIXIE |
| ALT00432 | ELECTROLOG |
| ALTE240 | 3EFFE |
| ALV3599 | KRAUF |
| CAL15436GS | CASCO |
| DA1921 | DELCO |
| DRA0811 | DELCO |
| FG23S031 | VALEO |
| FGN23S031 | VALEO |
| LRA03322 | LUCAS |
| LRA3322 | LUCAS |
| PRAE240 | 3EFFE |
| STX110278 | STARDAX |
| STX110278R | STARDAX |
| UD17233A | AS-PL |
| VAL439716 | WOODAUTO |
Video/Publications
