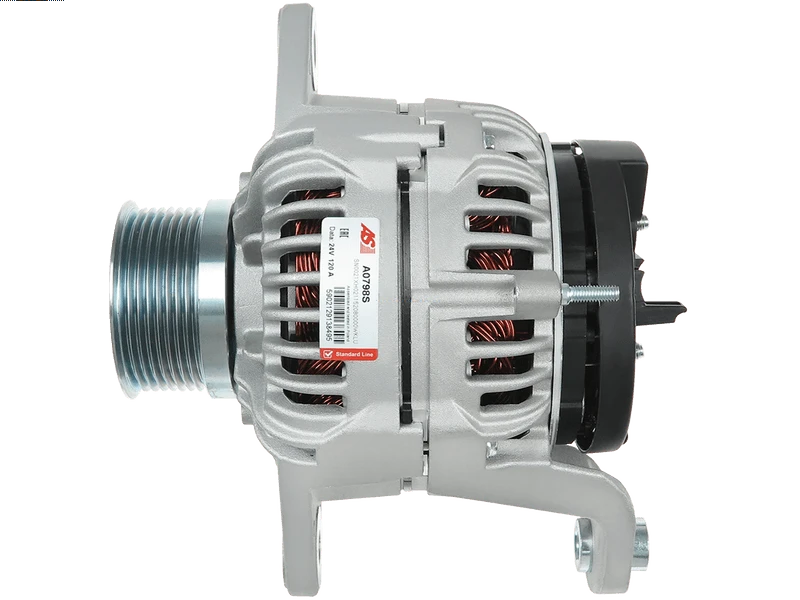

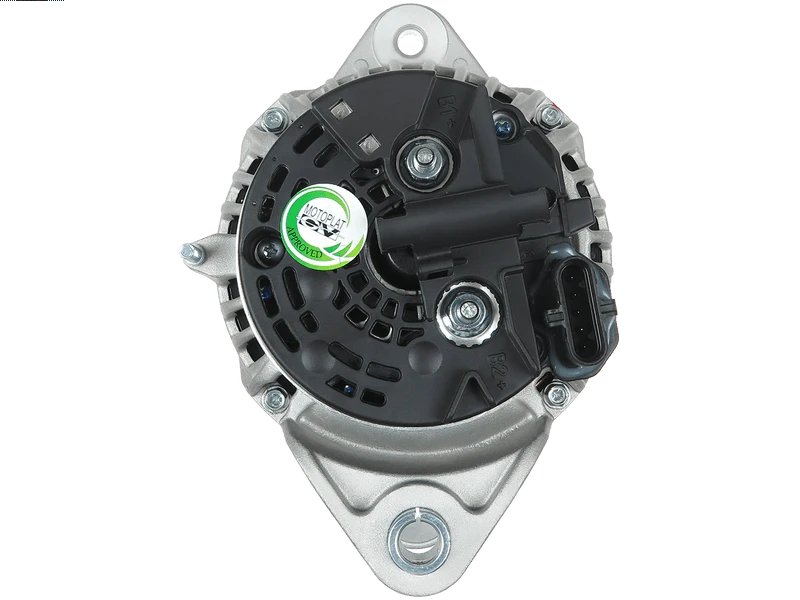

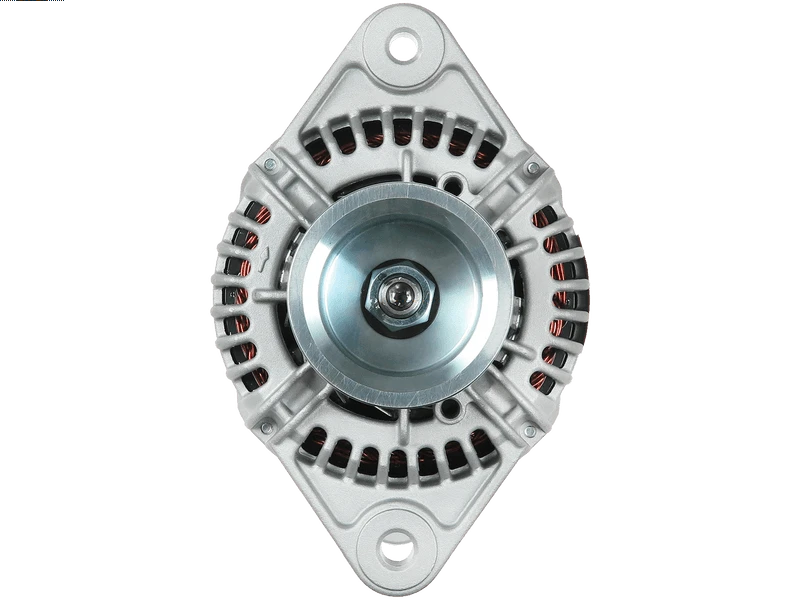

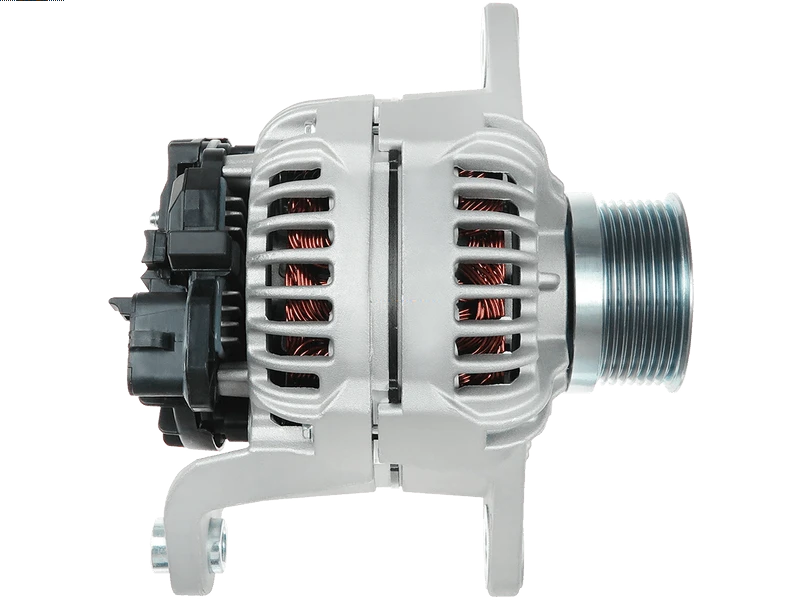

A0798S - Brand new AS-PL Alternator

Specifications

Amp	120 A
Diameter (D.1)	11 mm
Diameter (D.2)	13 mm
Diameter (D.3)	13 mm
Grooves	8 qty
Length (L.1)	222 mm
Outside Diameter (O.D.1)	73 mm
Pivot Foot Length (B)	14 mm
Pivot Inside Length (C)	102 mm
Plug Code	PL_5003
Pulley Type	SOLID
Pulley to Mount Distance (A)	44.5 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	FH 380 12.8	[D13C380]	09.2012-
VOLVO	FH 420 12.8	[D13C420]	01.2012-
VOLVO	FH 420 12.8	[D13C420]	05.2012-
VOLVO	FH 420 12.8	[D13K420]	01.2012-
VOLVO	FH 420 12.8	[D13K420]	05.2012-
VOLVO	FH 460 12.8	[D13C460]	01.2012-
VOLVO	FH 460 12.8	[D13C460]	05.2012-
VOLVO	FH 460 12.8	[D13K460]	01.2012-
VOLVO	FH 460 12.8	[D13K460]	05.2012-
VOLVO	FH 500 12.8	[D13C500]	05.2012-
VOLVO	FH 500 12.8	[D13K500]	01.2012-
VOLVO	FH 500 12.8	[D13K500]	05.2012-
VOLVO	FH 500 12.8	[D13K500]	09.2012-
VOLVO	FH 540 12.8	[D13C540]	01.2012-
VOLVO	FH 540 12.8	[D13C540]	05.2012-
VOLVO	FH 540 12.8	[D13K540]	05.2012-
VOLVO	FH 540 12.8	[D13K541]	01.2012-
VOLVO	FM 330 10.9	[D11C330]	04.2012-
VOLVO	FM 330 10.9	[D11C330]	09.2005-
VOLVO	FM 330 10.9	[D11K330]	04.2012-
VOLVO	FM 330 10.9	[D11K330]	06.2016-
VOLVO	FM 330 10.9	[D11K330]	09.2005-
VOLVO	FM 370 10.8	[D11C370]	09.2005-
VOLVO	FM 370 10.9	[D11C370]	04.2012-
VOLVO	FM 370 10.9	[D11C370]	09.2005-
VOLVO	FM 370 10.9	[D11K370]	04.2012-
VOLVO	FM 370 10.9	[D11K370]	06.2016-
VOLVO	FM 370 10.9	[D11K370]	09.2005-
VOLVO	FM 380 12.8	[D13C380]	04.2012-
VOLVO	FM 400 12.8	[D13A400]	09.2005-
VOLVO	FM 400 12.8	[D13B400]	09.2005-
VOLVO	FM 410 10.9	[D11C410]	04.2012-
VOLVO	FM 410 10.9	[D11C410]	09.2005-
VOLVO	FM 410 10.9	[D11K410]	04.2012-
VOLVO	FM 410 10.9	[D11K410]	06.2016-
VOLVO	FM 410 10.9	[D11K410]	09.2005-
VOLVO	FM 420 12.8	[D13C420]	04.2012-
VOLVO	FM 420 12.8	[D13C420]	10.2015-
VOLVO	FM 420 12.8	[D13K420]	04.2012-
VOLVO	FM 420 12.8	[D13K420]	06.2016-
VOLVO	FM 420 12.8	[D13K420]	10.2015-
VOLVO	FM 440 12.8	[D13A440]	09.2005-
VOLVO	FM 440 12.8	[D13B440]	09.2005-
VOLVO	FM 450 10.8	[D11C450]	09.2005-
VOLVO	FM 450 10.8	[D11K450]	09.2005-
VOLVO	FM 450 10.9	[D11C450]	04.2012-
VOLVO	FM 450 10.9	[D11C450]	09.2005-
VOLVO	FM 450 10.9	[D11K450]	04.2012-
VOLVO	FM 450 10.9	[D11K450]	06.2016-
VOLVO	FM 450 10.9	[D11K450]	09.2005-
VOLVO	FM 460 12.8	[D11C450]	04.2012-
VOLVO	FM 460 12.8	[D11K450]	04.2012-
VOLVO	FM 460 12.8	[D13K460]	06.2016-
VOLVO	FM 500 12.8	[D13C500]	04.2012-
VOLVO	FM 500 12.8	[D13K500]	04.2012-
VOLVO	FM 500 12.8	[D13K500]	06.2016-
VOLVO	FMX 330 10.9	[D11K330]	04.2012-
VOLVO	FMX 330 10.9	[D11K330]	06.2016-
VOLVO	FMX 330 10.9	[D11K330]	09.2013-
VOLVO	FMX 370 10.9	[D11K370]	06.2016-
VOLVO	FMX 370 10.9	[D11K370]	09.2013-
VOLVO	FMX 400 12.8	[D13B400]	04.2010-
VOLVO	FMX 410 10.9	[D11K410]	06.2016-
VOLVO	FMX 410 10.9	[D11K410]	09.2013-
VOLVO	FMX 420 12.8	[D13K420]	06.2016-
VOLVO	FMX 420 12.8	[D13K420]	09.2013-
VOLVO	FMX 440 12.8	[D13A440]	04.2010-
VOLVO	FMX 450 10.9	[D11K450]	06.2016-
VOLVO	FMX 450 10.9	[D11K450]	09.2013-
VOLVO	FMX 460 12.8	[D13K460]	06.2016-
VOLVO	FMX 460 12.8	[D13K460]	09.2013-
VOLVO	FMX 500 12.8	[D13K500]	06.2016-
VOLVO	FMX 500 12.8	[D13K500]	09.2013-
VOLVO	FMX 540 12.8	[D13C540]	04.2010-
VOLVO	FMX 540 12.8	[D13K540]	06.2016-
VOLVO	FMX 540 12.8	[D13K540]	09.2013-

Reference Information

21257558 20101367OE 816.520.120.280 A0798S 85013471 2010763.1 124655085 A24BH0090 85020832 ALB3383 124655212 816.520.120.014 ALT10912 DA2732 5610073 19092305 A24BH0090AS DRA1622 UD18942A 816.520.120.210 555029RIB 22591472 CAL10763GS

Video/Publications

0124655085 0124655212 19092305 20101367OE 2010763.1 21257558 22591472 555029RIB 816.520.120.014 816.520.120.210 816.520.120.280 85013471 85020832 ALB3383 ALT10912 CAL10763GS DA2732 DRA1622 UD18942A
