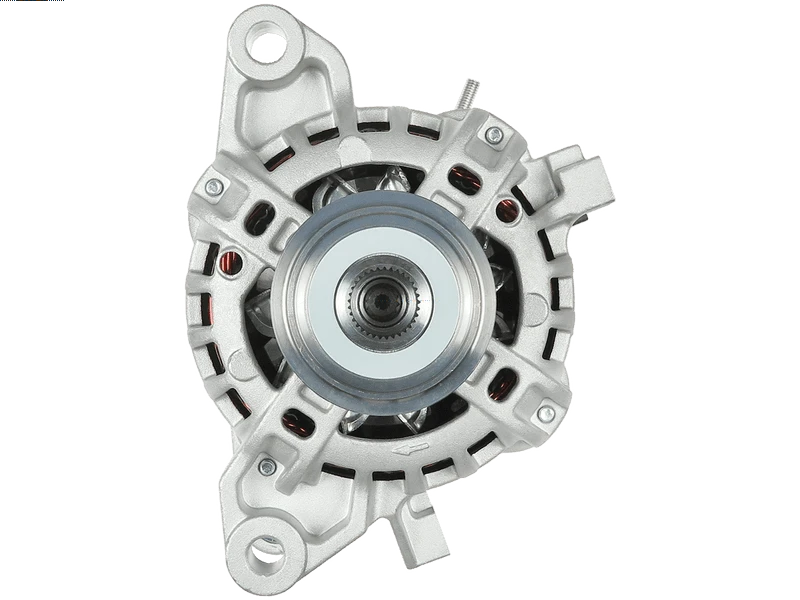

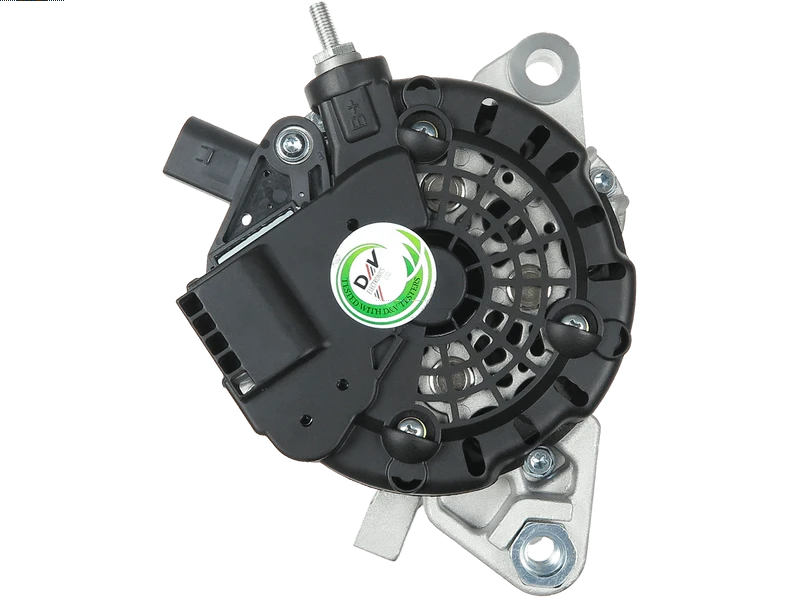

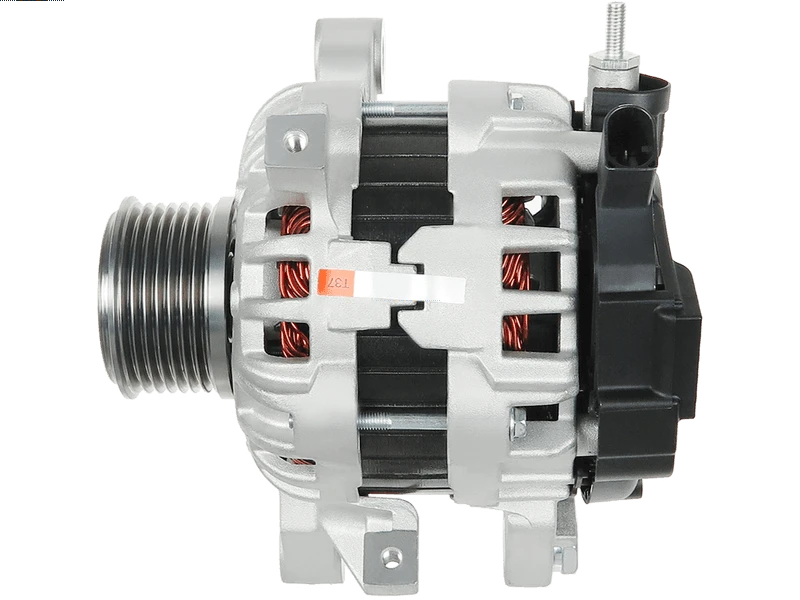

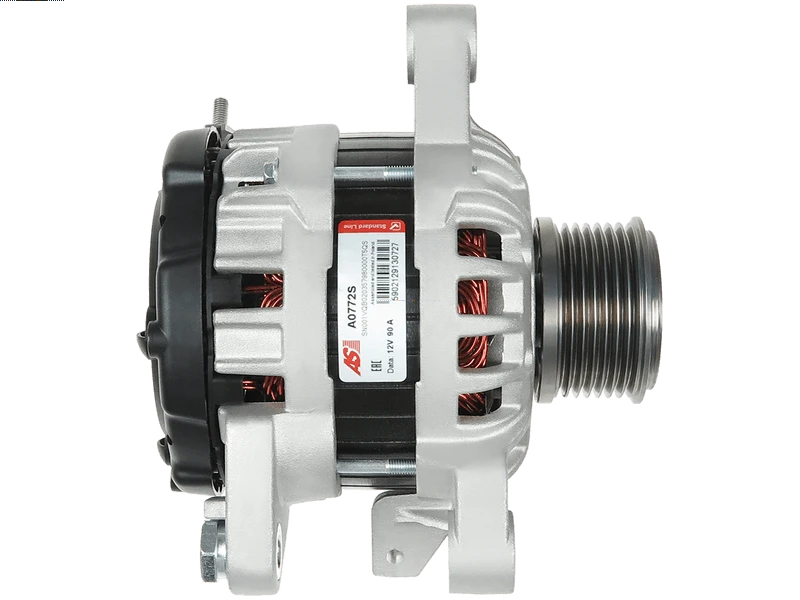

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 802.40 including GST

NZ$ 697.74 excluding GST

or four payments of $200.60 with
Learn More

UOM:

each

Product Code:

A0772S

Quantity In Stock Nationally

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

F000BL0132

Amp	90 A
Bottom Mounting Foot Width (B)	20 mm
Diameter (D.1)	12.50 mm
Diameter (D.2)	11 mm
Diameter (D.3)	M10x1.25 mm
Length (L.1)	170 mm
Mount Inside Length or Pad Mount C-C (C)	51.50 mm
OEM Product	No
Plug Code	PL_2306
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	7 qty
Pulley Outside Diameter (O.D.2)	58.50 mm
Pulley to Mount Distance (A)	38 mm
Pulley Type	Clutch
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
TOYOTA	Hilux 2.8		01.2016-
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25)	2KD-FTV	12.2007-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25_)	2KD-FTV	11.2004-12.2005
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25_, KUN25R)	2KD-FTV	06.2006-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15)	2KD-FTV	08.2005-10.2006
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15, KUN10)	2KD-FTV	03.2005-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15_, KUN15R)	2KD-FTV	06.2006-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15, KUN35)	2KD-FTV	01.2010-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 2.5 D 4WD (KUN25)	2KD-FTV	03.2005-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26)	1KD-FTV	03.2005-05.2015
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26)	1KD-FTV	05.2008-12.2012
TOYOTA	HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26)	1KD-FTV	08.2005-09.2015

A0772S

A0772S - Brand new AS-PL Alternator
