Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 707.58 including GST
NZ$ 615.29 excluding GST
or four payments of $176.90
with
Learn More
each
AAM-C6006
A0750S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0125711052Associated Numbers
|
0125711052 |
Bosch |
|---|---|
|
0125711085 |
Bosch |
|
0125711091 |
Bosch |
|
0125711124 |
Bosch |
|
0125711185 |
Bosch |
|
0125711186 |
Bosch |
|
06E903018J |
Volkswagen AG |
|
06E903018JX |
Volkswagen AG |
|
06E903018T |
Volkswagen AG |
|
06E903019D |
Volkswagen AG |
|
06E903019DX |
Volkswagen AG |
|
06E903019H |
Volkswagen AG |
|
06E903019HX |
Volkswagen AG |
|
11717N |
WAI |
|
11717OS |
WAI |
|
205562150 |
PSH |
|
ALT10884 |
Wood Auto |
|
BOS0125711124 |
Wood Auto |
|
BOS0125711185 |
Wood Auto |
|
DRA1109 |
Delco Remy |
|
LRA03736 |
Lucas |
|
LRA3736 |
Lucas |
|
RNL711052 |
RNL |
|
WOOALT10884 |
Wood Auto |

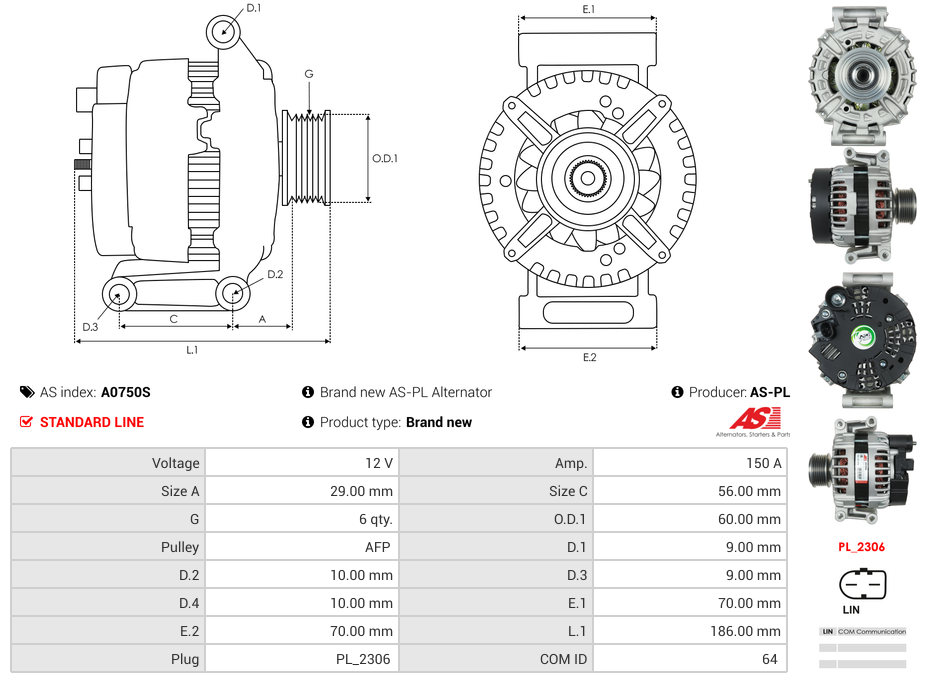

Specifications
| Amp | 150 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 10 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 29 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 3.0 TFSi Quattro | [CMUA] | 02.2012-12.2015 |
| AUDI | A4 3.0 TFSi Quattro | [CRED] | 02.2012-12.2015 |
| AUDI | A5 3.0 TFSi Quattro | [CHMB] | 12.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro | [CMUA] | 11.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro | [CMUA] | 12.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro | [CRED] | 11.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro | [CRED] | 12.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro Sportback | [CHMB] | 12.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro Sportback | [CMUA] | 12.2011-01.2017 |
| AUDI | A5 3.0 TFSi Quattro Sportback | [CRED] | 12.2011-01.2017 |
| AUDI | Q5 3.0 TFSi Quattro | [CTUC] | 06.2012-05.2017 |
| AUDI | Q5 3.0 TFSi Quattro | [CTVA] | 06.2012-05.2017 |
| AUDI | S4 3.0 Quattro | [CAKA] | 11.2008-12.2015 |
| AUDI | S4 3.0 Quattro | [CCBA] | 11.2008-12.2015 |
| AUDI | S4 3.0 Quattro | [CGWC] | 11.2008-12.2015 |
| AUDI | S4 3.0 Quattro | [CGXC] | 11.2008-12.2015 |
| AUDI | S4 3.0 Quattro | [CREC] | 11.2008-12.2015 |
| AUDI | S4 3.0 Quattro | [CTUB] | 11.2008-12.2015 |
| AUDI | S5 3.0 Quattro | [CAKA] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CAKA] | 10.2011-01.2017 |
| AUDI | S5 3.0 Quattro | [CCBA] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CGWC] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CGWC] | 10.2011-01.2017 |
| AUDI | S5 3.0 Quattro | [CGXC] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CGXC] | 10.2011-01.2017 |
| AUDI | S5 3.0 Quattro | [CREC] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CREC] | 10.2011-01.2017 |
| AUDI | S5 3.0 Quattro | [CTDA] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CTDA] | 10.2011-01.2017 |
| AUDI | S5 3.0 Quattro | [CTUB] | 06.2009-01.2017 |
| AUDI | S5 3.0 Quattro | [CTUB] | 10.2011-01.2017 |
| AUDI | S5 3.0 Quattro Sportback | [CAKA] | 01.2010-01.2017 |
| AUDI | S5 3.0 Quattro Sportback | [CGWC] | 01.2010-01.2017 |
| AUDI | S5 3.0 Quattro Sportback | [CGXC] | 01.2010-01.2017 |
| AUDI | S5 3.0 Quattro Sportback | [CREC] | 01.2010-01.2017 |
| AUDI | S5 3.0 Quattro Sportback | [CTDA] | 01.2010-01.2017 |
| AUDI | S5 3.0 Quattro Sportback | [CTUB] | 01.2010-01.2017 |
| AUDI | SQ5 3.0 TFSi Quattro | [CTUD] | 05.2013-05.2017 |
| AUDI | SQ5 3.0 TFSi Quattro | [CTXA] | 05.2013-05.2017 |
Reference Information
| 0125711052 | BOSCH |
| 0125711085 | BOSCH |
| 0125711091 | BOSCH |
| 0125711124 | BOSCH |
| 0125711185 | BOSCH |
| 0125711186 | BOSCH |
| 0125711186-R | BOSCH |
| 06E903018J | VW |
| 06E903018JX | VW |
| 06E903018T | VW |
| 06E903019D | VW |
| 06E903019DX | VW |
| 06E903019H | VW |
| 06E903019HX | VW |
| 11717N | WAI / TRANSPO |
| 11717-OS | WAI / TRANSPO |
| 20010588AV | ITAB AUTOMOTIVE |
| 20010588OV | ITAB AUTOMOTIVE |
| 20101885BN | REAL |
| 20101885OE | REAL |
| 2010588.0 | SANDO |
| 2010588.1 | SANDO |
| 205.562.150.010 | PSH |
| 205.562.150.014 | PSH |
| 205.562.150.210 | PSH |
| 205.562.150.440 | PSH |
| 205.562.150.441 | PSH |
| 205.562.150.460 | PSH |
| 2113971502 | DRI |
| 28-6846 | ELSTOCK |
| 3115025 | HENKEL PARTS |
| 32002015 | HERTH+BUSS |
| 5510640G | MEAT & DORIA |
| 556253RI | KUHNER |
| 6.8087.1 | IKA |
| 89216311 | POWERMAX |
| A0750S | AS-PL |
| A12BH0757 | SIDAT |
| A12BH0757A2 | SIDAT |
| A12BH0757AS | SIDAT |
| A132.033 | PSH |
| A146.761 | PSH |
| A-6670 | DIXIE |
| ABO588A | AUTOTEAM |
| AL03316 | TMI |
| ALB5801 | KRAUF |
| ALT10206 | ELECTROLOG |
| ALT10282 | ELECTROLOG |
| ALT10884 | WOODAUTO |
| ALT125880A | SIOM |
| ALTJ159 | 3EFFE |
| AZMT-49-035-2139 | A.Z. MEISTERTEILE |
| CAL10588AS | CASCO |
| CAL10588GS | CASCO |
| DRA1109 | DELCO |
| G100879 | BTS TURBO |
| G100880 | BTS TURBO |
| G106540 | BTS TURBO |
| LRA03736 | LOGISTIK |
| LRA3736 | LOGISTIK |
| RNL711052 | RNL |
| UD17102A | AS-PL |
| WOOALT10884 | WOODAUTO |
Video/Publications
A0750SView your shopping basket or Browse other items in Alternators.
