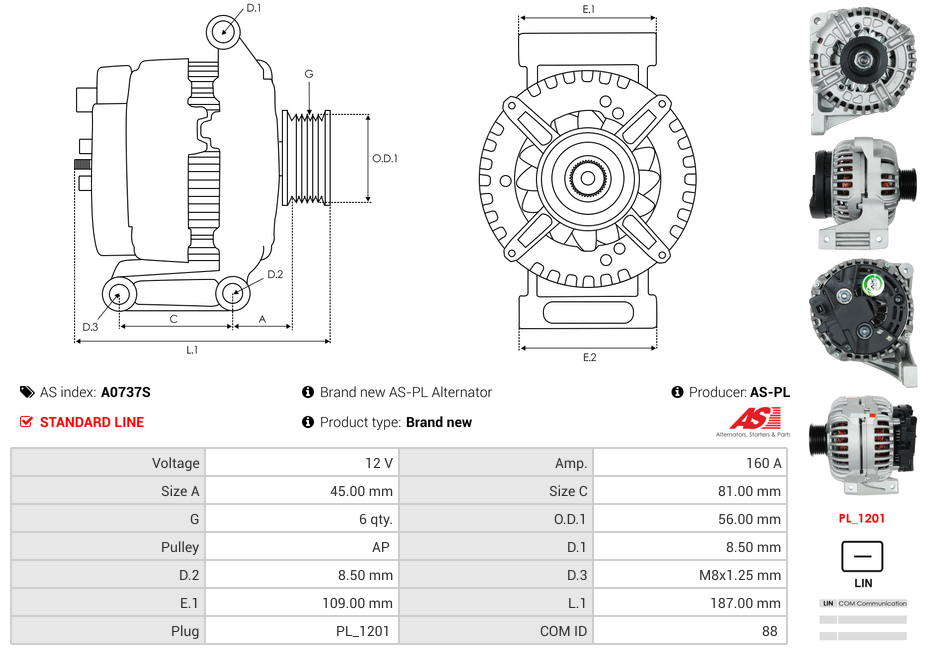

Specifications
| Amp | 160 A |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Grooves | 6 qty |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 56 mm |
| Pad mount thickness (E.1) | 109 mm |
| Plug Code | PL_1201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S80 3.0 | [B6294S2] | 01.2004-12.2006 |
| VOLVO | S80 3.0 T6 | [B6294T] | 01.2004-12.2006 |
| VOLVO | XC90 3.0 T6 | [B6294T] | 01.2003-12.2006 |
Reference Information
0124625025 LRA03869 UD20665A 57141 90-15-6620 LRA3869 116352 ALB8025 986047510 28-6979 CAL10257GS 20101752OE 124625025 PRAF952 BOS0124625025 40175 BOM DRB7510 115708 30658086 UNIT 220-5153A 30667893 815.518.160 8603264 A-6625 2010257.1 ALB5025 CA2028IR 5510608 36050269 0986047510 89215740 ALT122570 ALTF952Video/Publications
0124625025 0986047510 115708 116352 20101752OE 2010257.1 28-6979 30658086 30667893 36050269 40175 57141 815.518.160 8603264 89215740 90-15-6620 A-6625 ALB5025 ALB8025 ALT122570 ALTF952 BOS0124625025 CA2028IR CAL10257GS LRA03869 LRA3869 PRAF952 UD20665A UNIT BOM 220-5153AAdd Your Number
