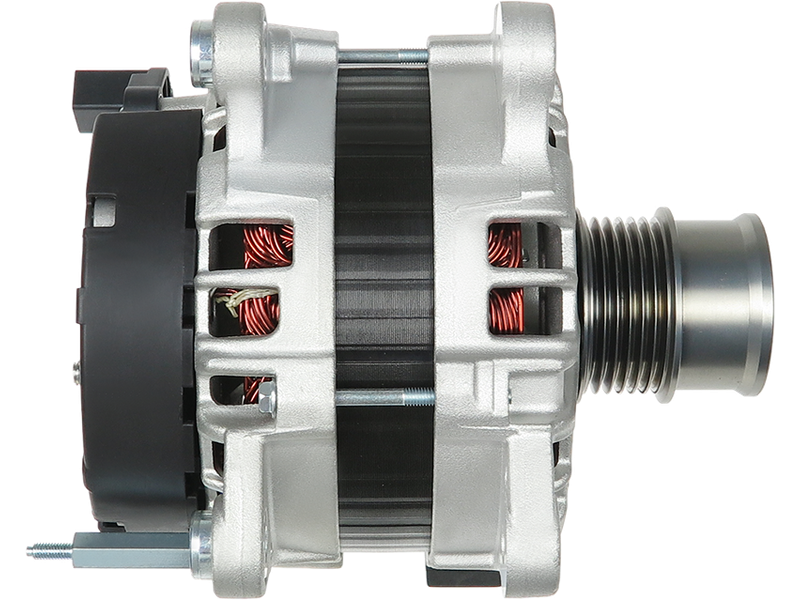

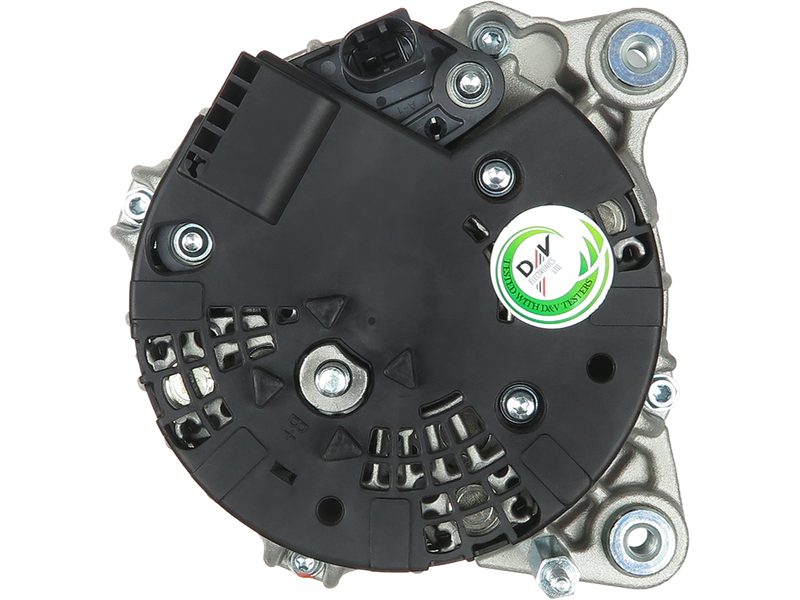

A0661S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A0661S
Price: 721.01 NZD
Availability: InStock

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 721.01 including GST

NZ$ 626.97 excluding GST

UOM:

each

Product Code:

A0661S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

Amp	180 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	6 qty
Length (L.1)	208 mm
Mount Inside Length or Pad Mount C-C (C)	61 mm
OEM Product	No
Outside Diameter (O.D.1)	52.5 mm
Plug Code	PL_2306
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	30 mm
Pulley Type	CLUTCH
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A1 1.4 TFSi	[CZCA]	11.2014-10.2018
AUDI	A1 1.4 TFSi	[CZDD]	11.2014-10.2018
AUDI	A1 1.4 TFSi Sportback	[CZCA]	11.2014-10.2018
AUDI	A1 1.4 TFSi Sportback	[CZDD]	11.2014-10.2018
AUDI	A1 1.4 TSi	[CZEA]	11.2014-10.2018
AUDI	A1 1.4 TSi Sportback	[CZEA]	11.2014-10.2018
SEAT	Alhambra 1.4 TSi	[CZDA]	05.2015-
SEAT	Alhambra 1.4 TSi	[DJKA]	05.2015-
SEAT	Ateca 1.0 TSi	[CHZJ]	05.2016-
SEAT	Ateca 1.0 TSi	[DKRF]	05.2016-
SEAT	Ateca 1.4 TSi	[CZEA]	06.2016-
SEAT	Ateca 1.4 TSi 4Drive	[CZEA]	06.2016-
SKODA	Superb 1.4 TSi	[CZCA]	03.2015-
SKODA	Superb 1.4 TSi	[CZDA]	03.2015-
SKODA	Superb 1.4 TSi	[CZEA]	03.2015-
SKODA	Superb 1.4 TSi 4x4	[CZEA]	03.2015-
VW	Caddy 1.4 TGI CNG	[CPWA]	06.2015-
VW	Golf Sportsvan 1.0 TSi	[CHZD]	05.2015-
VW	Golf Sportsvan 1.0 TSi	[DKRF]	05.2015-
VW	Golf Sportsvan 1.2 TSi	[CYVA]	05.2014-
VW	Golf Sportsvan 1.2 TSi	[CYVB]	04.2014-
VW	Golf Sportsvan 1.4 TSi	[CZCA]	04.2014-
VW	Golf Sportsvan 1.4 TSi	[CZDA]	02.2014-
VW	Golf Sportsvan 1.4 TSi MultiFuel	[CPVB]	04.2014-
VW	Golf VII 1.0 TSi	[CHZD]	05.2014-
VW	Golf VII 1.0 TSi	[DKRF]	05.2014-
VW	Golf VII 1.2 TSi	[CJZA]	05.2013-
VW	Golf VII 1.2 TSi	[CJZA]	11.2012-
VW	Golf VII 1.2 TSi	[CJZB]	05.2013-
VW	Golf VII 1.2 TSi	[CJZB]	08.2012-
VW	Golf VII 1.2 TSi	[CYVA]	05.2013-
VW	Golf VII 1.2 TSi	[CYVA]	08.2012-
VW	Golf VII 1.2 TSi	[CYVB]	04.2014-
VW	Golf VII 1.4 TGI CNG	[CPWA]	06.2013-
VW	Golf VII 1.4 TGI CNG	[CPWA]	09.2013-
VW	Golf VII 1.4 TGI CNG	[CZBA]	06.2013-
VW	Golf VII 1.4 TSi	[CHPA]	05.2013-
VW	Golf VII 1.4 TSi	[CHPA]	08.2012-
VW	Golf VII 1.4 TSi	[CHPB]	05.2014-
VW	Golf VII 1.4 TSi	[CMBA]	11.2012-
VW	Golf VII 1.4 TSi	[CPTA]	08.2012-
VW	Golf VII 1.4 TSi	[CXSA]	05.2013-
VW	Golf VII 1.4 TSi	[CXSA]	11.2012-
VW	Golf VII 1.4 TSi	[CZCA]	05.2014-
VW	Golf VII 1.4 TSi	[CZDA]	05.2014-
VW	Golf VII 1.4 TSi	[CZDD]	05.2014-
VW	Golf VII 1.4 TSi	[CZEA]	05.2014-
VW	Golf VII 1.4 TSi	[DGXA]	05.2014-
VW	Golf VII 1.4 TSi MultiFuel	[CPVA]	04.2013-
VW	Golf VII 1.4 TSi MultiFuel	[CPVB]	05.2014-
VW	Golf VII 1.4 TSi MultiFuel	[CPVB]	12.2013-
VW	Passat 1.4 TSi	[CZCA]	11.2014-
VW	Passat 1.4 TSi	[CZDA]	11.2014-
VW	Passat 1.4 TSi	[CZEA]	11.2014-
VW	Passat 1.4 TSi 4-Motion	[CZEA]	02.2015-

2015025.1 FG18T166 04E903015EX FG18T142 20642N LRA3891 DA2663 89215809 04E903015RX 04E903021QX 20179520OE UD17107A 28-7501 04E903015E 04E903015DX 20642-OS 0125811073 0125811074 04E903015D 0125811131 ALT10920 305.954.180.014 LRA03891 ALT10223 04E903021Q 04E903021P 04E903021PX ALTJ335 DRA1553 57752 ALTJ111 ALV3930 A12BH0881AS 04E903023J 04E903015P 4535 04E903023L 125811131 CAL15025GS 125811074 125811073

0125811073 0125811074 0125811131 04E903015D 04E903015DX 04E903021P 04E903021PX 04E903021Q 04E903021QX 2015025.1 20179520OE 20642-OS 28-7501 305.954.180.014 4535 57752 89215809 ALT10920 ALTJ111 ALTJ335 ALV3930 CAL15025GS DA2663 DRA1553 FG18T142 FG18T166 LRA03891 LRA3891 UD17107A
