AAM-C5002 - Brand new +Plus Line Pro Alternator

Name: Brand new Plus Line Pro Alternator
Brand: AS GROUP NZ
SKU: AAM-C5002
Price: 623.33 NZD
Availability: OutOfStock

Brand new +Plus Line Pro Alternator

+PLUS LINE PRO

Manufacturer:

ASG-NZ

Replacement For:

BOSCH

Price:

NZ$ 623.33 including GST

NZ$ 542.02 excluding GST

UOM:

each

Alternative Item:

A0497

Product Code:

AAM-C5002

Quantity In Stock Nationally:

No stock in NZ

Availability:

No stock in NZ

Associated Numbers
Specifications
Vehicle Applications
Alternatives >>>
Add Your Number

0121615014 0121615114 0986080810 11.1967 11347N 115606 1541451 20101044OE 2010440 28-5710 301967RI 301967RIB 30773111 36000207 57368 6M5T-10300-SA 815.519.150.014 815.519.150.210 815.519.150.215 89213012 8EL738211-951 9423 AEK3098 ALT10579 CA1967IR CAL10440GS DRA0052 F00E100026 LRA03098 UD12541A A0497 A0498 AS-PLList UD12546A AS-PL UD13010A AUTOELECTRO AEK3639 0125711014 BOSCHList 0125711040 0125711048 0986082560 BOSCH CARGO CEVAM DA2144 DELCO DRA1034 A-6561 DIXIE EAA-223206 EAA 28-6800 ELSTOCK AM5T-10300-SA FORDList AG1249 GHIBAUDI ALB1014 KRAUF 554291RI KUHNER 554291RIB LRA03660 LUCAS 89215547 POWERMAX 815.538.150 PSH ALT2144CP ROLLCO 31288879 VOLVO 36001497 WAI / TRANSPO BOS0125711048 WOODAUTO Bosch show 0125711048OR +line ruil 12090343 EuroTec 286800 Elstock Volvo 815538150 931034 EDR AM5T10300SA Electrolog Remy Lucas 0121615014OR 113043 FARC 11347 EAI 12090227 Ford 210440 Messmer 2205477 PIC 2381511502 DRI 285710 6418SP Spidan 6M5T10300SA 6M5TSA 815519150 8EL738211951 Hella 90156593 Wilson 930052 HC HCA1967IR LRA3098 SP6418 65-1758 J N 400-24153 Light Duty 12882 90-15-6593 References: Arrowhead ABO0390 VBO0390 J& AL0859X Lester 0121615014SEL 0121615055 Cargo (USA)

Fitted with OEM Regulator and INA Clutch Pulley (if fitted)

Amp	150 A
Diameter (D.1)	11.5 mm
Diameter (D.2)	9 mm
Diameter (D.3)	9 mm
Grooves	5 qty
Length (L.1)	169 mm
Mount Inside Length or Pad Mount C-C (C)	90.5 mm
OEM Product	No
Outside Diameter (O.D.1)	56 mm
Pad mount thickness (E.1)	33 mm
Pad mount thickness (E.2)	33 mm

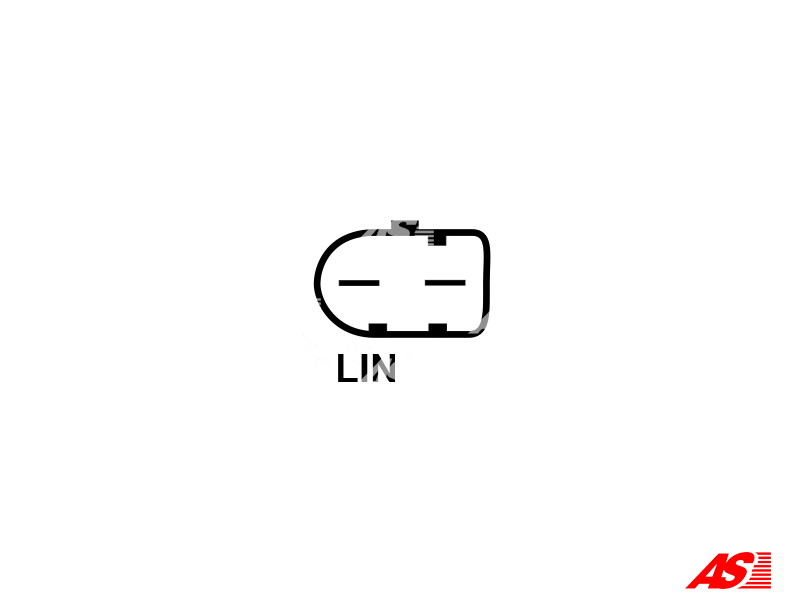

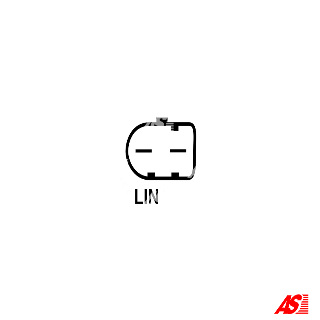

Plug Code	PL_2305
Product Line	+Plus Line Pro
Product Type	Brand new
Pulley to Mount Distance (A)	33 mm
Pulley Type	CLUTCH
Voltage	12 V

Make	Model	Type	Year
FORD	Kuga 2.5	[HYDB]	01.2008-
FORD	Kuga 2.5 4x4	[HYDB]	01.2008-12.2012
VOLVO	C30 2.0 D3	[D5204T5]	01.2010-12.2012
VOLVO	C30 2.0 D4	[D5204T]	01.2010-12.2012
VOLVO	C30 2.4	[B5244S4]	01.2006-
VOLVO	C30 2.4 D5	[D5244T..]	01.2006-12.2010
VOLVO	C30 2.5 T5	[B5254T3]	01.2006-12.2012
VOLVO	C30 2.5 T5	[B5254T7]	01.2006-12.2012
VOLVO	C70 2.0 D3	[D5204T5]	01.2010-
VOLVO	C70 2.0 D4	[D5204T]	01.2010-
VOLVO	C70 2.4	[B5244S4]	01.2006-
VOLVO	C70 2.4	[B5244S5]	01.2006-
VOLVO	C70 2.4 D5	[D5244T]	01.2006-
VOLVO	C70 2.5 T5	[B5254T3]	01.2006-12.2007
VOLVO	C70 2.5 T5	[B5254T7]	01.2007-
VOLVO	S40 2.4	[B5244S4]	01.2006-
VOLVO	S40 2.4	[B5244S5]	01.2006-
VOLVO	S40 2.4 D5	[D5244T8]	01.2006-
VOLVO	S40 2.5 T5	[B5254T3]	01.2007-
VOLVO	S40 2.5 T5	[B5254T7]	01.2007-
VOLVO	S40 2.5 T5 AWD	[B5254T3]	01.2006-
VOLVO	S40 2.5 T5 AWD	[B5254T7]	01.2006-
VOLVO	V50 2.0 D3	[D5204T5]	01.2010-12.2012
VOLVO	V50 2.0 D4	[D5204T]	01.2010-12.2012
VOLVO	V50 2.4	[B5244S4]	01.2006-
VOLVO	V50 2.4	[B5244S5]	01.2006-
VOLVO	V50 2.4 D5	[D5244T..]	01.2006-
VOLVO	V50 2.5 T5	[B5254T3]	01.2007-
VOLVO	V50 2.5 T5	[B5254T7]	01.2007-
VOLVO	V50 2.5 T5 AWD	[B5254T3]	01.2007-
VOLVO	V50 2.5 T5 AWD	[B5254T7]	01.2007-
