Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 122.27 including GST
NZ$ 106.32 excluding GST
or four payments of $30.57
with
Learn More
each
SS9102S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
S9289S AZE4189 AZF4577 AZE4169 AZE4176 AZE4253 AZE4261 AZE4266 AZE4280 AZE4287 11.131.300 11.131.751 11.131.802 11.131.885 11.132.180 11.132.227 11.132.279 11.132.360 11.132.397Specifications

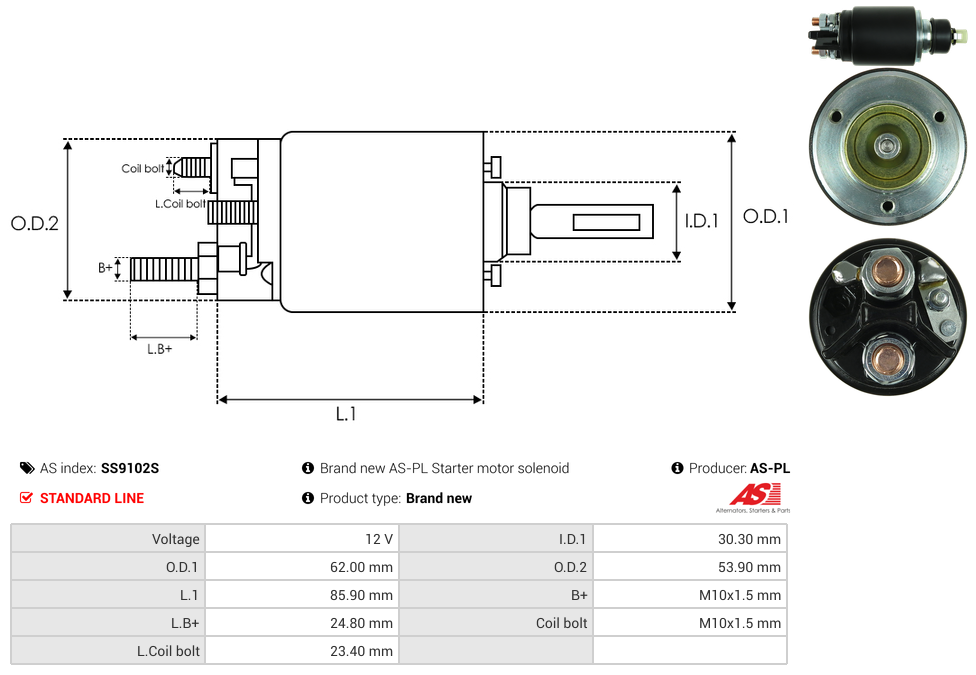

| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 23.40 mm |
| Inside Diameter (I.D.1) | 30.30 mm |
| L.B+ | 24.80 mm |
| Length (L.1) | 85.90 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 62 mm |
| Outside Diameter (O.D.2) | 53.90 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Reference Information
| 16.915.719 | ISKRA / LETRIKA |
| MSX 1111 | MAHLE |
| MSX1111 | MAHLE |
| SOL79235 | ELECTROLOG |
| SSI4577 | KRAUF |
| UD43648SS | AS-PL |
Video/Publications
S9233 AZE4169 11.132.279 AZE4287 AZE4176 AZE4253 11.132.227 AZE4189 AZE4266 11132402 AZE4261 11.132.397 11.132.360 AZE4280 11.132.180 AZF4577 11.131.802 S9330S 11.131.885 11.131.300 11.131.751 S9289S S9888SView your shopping basket or Browse other items in Starter Solenoid.
