Associated Numbers
11131430 AZF4115Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
Coil Bolt Length | 21 mm |
L.B+ | 22.2 mm |
Length (L.1) | 85.7 mm |
Outside Diameter (O.D.1) | 60.8 mm |
Outside Diameter (O.D.2) | 53.7 mm |

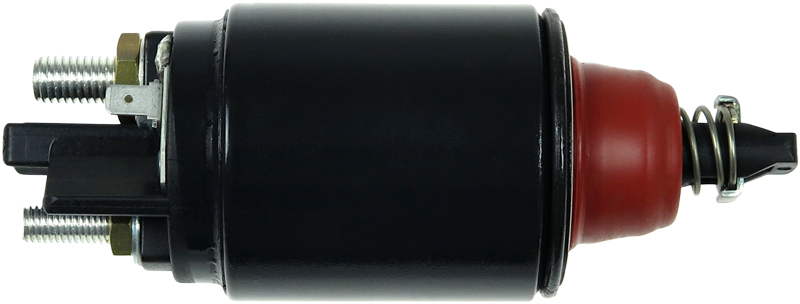

Type | Solenoid |
Unit Type | ISKRA / LETRIKA |
Voltage | 12 V |
Reference Information
MSX 16.908.334 UD809668(LETRIKA)SS 72738774 60-23-15020 785KIT MAHMSX785KIT SOL79104 MSX785Video/Publications
AZF4115 MSX 16.908.334 UD809668(LETRIKA)SS 72738774 60-23-15020 785KIT 11131430 MAHMSX785KITAdd Your Number
