Associated Numbers
11132342 AZJ3481 IS0030Specifications
B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
Coil Bolt Length | 18.8 mm |
Inside Diameter (I.D.1) | 30 mm |
L.B+ | 23.8 mm |
Length (L.1) | 85.5 mm |
Outside Diameter (O.D.1) | 60.8 mm |
Outside Diameter (O.D.2) | 54 mm |

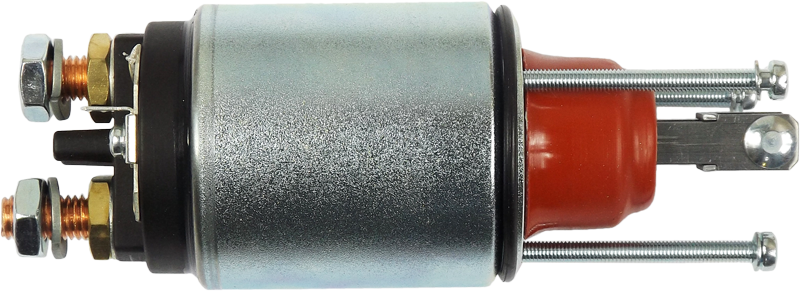

Type | Solenoid |
Unit Type | ISKRA / LETRIKA |
Voltage | 24 V |
Reference Information
72739263 995KIT SOL79176 MSX 995 UD11961(LETRIKA)SS 16.915.046Video/Publications
72739263 995KIT MSX 995 AZJ3481 UD11961(LETRIKA)SS 16.915.046 IS0030 11132342Add Your Number
