Associated Numbers
S9144 S9087 11131605 11131606 11131696 11131761 AZE4150 AZE4151 AZE4159 AZE4170Specifications

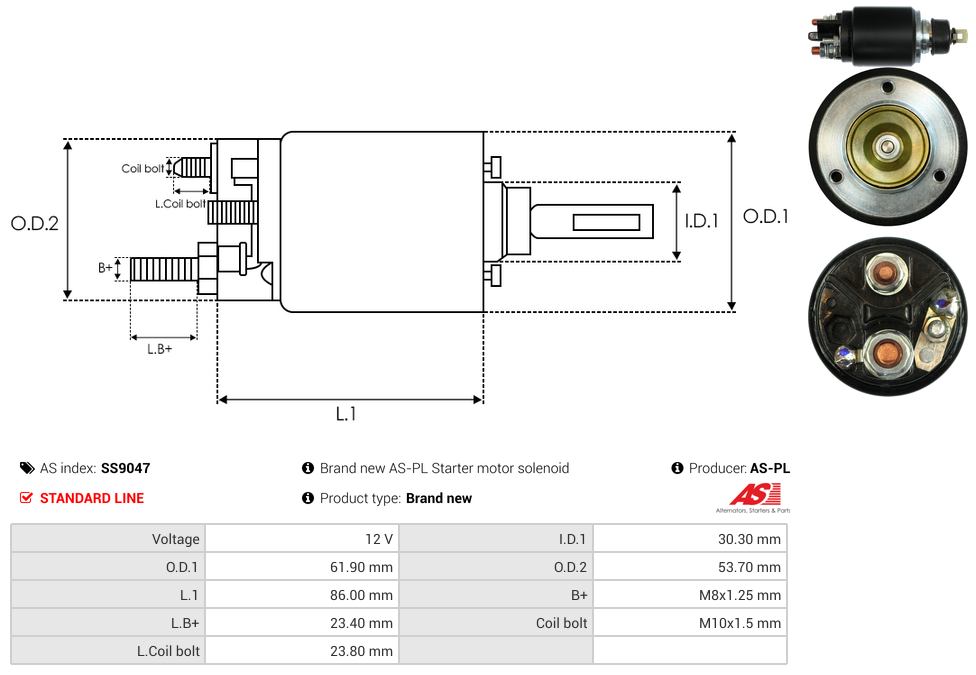

B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
Coil Bolt Length | 23.8 mm |
Inside Diameter (I.D.1) | 30.3 mm |
L.B+ | 23.4 mm |
Length (L.1) | 86 mm |
Outside Diameter (O.D.1) | 61.9 mm |
Outside Diameter (O.D.2) | 53.7 mm |
Type | Solenoid |
Unit Type | PERKINS |
Voltage | 12 V |
Reference Information
16.90.7979 UD00810SS MSX582 MAHMSX582KIT SS9047 SOL79085 SSI4172 72738195 SSI9172Video/Publications
AZE4159 UD00810SS AZE4214 11131605 11131606 MAHMSX582KIT S9087 SSI4172 S9144 AZE4151 AZE4150 11131696 S9172 11131761 AZE4170 16.90.7979 SS9047 72738195 S9302S SSI9172Add Your Number
