Associated Numbers
S9022 123708002 S9022 123708002Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18.4 mm |
| Inside Diameter (I.D.1) | 24.5 mm |
| L.B+ | 23.9 mm |
| Length (L.1) | 68.4 mm |
| Outside Diameter (O.D.1) | 55.5 mm |
| Outside Diameter (O.D.2) | 54.4 mm |

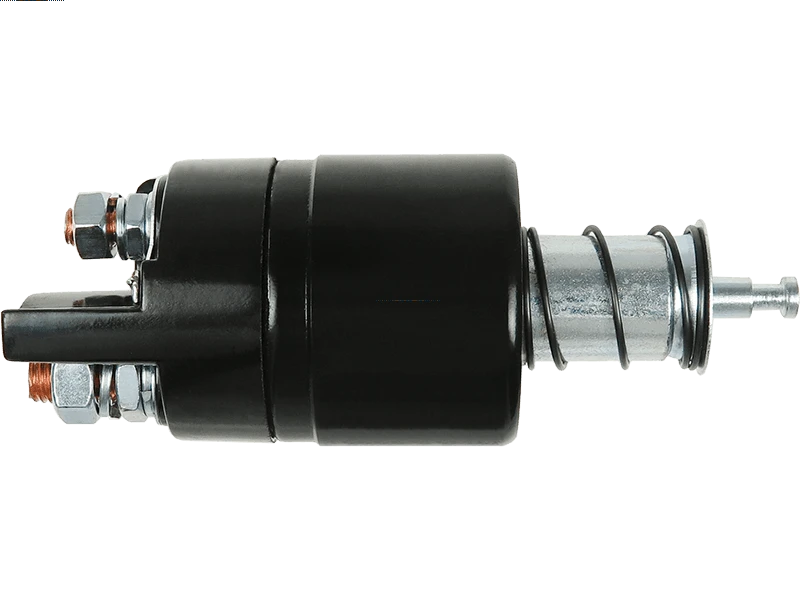

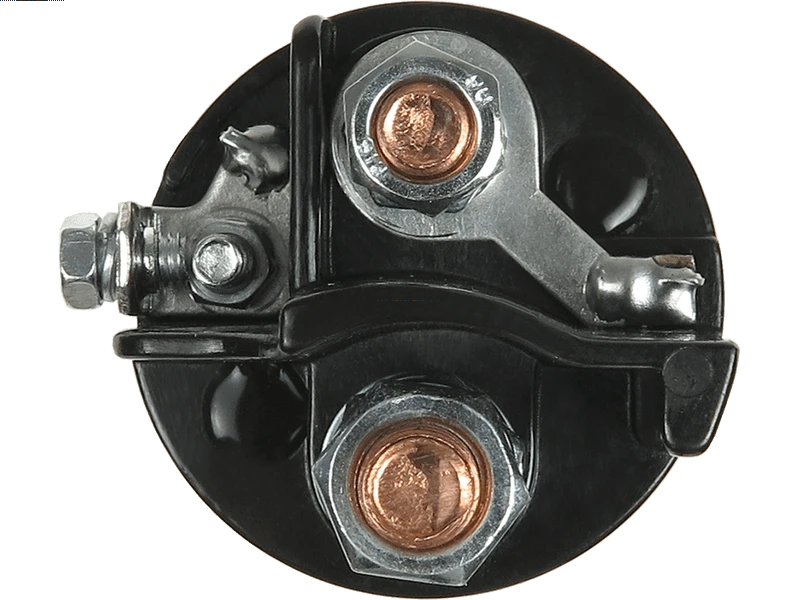

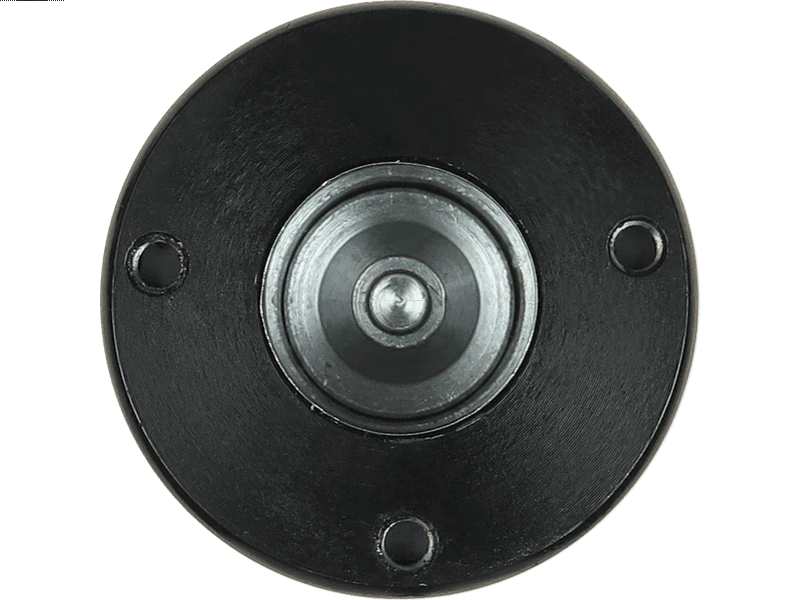

| Type | Solenoid |
| Unit Type | OTHER |
| Voltage | 12 V |
