Associated Numbers
M9T82571 M009T82571 M9T82571 M009T82571Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 38 mm |
| Inside Diameter (I.D.1) | 26 mm |
| L.B+ | 38 mm |
| Length (L.1) | 118.5 mm |
| Outside Diameter (O.D.1) | 65.5 mm |
| Outside Diameter (O.D.2) | 63.5 mm |

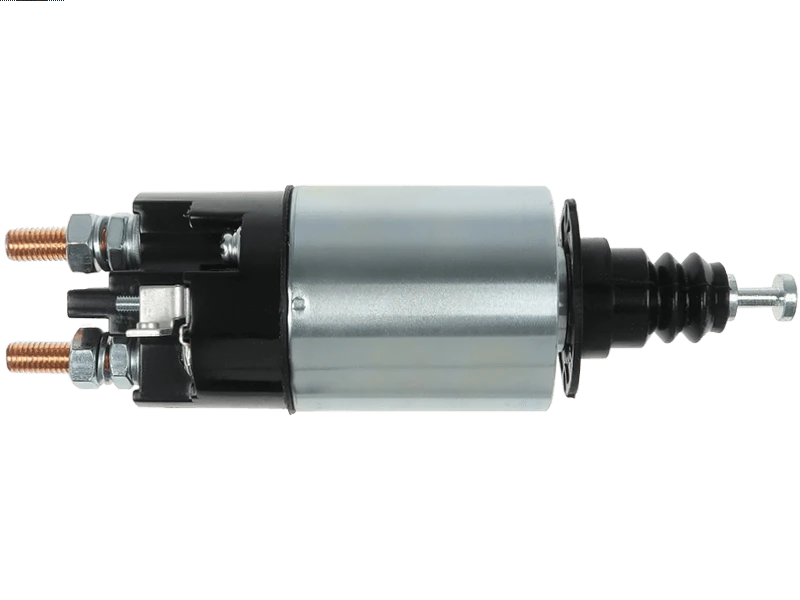

| Type | Solenoid |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Reference Information
UD00576SSVideo/Publications
UD00576SS M009T82571 M9T82571Add Your Number
