Associated Numbers
M2T85671 M2T85672 M002T85671 M002T85672 M2T85671 M2T85672 M002T85671 M002T85672Specifications

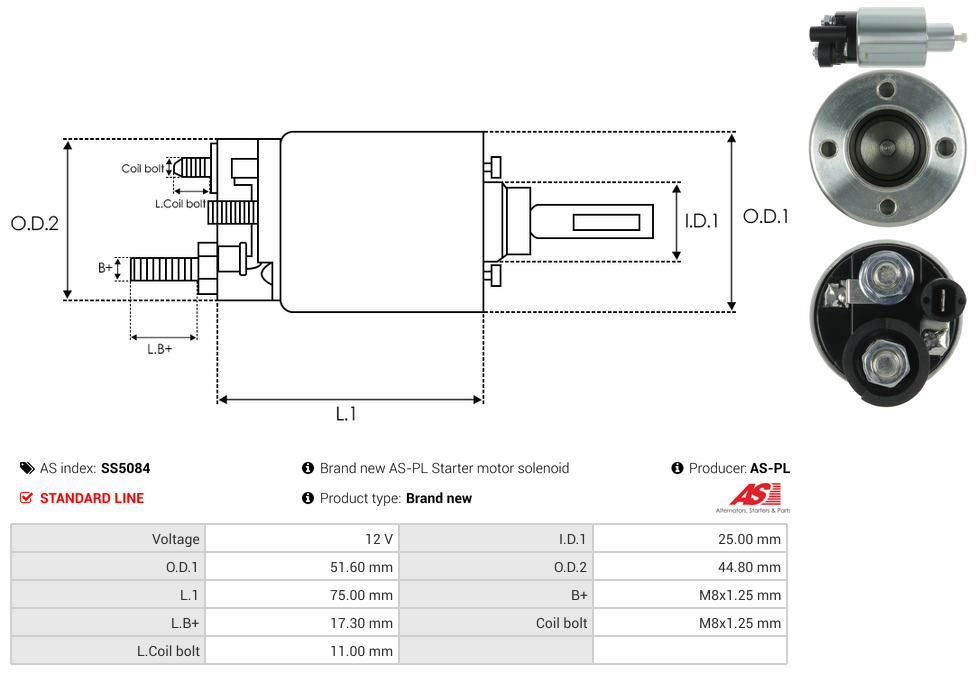

B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 11 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 17.3 mm |
Length (L.1) | 75 mm |
Outside Diameter (O.D.1) | 51.6 mm |
Outside Diameter (O.D.2) | 44.8 mm |
Type | Solenoid |
Unit Type | MITSUBA |
Voltage | 12 V |
Reference Information
SOL5044 UD00430SS 330415 UD00422SSVideo/Publications
M2T85672 M2T85671 UD00430SS M002T85671 330415 M002T85672 UD00422SSAdd Your Number
