Associated Numbers
M1T77777 M1T77777ZC M1T77781 M001T77777 M001T77777ZC M001T77781Specifications

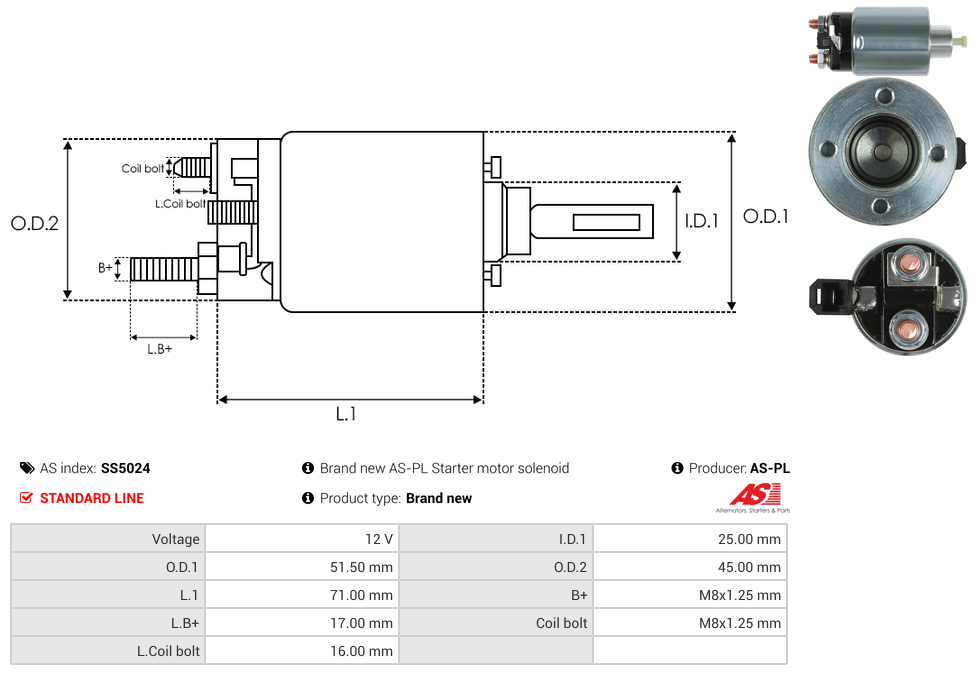

B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 16 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 17 mm |
Length (L.1) | 71 mm |
Outside Diameter (O.D.1) | 51.5 mm |
Outside Diameter (O.D.2) | 45 mm |
Type | Solenoid |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Reference Information
AME0352 ZM991 CQ2030432 UD16064SS M371X78773 227884 UD14418SS(ZM) 9.40113E+11 78773 CSO35109 SSM1982 SSO35109 227397 1015655 SSM8982 SSM9982 231982Video/Publications
940113050352 M1T77781 M1T77777 AME0352 ZM991 CQ2030432 UD16064SS M001T77777 M371X78773 M001T77781 227884 UD14418SS(ZM) M001T77777ZC 78773 CSO35109 SSM1982 SSO35109 M1T77777ZC 1015655 SSM8982 227397 SSM9982 231982Add Your Number
