Associated Numbers
1196601 S3146 600708 1196601 S3146 600708
UD13855SS AS-PL
SSA3761 KRAUF
S4001196701 MANDO
691884 VALEO
S3146 AS-PL
Reference nb
1196601 VALEO
600708 VALEO
SSA3761KR, SSA3761VA, SSA3761YJ Mando S4001196701 Valeo 691884 25183761, 600708, S0001196601
S000V1196601
Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 14.7 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 19 mm |
| Length (L.1) | 60 mm |
| Outside Diameter (O.D.1) | 54 mm |
| Outside Diameter (O.D.2) | 45 mm |

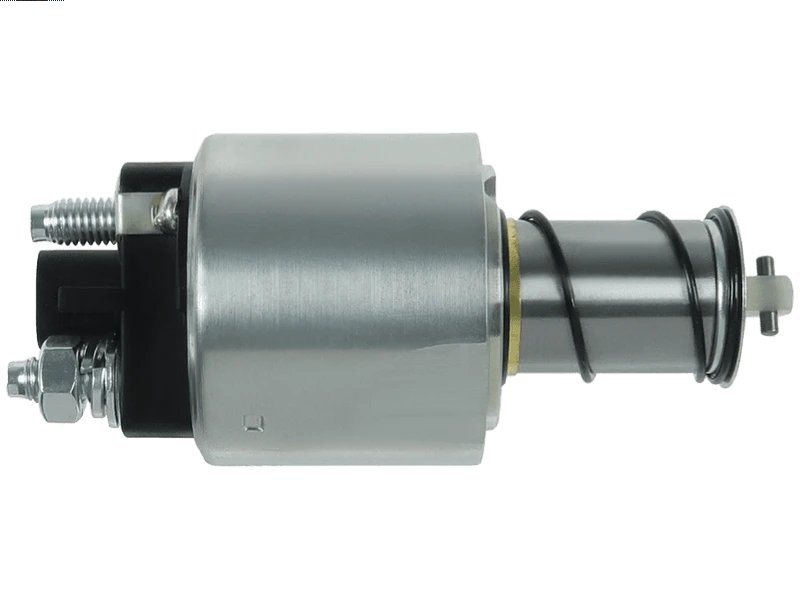

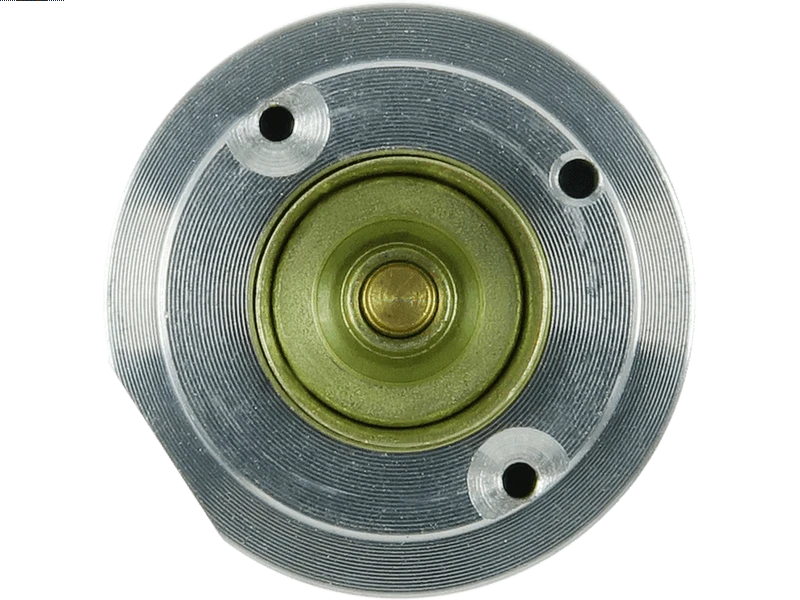

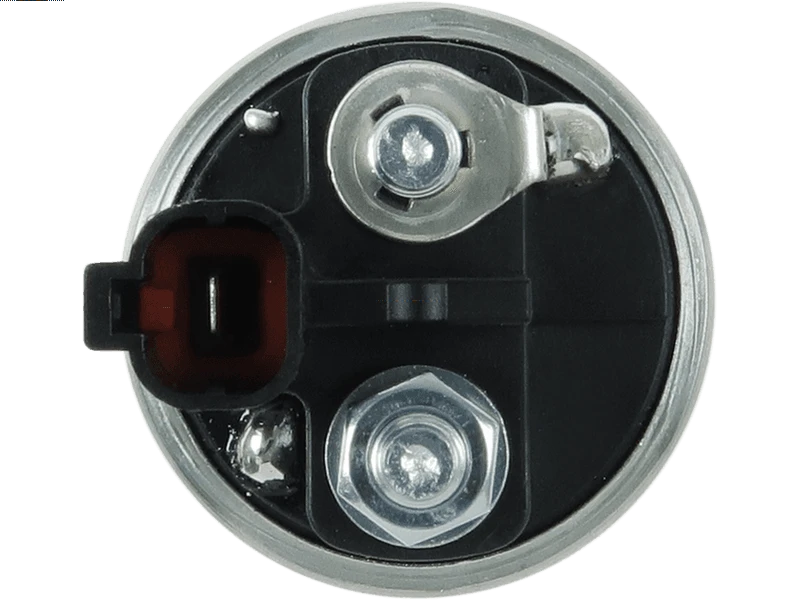

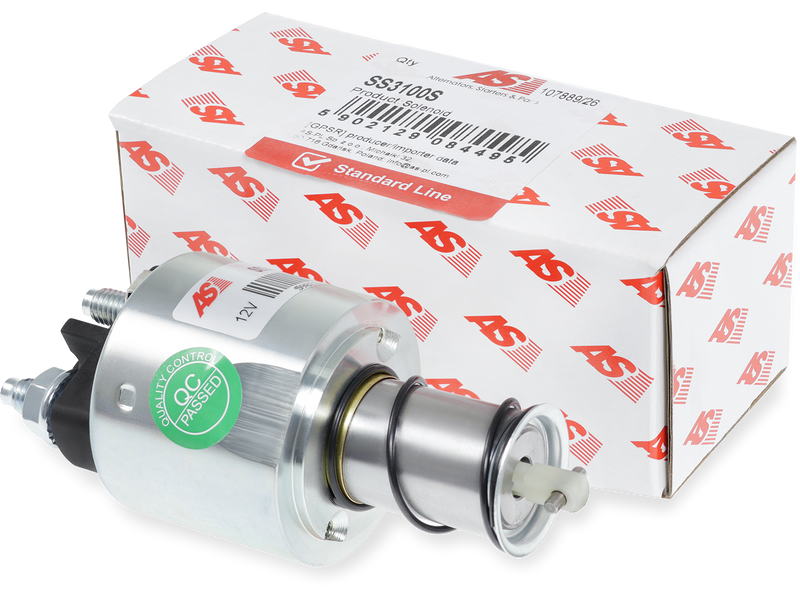

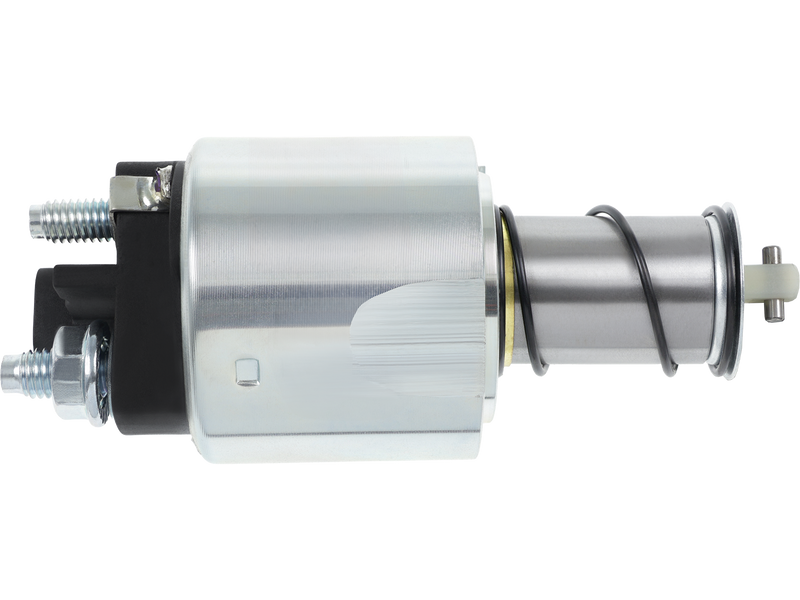

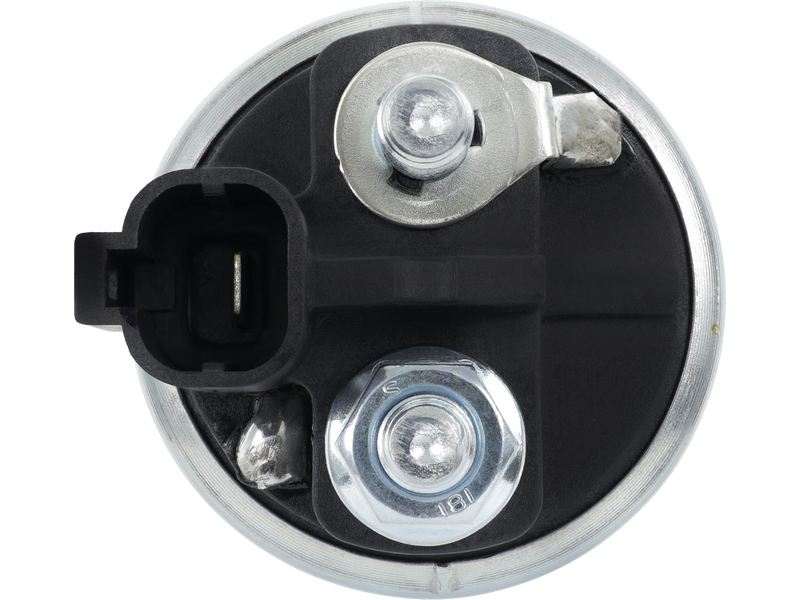

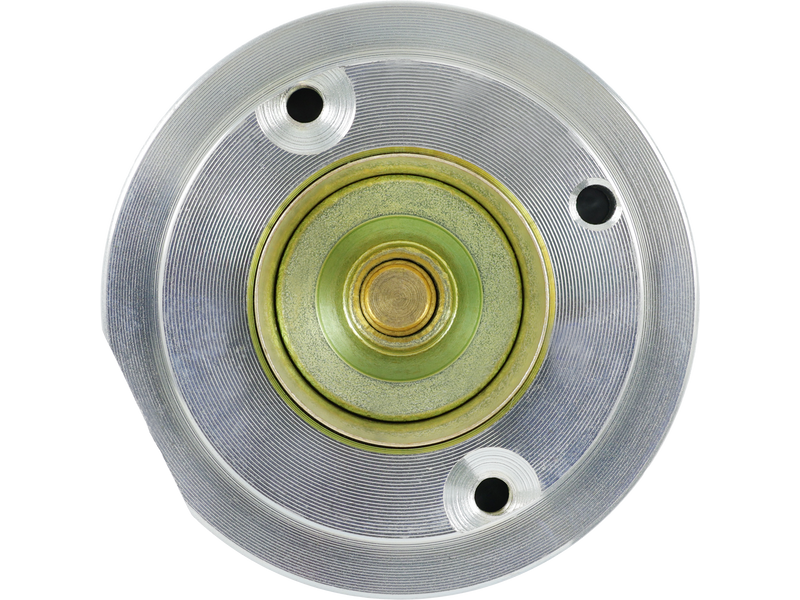

| Type | Solenoid |
| Unit Type | VALEO |
| Voltage | 12 V |
