Associated Numbers
S114906 S2053 S2070S S114951 S114905 S114938 S114943 S114943A S114906 S2053 S2070S S114951 S114905 S114938 S114943 S114943ASpecifications

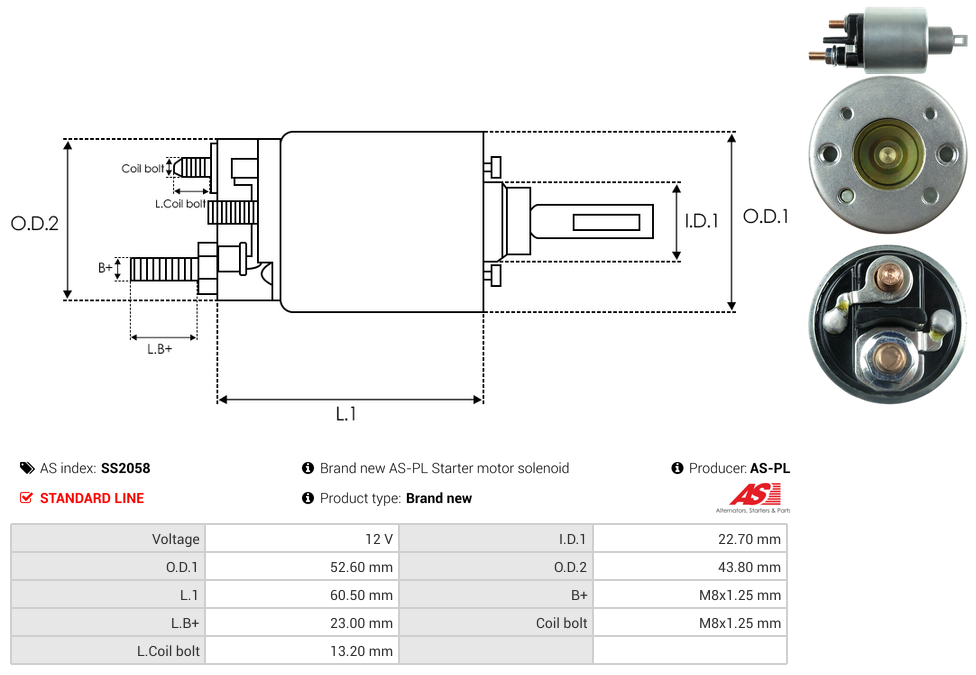

B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 13.2 mm |
Inside Diameter (I.D.1) | 22.7 mm |
L.B+ | 23 mm |
Length (L.1) | 60.5 mm |
Outside Diameter (O.D.1) | 52.6 mm |
Outside Diameter (O.D.2) | 43.8 mm |
Type | Solenoid |
Unit Type | HITACHI |
Voltage | 12 V |
Reference Information
SOL3094 239907 UD02473SS SSH9907 054.001.068 E9023 ZM3710Video/Publications
UD02473SS S2053 S114943A S2070S S114905 S114938 S114948 S114906 239907 SSH9907 054.001.068 S114951 S114943 E9023 ZM3710Add Your Number
