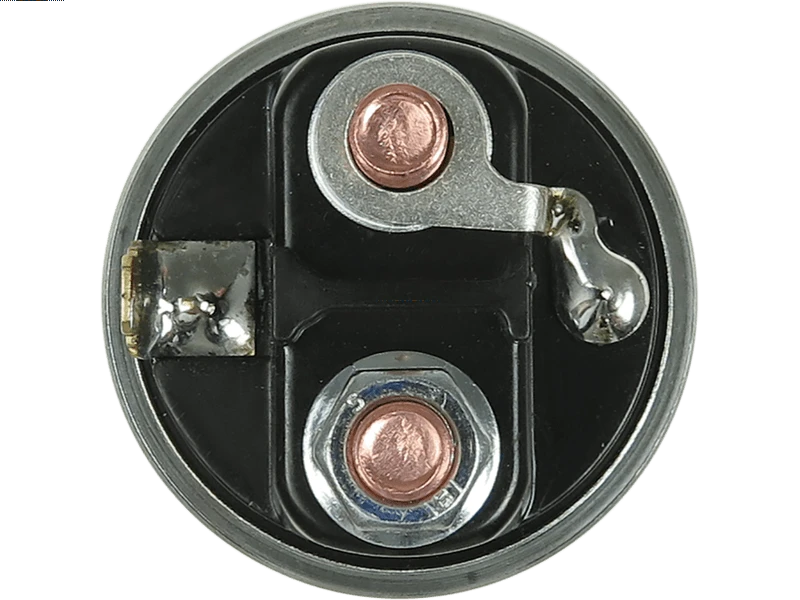

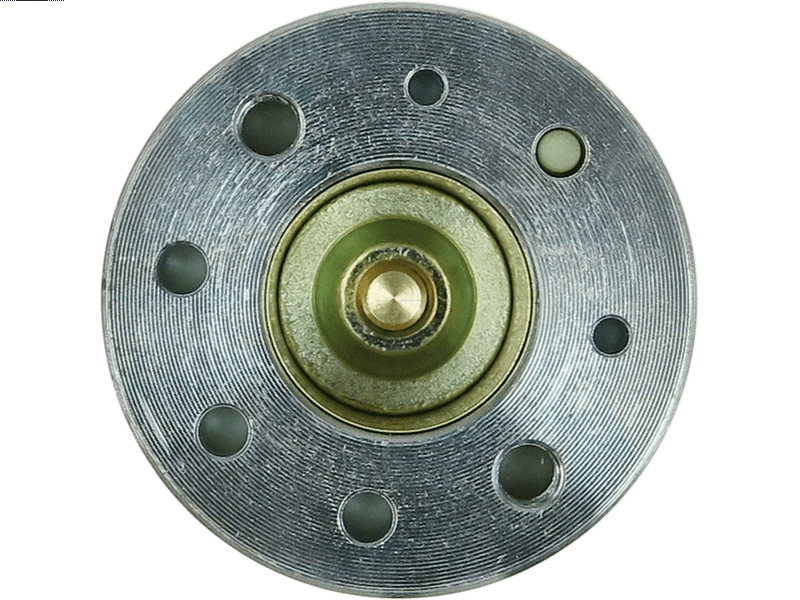

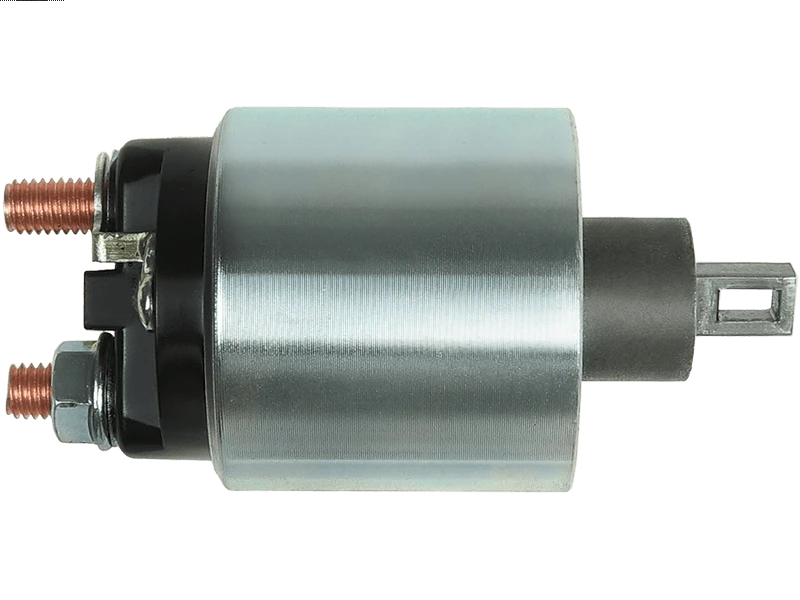

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 53.33 including GST
NZ$ 46.37 excluding GST
or four payments of $13.33
with
Learn More
each
SS2021
4
Associated Numbers
S114753 S114753C S114753 S114753CSpecifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 15 mm |
| Inside Diameter (I.D.1) | 22.50 mm |
| L.B+ | 15 mm |
| Length (L.1) | 60.60 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52.20 mm |
| Outside Diameter (O.D.2) | 44 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
| 1014466 | POWERMAX |
| 2114-57610 | HITACHI |
| 227694 | ERA |
| 231996 | CARGO |
| 60-25-15148 | WILSON |
| 6640-1414 | DIXIE |
| 66-8157 | WAI / TRANSPO |
| 66-8157-1 | WAI / TRANSPO |
| 70717 | ZEN |
| 81014466 | POWERMAX |
| 8970441450 | ISUZU |
| 940113050242 | MAGNETI MARELLI |
| AME0242 | MAGNETI MARELLI |
| CQ2030581 | CQ |
| E8103 | GHIBAUDI |
| F032231996 | CARGO |
| SND12176 | WOODAUTO |
| SNLS-6241 | UNIPOINT |
| SOL3077 | ELECTROLOG |
| SSH1996 | KRAUF |
| UD14382SS(ZM) | AS-PL |
| UD15944SS | AS-PL |
| ZM717 | ZM |
| ZN70717 | ZEN |
Video/Publications
