Associated Numbers

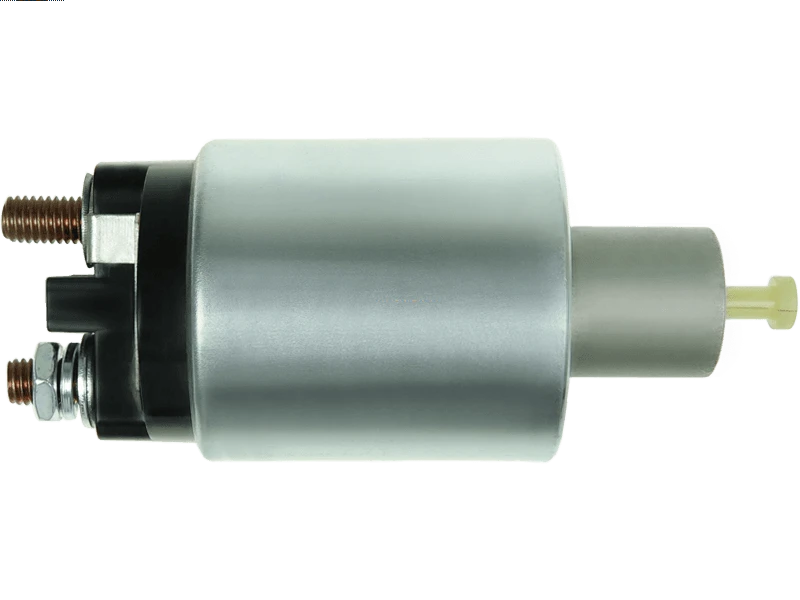

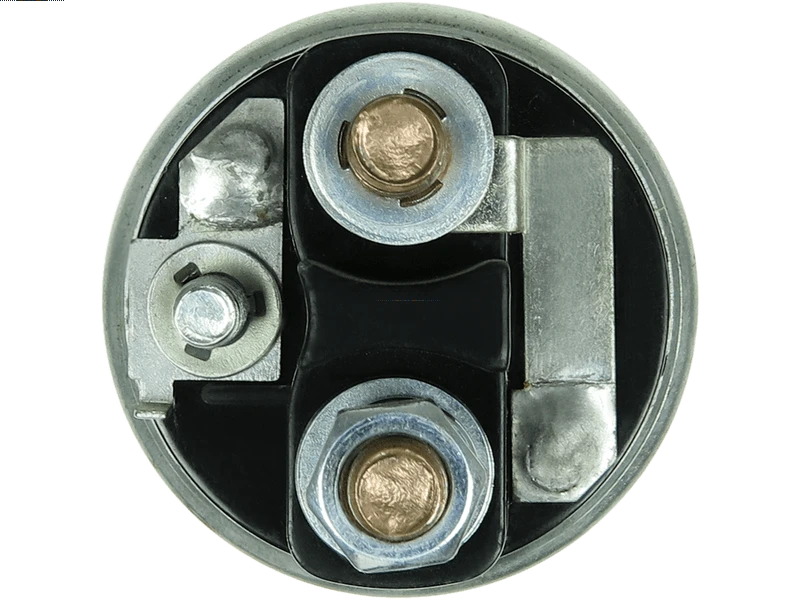

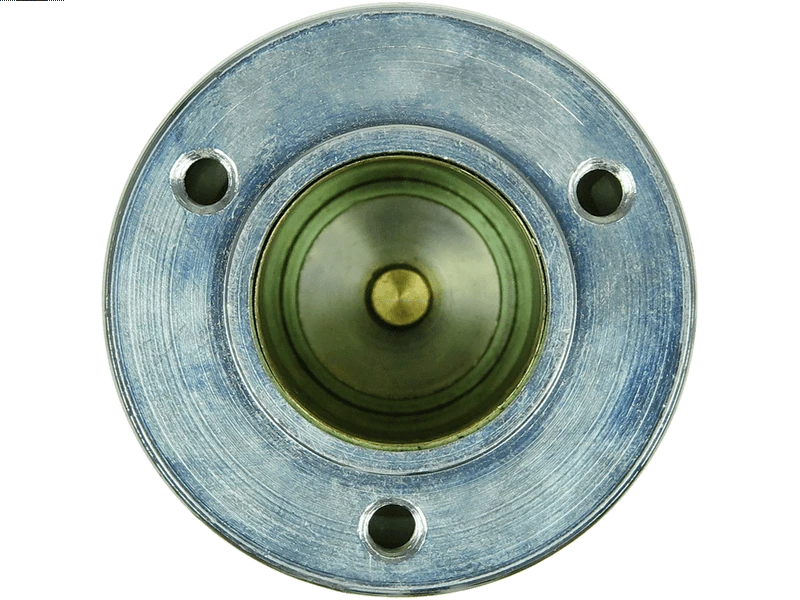

S1013 S1013Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 14.5 mm |
| Inside Diameter (I.D.1) | 24.6 mm |
| L.B+ | 15 mm |
| Length (L.1) | 73.1 mm |
| Outside Diameter (O.D.1) | 52.2 mm |
| Outside Diameter (O.D.2) | 45.8 mm |
| Type | Solenoid |
| Unit Type | DELCO |
| Voltage | 12 V |
