Associated Numbers

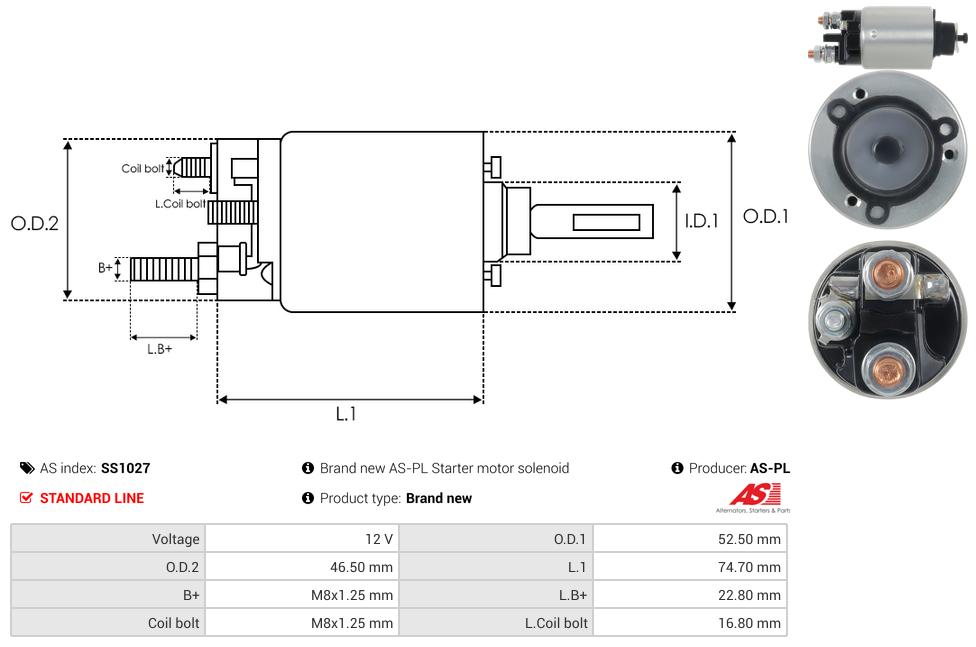

8000048 S9067 8000048 S9067Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 16.8 mm |
L.B+ | 22.8 mm |
Length (L.1) | 74.7 mm |
Outside Diameter (O.D.1) | 52.5 mm |
Outside Diameter (O.D.2) | 45.4 mm |
Type | Solenoid |
Unit Type | DELCO |
Voltage | 12 V |
Reference Information
SSD0657 1202254 330657 66-136 SND13052 054.001.041.030Video/Publications
330657 96673023 S9067 SND13052 96831615 S1098S 8000387 8000048 S1098(DELCO) 8000337Add Your Number
