Associated Numbers
19011400 19011402 19011403 8200003 8200010 8200014 8200103 8200196 8200295 8200326 8200331 8200478 8200495 8200511Specifications

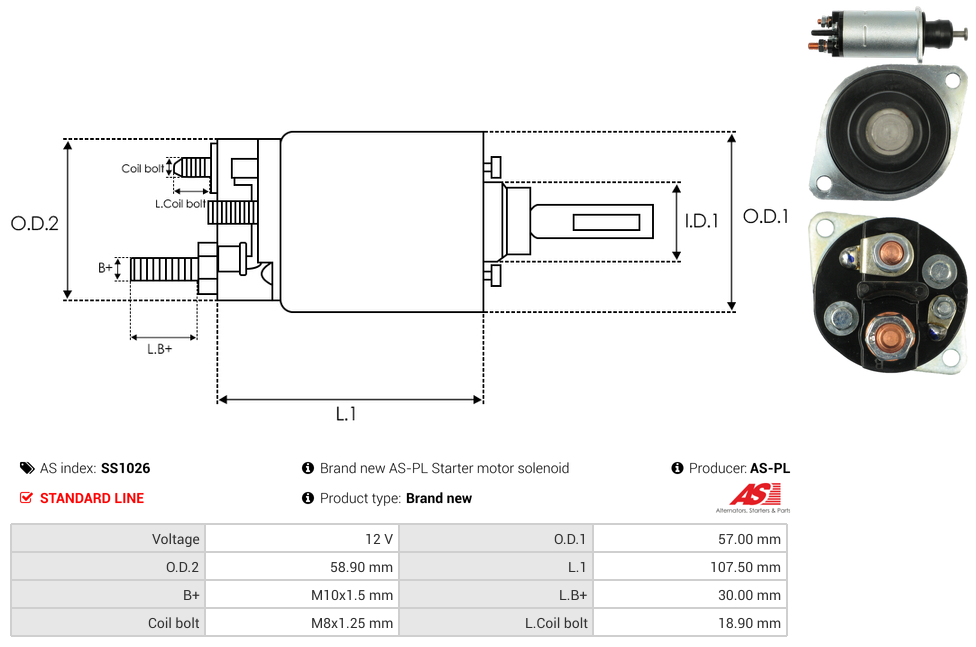

| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18.9 mm |
| L.B+ | 30 mm |
| Length (L.1) | 107.5 mm |
| Outside Diameter (O.D.1) | 57 mm |
| Outside Diameter (O.D.2) | 58.9 mm |
| Type | Solenoid |
| Unit Type | DELCO |
| Voltage | 12 V |
Reference Information
333781 SSD5838 10515838 10532389 66-158 ZM818 E9068 054.000.415.036 1987BE2004 81019223 60-01-3669 66-158-1Video/Publications
19011402 19011403 19011400 8200400 8200565 8200885 8200003 8200564 8200883 8200889 8200326 8200249 8200887 S1122 8200001 8200826 8200824 7C4511001AB 8200796 8200873 8200478 8200511 S1117 8200874 8200677 8200875 8200196 S1114 S1115 10515838 227803 8300064 8200103 8200302 8200866 8200848 8200849 8200806 10461770 10461771 8200852 10461772 8200014 8200853 8200854 8200495 8200011 8200331 8200295 8200570 8200010 8200571Add Your Number
