Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 109.83 including GST
NZ$ 95.50 excluding GST
or four payments of $27.46
with
Learn More
each
SS1025
No stock in NZ currently
No stock in NZ currently
Associated Numbers
10479605 10479612 10479623 10479629 1113272 1113277 1113291Specifications

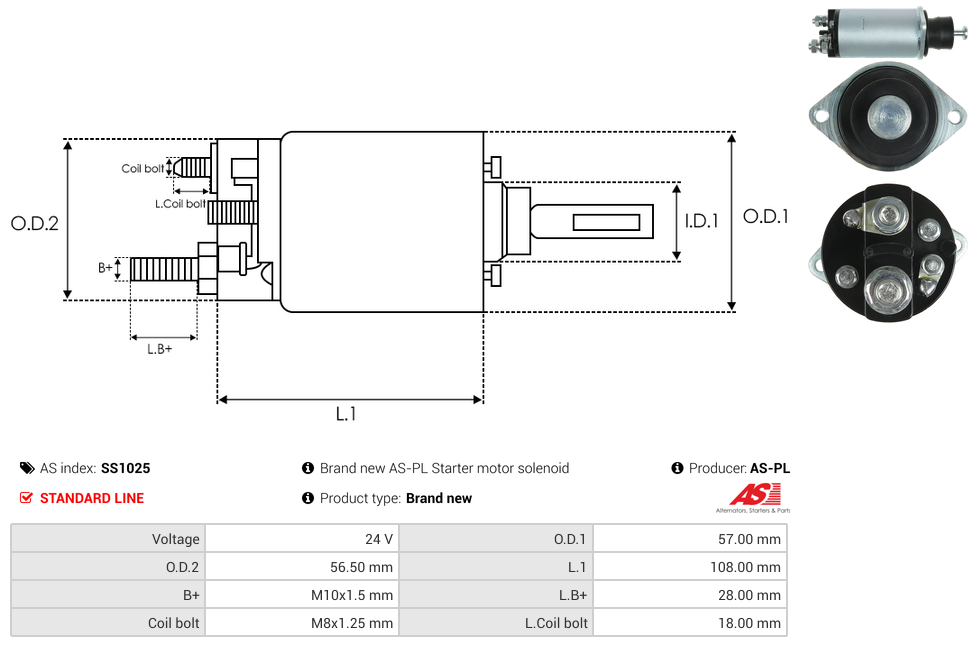

| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18 mm |
| L.B+ | 28 mm |
| Length (L.1) | 108 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 57 mm |
| Outside Diameter (O.D.2) | 56.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | DELCO |
| Voltage | 24 V |
Reference Information
| 1010130 | POWERMAX |
| 10457116 | DELCO |
| 10483810 | DELCO |
| 10483811 | DELCO |
| 135521 | CARGO |
| 227342 | ERA |
| 227740 | ERA |
| 227796 | ERA |
| 6601-2822 | DIXIE |
| 66-8408 | WAI / TRANSPO |
| 81010130 | POWERMAX |
| 940113050301 | MAGNETI MARELLI |
| AME0301 | MAGNETI MARELLI |
| CQ2030147 | LAUBER |
| CQ2030457 | CQ |
| E/1016 | ORME |
| E5363 | GHIBAUDI |
| F032135521 | CARGO |
| SND1269 | WOODAUTO |
| SOL2629 | ELECTROLOG |
| SSD5521 | KRAUF |
| SSD9521 | KRAUF |
| UD10550SS | AS-PL |
| ZM810 | ZM |
Video/Publications
10479605 10479612 10479622 10479623 10479629 10479652 10479654 10479655 1113272 1113277 1113291 8200064 8200921 S1232SView your shopping basket or Browse other items in Starter Solenoid.
