Associated Numbers
S0534 F002G20658 S0534 F002G20658Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18.6 mm |
| Inside Diameter (I.D.1) | 26 mm |
| L.B+ | 39.6 mm |
| Length (L.1) | 68.7 mm |
| Outside Diameter (O.D.1) | 52.4 mm |
| Outside Diameter (O.D.2) | 45.6 mm |

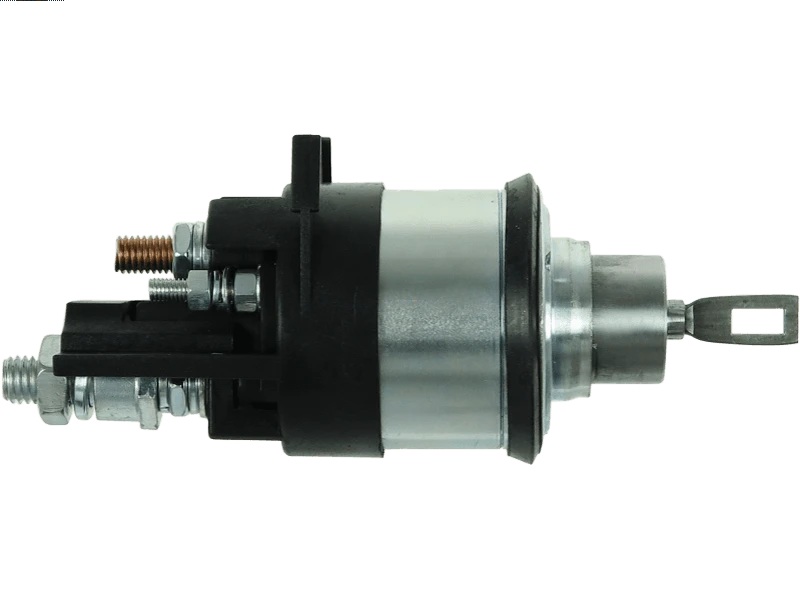

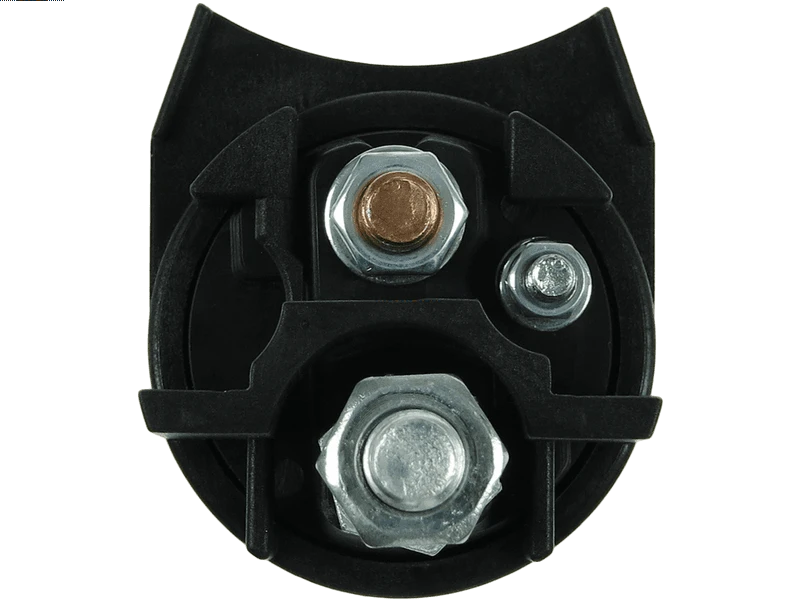

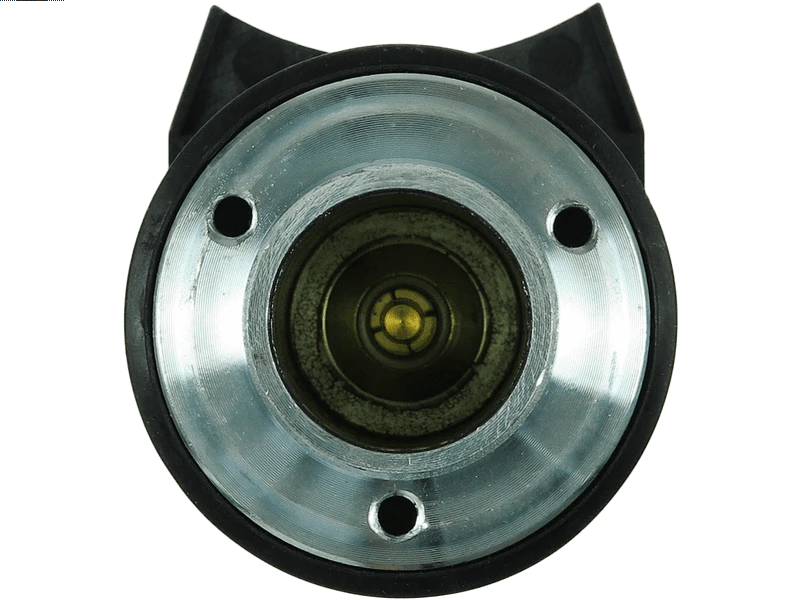

| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
UD42593SS F002G20682 6660-2511 SSB2065Video/Publications
S0534 UD42593SS F002G20658 F002G20682 6660-2511 SSB2065Add Your Number
