Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 79.35 including GST
NZ$ 69.00 excluding GST
or four payments of $19.84
with
Learn More
each
SS0134
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

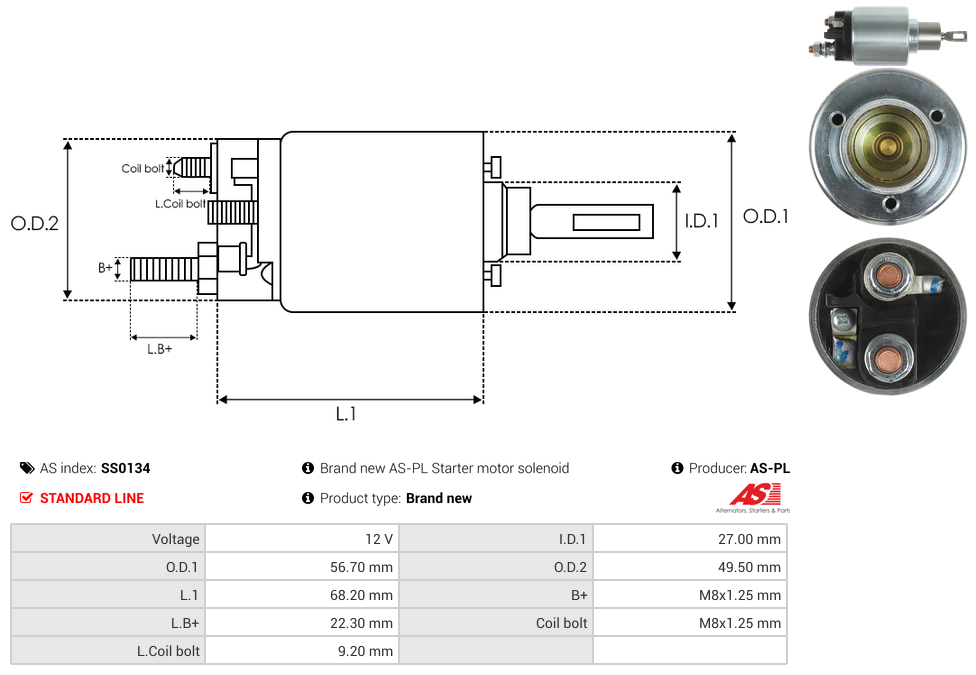

0001218025 0001218029 0001218107 0001218109 0001218160 B001233017 B001233112 B001233168 B001233174Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 9.2 mm |
| Inside Diameter (I.D.1) | 27 mm |
| L.B+ | 22.3 mm |
| Length (L.1) | 68.2 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 56.7 mm |
| Outside Diameter (O.D.2) | 49.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
| 0001529010 | MERCEDES |
| 0331303103 | BOSCH |
| 1013208 | POWERMAX |
| 139068 | CARGO |
| 227092 | ERA |
| 81013208 | POWERMAX |
| 940113050392 | MAGNETI MARELLI |
| A0001529010 | MERCEDES |
| AME0392 | MAGNETI MARELLI |
| CQ2030055 | LAUBER |
| E3711 | GHIBAUDI |
| F032139068 | CARGO |
| SND12577 | WOODAUTO |
| SOL1316 | ELECTROLOG |
| SSB9068 | KRAUF |
| UD00151SS | AS-PL |
| UD14428SS(ZM) | AS-PL |
| UD16134SS | AS-PL |
| ZM1674 | ZM |
Video/Publications
