Associated Numbers
0001107522 0001107493 0001107522 0001107493Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 7 mm |
| Inside Diameter (I.D.1) | 24.4 mm |
| L.B+ | 15.2 mm |
| Length (L.1) | 70.6 mm |
| Outside Diameter (O.D.1) | 52.5 mm |
| Outside Diameter (O.D.2) | 45.3 mm |

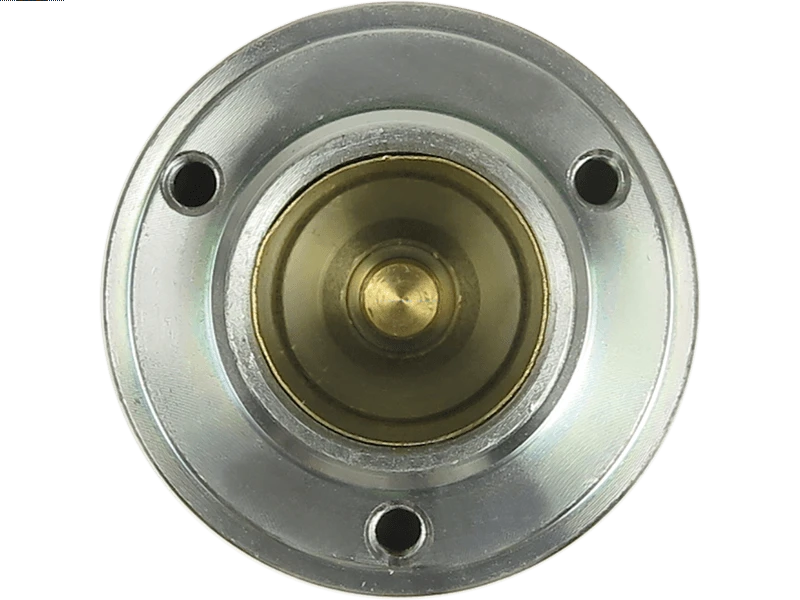

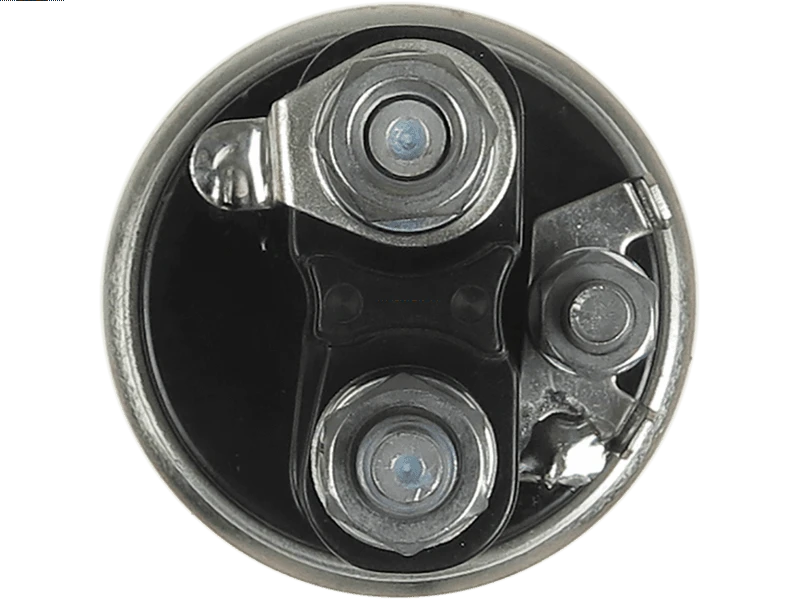

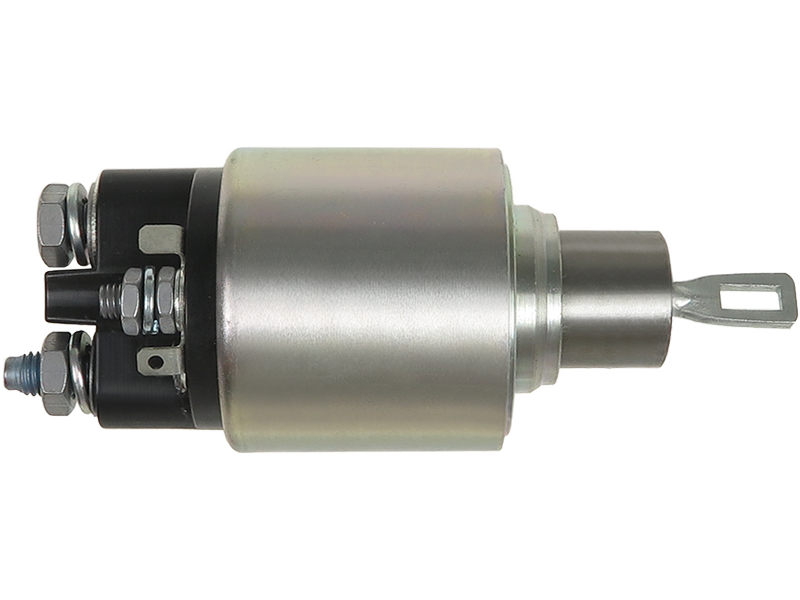

| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
SSB8526 SND12653 BOS2339304526 9199522 2339304526 SSO10225.0 20301522BN 66-91274 CSO10225AS SOL1115 335336 054.000.727.010Video/Publications
SSB8526 1107521 0001107522 0001107521 9199522 1107522 1107495 1107494 0001107495 0001107494 SSO10225.0 0001107493 0001107492 1107493 1107492 054.000.727.010 335336 SND12653 BOS2339304526 2339304526 20301522BN S0295 66-91274 CSO10225ASAdd Your Number
